Allows to increase the current load capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

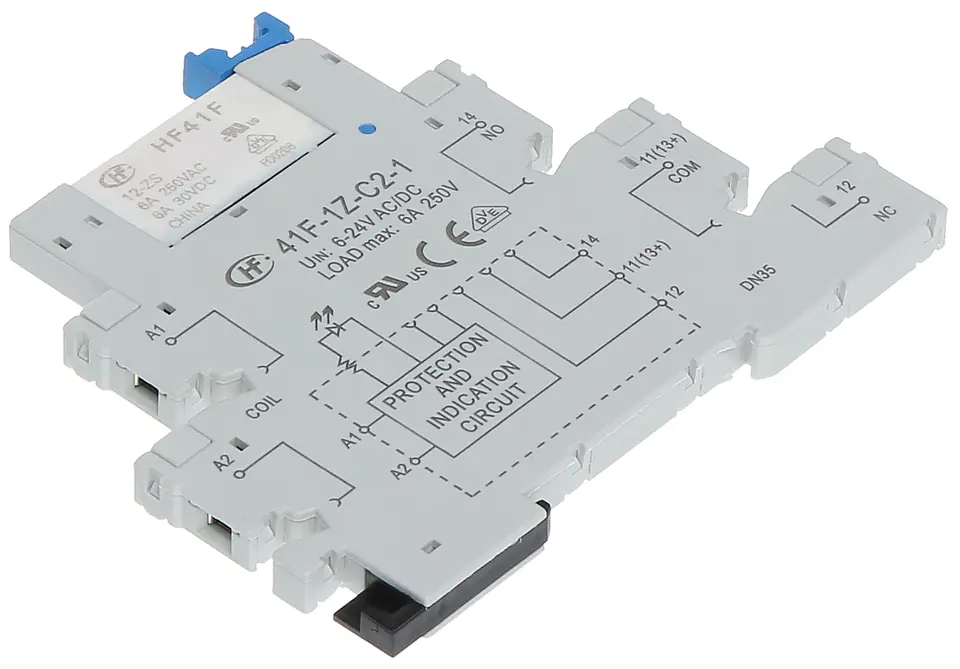

RELAY MODULE PK-41F-1Z-C2-1/12V
€16.55
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- PK-41F-1Z-C2-1/12V / 5902887037122
Share this product:
Specification
| -40 °c ... 80 °c: | Operating temperature: |
|---|---|
| 0.03 kg: | Scales: |
| 1: | Number of relay outputs: |
| 1 x no/nc: | Egress: |
| 12 vdc: | Power: |
| 14.2 ma @ 12 v dc: | Current consumption: |
| 2 years: | Warranty: |
| 6 a (max), 30 v dc / 250 v ac (max): | Contact load capacity: |
| 88 x 71 x 6 mm: | Dimensions: |
| Mounting - din rail (ts-35) led signaling: | Selected features: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
