Esp12-4R-MV module allows wireless control of 4 relaysCommunication with the device is via Wi-Fi interface
Arduino IDE or Eclipse package tools can be used to program the module Programming is done via the UART TTL serial port

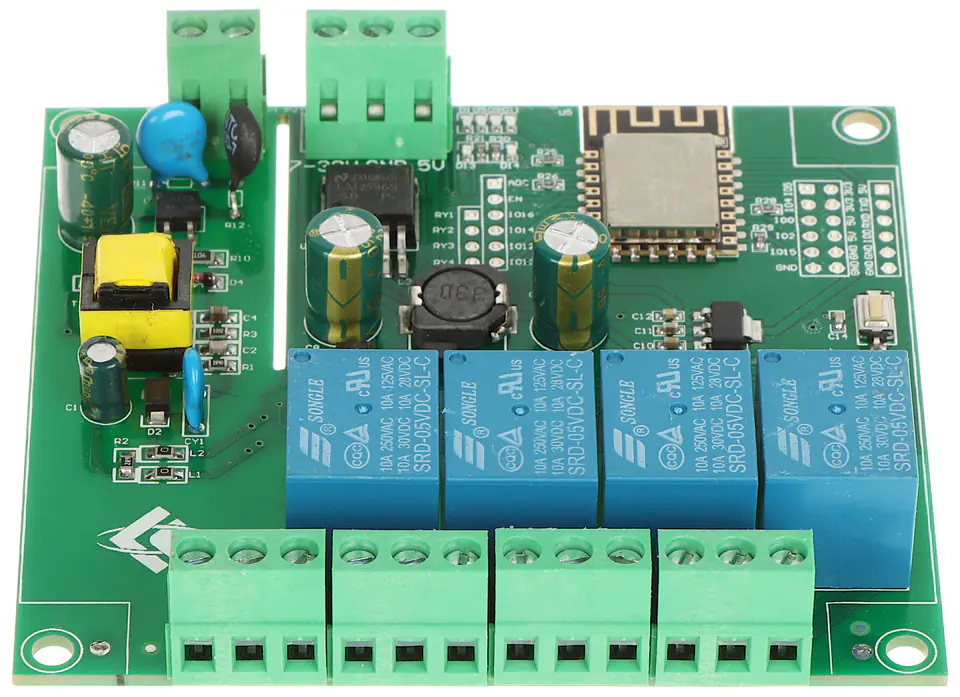

RELAY MODULE ESP12-4R-MV Wi-Fi
€15.04
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- ESP12-4R-MV / 5902887067297
Share this product:
Specification
| Contact load capacity:: | 10 A / 250 V AC ,10 A / 30 V DC |
|---|---|
| Control:: | Wi-Fi |
| Dimensions:: | 93 x 90 x 19 mm |
| Egress:: | 4 x NO/NC |
| Number of relay outputs:: | 4 pcs. |
| Power:: | 7 V ... 30 V DC, 5 V DC, 90 V ... 250 V AC(no power supply included) |
| Protocol:: | IEEE 802.11 b/g/n/e/i, Wi-Fi Direct (P2P), TCP, UDP |
| Scales:: | 0.09 kg |
| Selected features:: | LED signaling Programming using Arduino IDE or Eclipse tools The module can be used as part of IoT (Internet of Things) systems The Wi-Fi module works in the 2.4 GHz band |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
