Allows to increase the current load capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

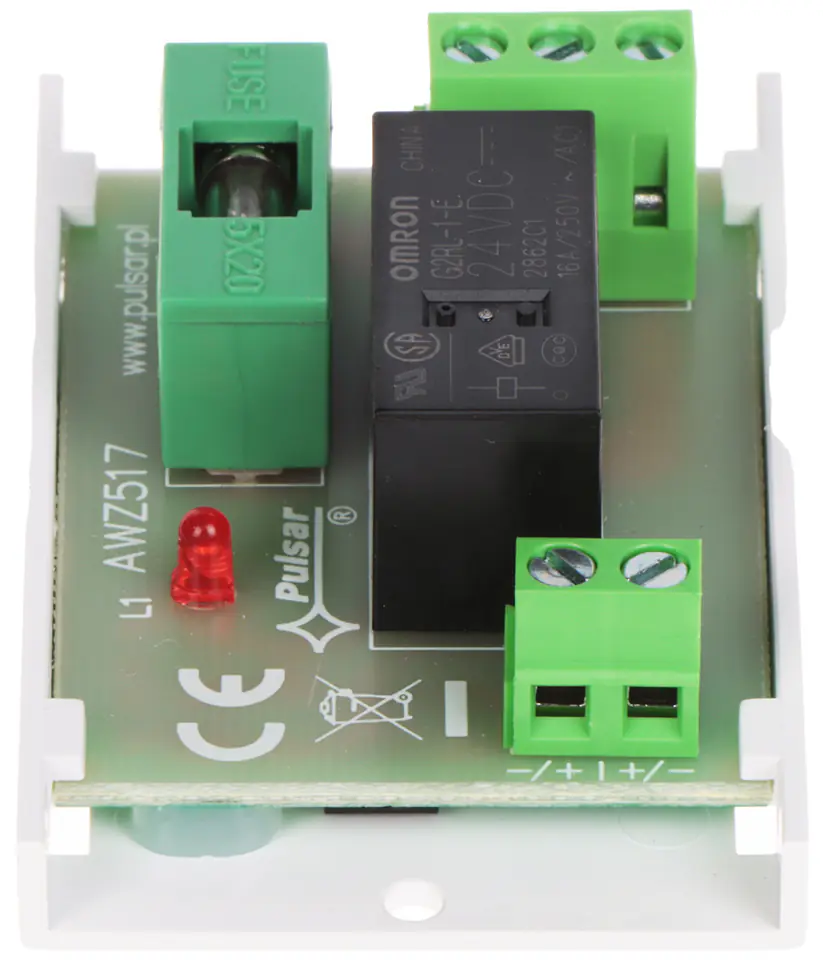

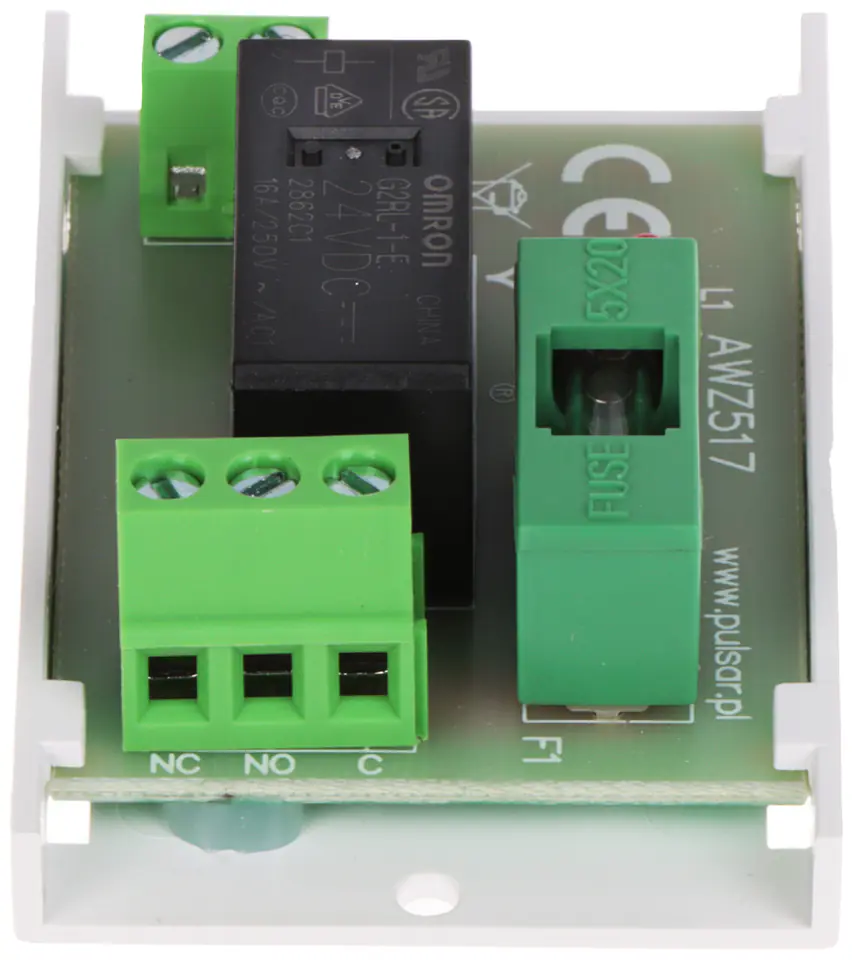

RELAY MODULE AWZ-517
€9.30
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- AWZ-517 / 5901643194314
Share this product:
Specification
| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| 0.04 kg: | Scales: |
| 1: | Number of relay outputs: |
| 1 x rel-c/no/nc: | Egress: |
| 16.7 ma for each relay at 24 v dc: | Current consumption: |
| 2 years: | Warranty: |
| 20 ... 32 vac/dc: | Power: |
| 6 a (max), 30 v dc / 250 v ac (max): | Contact load capacity: |
| 70 x 43 x 23 mm: | Dimensions: |
| Led signaling fuse fuse time-lag (5/20mm) 6.3 a: | Selected features: |
| Pulsar: | Manufacturer / Brand: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
