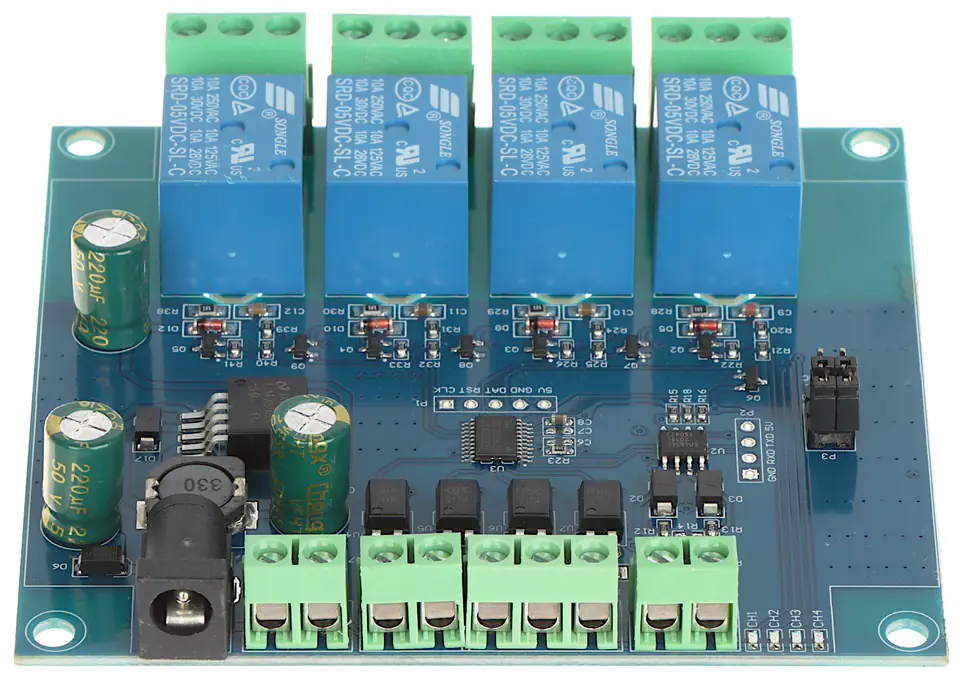

RELAY MODULE 4R-D7 Modbus RTU

€12.66

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: 4R-D7 / 5902887067327

Specification

Baud:	4800 / 9600 / 19200 bps (default: 9600 bps)
Contact rating:	10 A / 250 V AC ,10 A / 30 V DC
Control:	RS-485 / UART TTL
Dimensions:	93 x 91 x 20 mm
Egress:	4 x NO/NC
Number of inputs:	4 pcs.
Number of relay outputs:	4 pcs.
Power:	7 volts ... 24 V DC (no power adapter included)
Protocol:	Modbus RTU
Scales:	0.092 kg
Selected features:	LED signaling Control inputs protected by optocouplers, which allows the use of control signals with voltages in the range of 3.3 V DC ... 30 V DC The input of the UART interface is adapted for mounting goldpins for signals with voltages adapted to the TTL level (3.3 V DC / 5 V DC) Possibility to configure the device address (remembering the settings after a power outage) in the range of 1 - 255 (default address 255) Possibility to set relay delay (base unit: 0.1 s, value range: 0.1 s ... 6553.5 s) Input voltage reverse polarity protection
Warranty:	2 years

The 4R-D7 module allows you to control 4 relays using the Modbus RTK protocolCommunication with the device can be done via RS-485 or UART TTL interface

In addition, the device has 4 control inputs protected by optocouplers (input voltage range: 3.3 V ... 30 V)The voltage from the control inputs is not the voltage directly supplying the relay coil

Remark! The control interface is selected using jumpers located on the boardIt is not possible to control the outputs using both communication paths at the same time

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
