DS-7604NXI-K1 IP Recorder
The DS-7604NXI-K1 network recorder was created for creating IP monitoring systems. It is responsible for capturing image and sound from up to four IP cameras. Recordings are made in the highest resolution of 4000×3000 (12Mpx) and at a speed of 25/30 frames per second for each camera. The device belongs to the latest series of AcuSense EasyIP 4.0 recorders, which have a special algorithm enabling motion detection depending on object recognition (human/vehicle) (4 channels) or facial recognition (1 channel) and comparison (2 channels). It is equipped with a single SATA interface, which allows it to use a hard drive with a maximum capacity of 10TB. It also offers direct video streaming to a TV or monitor in 4K resolution via a single HDMI connector or in Full HD quality via the VGA port.
Introducing the DS-7604NXI-K1(STD) - the perfect solution for all your IP camera input needs. By supporting up to 4-channel IP camera inputs, this device can decode video in a variety of formats, including H.265+/H.265+/H.264 video formats. Whether you need to decode 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p, this device is up to the task with an impressive decoding bandwidth of up to 40 Mbps. But it is not everything. The DS-7604NXI-K1(STD) also features Hikvision Acusense technology, which helps minimize manual effort and security costs. With this technology, you can rest assured that your security system is operating at peak performance, detecting and alerting you to potential threats with greater accuracy and efficiency. So why wait? Invest in the DS-7604NXI-K1(STD) today and enjoy the peace of mind that comes with knowing you have the best security system available.
Connectors and archiving

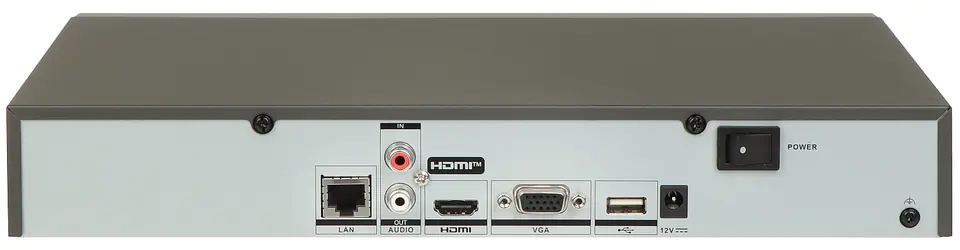

The recorder has two USB 2.0 connectors (one at the front, the other at the back), an Ethernet 1000Mbps socket, VGA (1080p) and HDMI (4K UHD) video sockets, and RCA audio sockets, which allow the recorder to be built into a sound system. The system allows you to save the surveillance image on a single hard drive with the largest possible capacity of 10TB.
Compression
H.265+ is an advanced video coding system that is the evolution of H.265/HEVC (High Efficiency Video Codec). This technology was designed specifically for monitoring systems and is based on an advanced algorithm created by Hikvision. H.265 signal coding optimizes camera functions, minimizes interference and ensures the ability to store recordings for a longer time without loss of image quality. Tests show that the new H.265+ codec reduces high-resolution video bits by approximately 67% compared to H.265, reducing the need for high bandwidth and storage space. This bit reduction leads to lower prices for users as well as greater efficiency, stability and reliability of the surveillance system.
Intelligent search of recordings and support for EasyIP cameras, VCA
The supplied recorder is highly compatible with cameras for many applications. It allows you to conduct intelligent searches and provides access to VCA functions (such as virtual crossing of lines and intrusion detection). With proper configuration, these functions can increase the sense of security and help manage the monitored space more effectively.
HikVision NVR
The recorder's menu is responsible for managing and configuring the recorder, and is powered by a reliable and state-of-the-art operating system - Linux.
Thanks to this solution, it was possible to construct a working menu that both the installer and the end user can use without any complications to adapt the monitoring system to their specific requirements.
The local menu of the recorder allows you to configure: user permissions and determine the number of users who can gain remote access to the device, recording schedule for each channel separately, select the PTZ camera control protocol and set its parameters, establish detection zones and privacy masks, and many other useful functions that facilitate management of the recorder and the entire monitoring system.
Face analysis
This tool includes a system for analyzing faces downloaded from the camera. Its main goal is to spot those who are blacklisted and sound the alarm for anyone who is not in the directory. It also allows you to search for people by their photo or name.
Motion detection 2.0
Motion Detection 2.0 offers reliable and accurate alarms that are triggered by crossing the line, intrusion and regular motion detection. Configuring an alarm does not require drawing lines or determining the size of objects. Just draw a motion detection grid (activity mask) and indicate the objects that should be monitored (vehicles, people or both).
Perimeter protection
When someone or something enters a specific zone or crosses a designated line, the system will identify the object and if it is a person or a vehicle, an alarm will be announced; otherwise it will be ignored.
AI Deep Learning Features
AcuSense technology, which is based on self-learning artificial intelligence algorithms, offers a very high false alarm filtering rate - up to 98%. This recorder can distinguish between people and vehicles, as well as events caused by animals, weather, light and even falling leaves and sorts them as false alarms, thus increasing the effectiveness of the receiver.
USB 3.0
A modern network recorder has two USB ports (1 version 2.0 on the front panel and 1 version 3.0 on the back). These ports are used to connect external devices that increase the system's capabilities and facilitate its operation. For example, you can connect a computer mouse to the USB port, which makes it easier to use the recorder's on-screen menu. Additionally, the USB port can be connected to an external storage device to copy individual fragments of video material.
Direct access on the Hik-Connect platform
This device can be connected directly to a computer or mobile device, such as a phone, via a cloud-based work system.
This gives you the advantage of being able to remotely access the camera, recorder, recordings and additional functions.
Recording is facilitated either via a web browser or via QR codes.
It is worth noting that Hikvision's P2P service means that the user does not need to perform any additional port forwarding.
Peer to Peer technology greatly facilitates access to the security system, and is particularly beneficial in the case of mobile, wireless LTE Internet.
SADP Tool
SADP offers user-friendly and free software that can be used to search for Internet-connected devices on the same network.
It provides detailed information about identified devices and also allows you to change the basic network configurations of the same devices.
Effective protection and management with Hik-Partner Pro
The Hik-Partner Pro system allows you to quickly determine whether devices are connected and functioning properly.
Notifications appear immediately when cameras or other devices are taken offline.
You can also increase sales because the system can detect problems and notify customers even before adverse effects occur.
One platform for versatile use HikCentral Professional
HikCentral Professional is a security integration application that is designed to handle multiple security issues in one user-friendly platform.
It is able to manage individual systems such as video surveillance, access control, alarm system and others, as well as connect several systems within one architecture.
