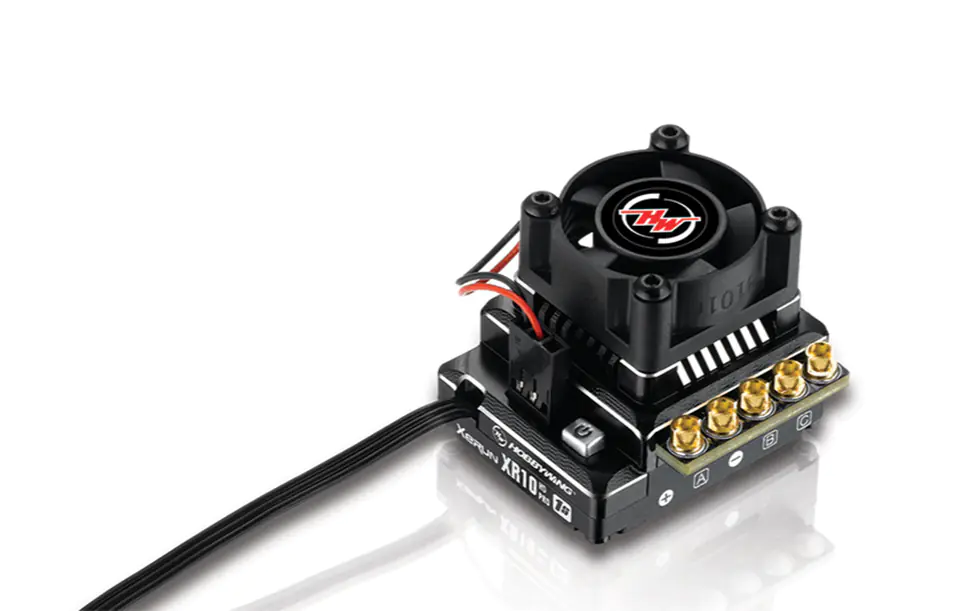

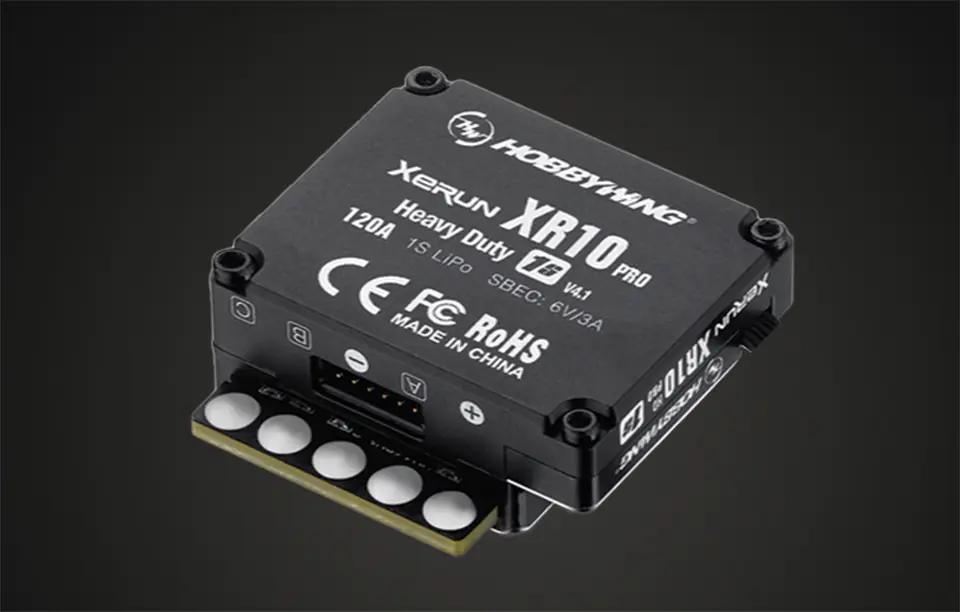

The Hobbywing XeRun XR10 Pro 1S Heavy Duty regulator is the perfect solution for 1/12th scale RC models. It is equipped with a reliable heat dissipation system, so you can be sure that it will not damage your equipment. It has a built-in BEC switch and capacitor module. In addition, it allows you to adjust the operation of the device and update the system from the application.
During the production of the regulator, the technology patented by Hobbywing was used. This means that the inner power board has been coated with a heat-conducting copper strip. The strap and heatsink effectively dissipate heat, making the device work efficiently.

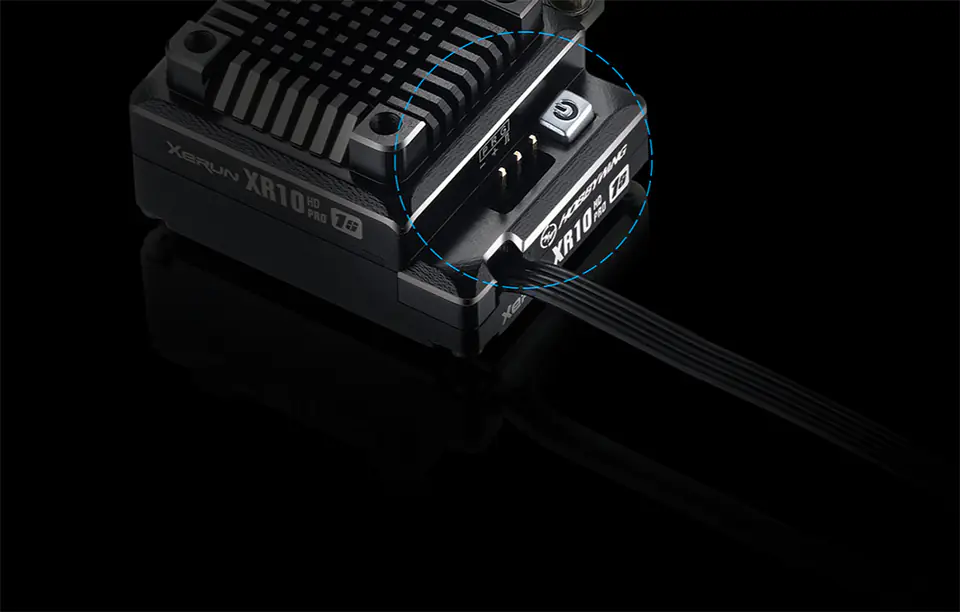

Hobbywing XeRun XR10 Pro 1S Heavy Duty is equipped with a BEC switch that can generate current/voltage up to 6A/6V and power various types of servos without the need to connect an additional receiver battery. In addition, an electronic switch with a lifespan of more than 50,000 cycles has been housed in a water, dust and shock-resistant design. The capacitor module, on the other hand, saves space and covers the wiring.

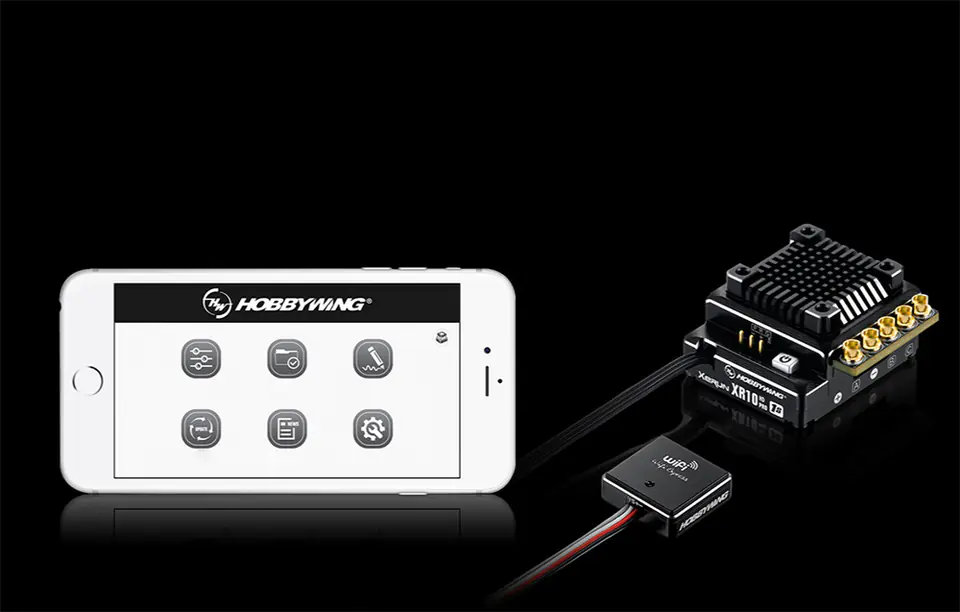

The Hobbywing application together with the WiFi Express module allow you to remotely adjust the operation of the device to your liking. It works with Android and iOS, and from there you can adjust settings, update software or check important ESC data.

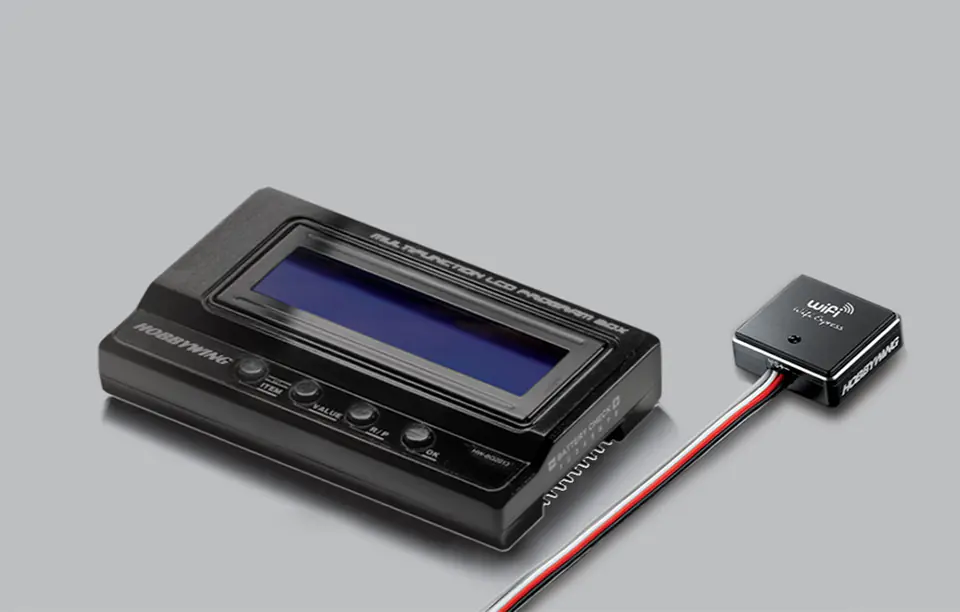

The product offers PWM throttle and brake frequency control for the highest possible control precision, especially in the Stock class. What's more, a separate PRG/FAN port in ESC allows external fan power to maximize cooling performance. It also allows you to connect ESC to an LCD programmer or a WiFi module for ESC programming. Additionally, ESC offers a data logging function that records the maximum ESC value, motor temperature, RPM, etc. All this data is recorded in real time, allowing you to check it through the LCD Program Box.
| Producer | Hobbywing |
|---|---|
| Name | XeRun XR10 Pro 1S Heavy Duty |
| Number | 30112609 |
| Scale | 1/12th |
| Type | Brushless |
| Sensors | Yes |
| Continuous/peak current | 120A/830A |
| Input voltage | 1S Lipo/3-4 Cell NiMH |
| BEC output voltage | Switch mode: 6V@3A |
| Input cables | Red-12AWG-200mm*1, Black-12AWG-200mm*1; Red-14AWG-200mm*1 Black-14AWG-200mm*1 |
| Output cables | Black-12AWG-200mm*3, Black-14AWG-200mm*3 |
| Set button in ESC | Inactive |
| LCD Program Box | Active |
| LED Program Box | Inactive |
| OTA Support | Yes |
| Firmware update | Supported |
| Dimensions | 37.5 x 31 x 31 mm |
| Scales | 46.7 g |
| Dedicated | motorcycles SL BL,SD BL; 1/12th cars |
| KV Rating/T Count | 1S LiPo: ≥3.0T(* ESC in Zero-timing/Blinky Mode) |
