Manufacturer Number: 10060143

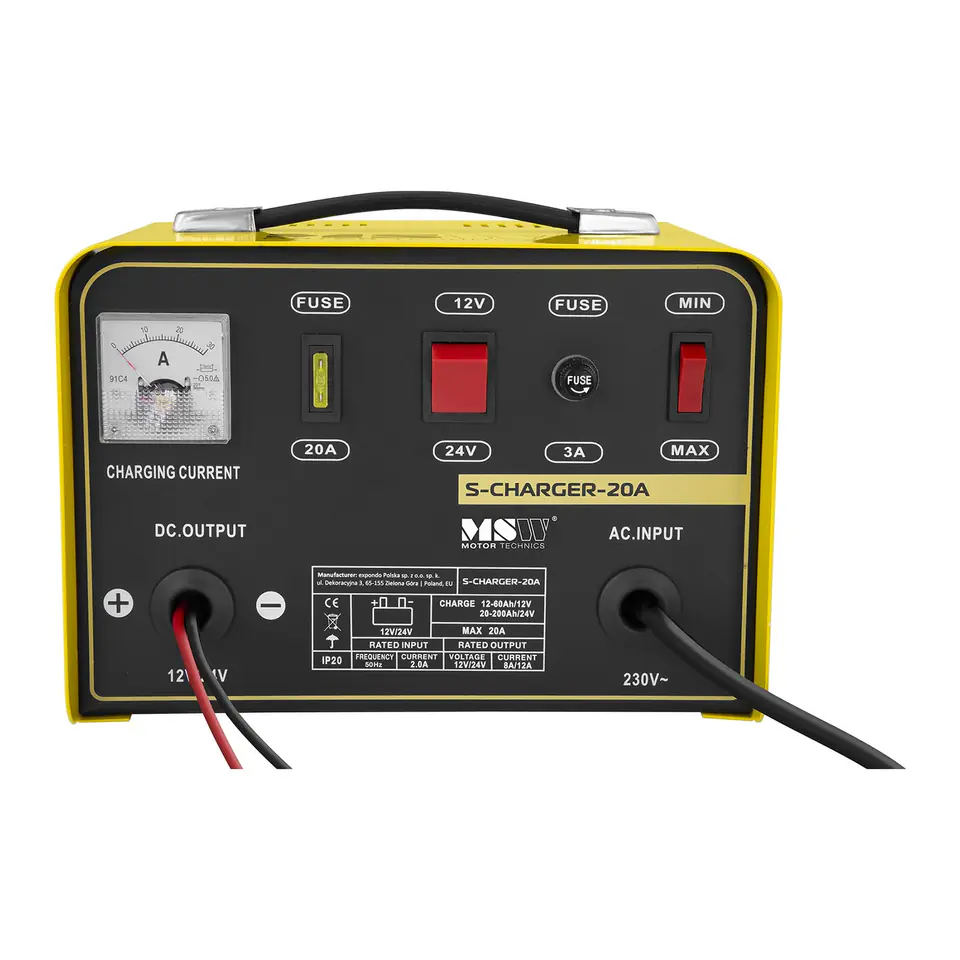

The S-CHARGER-20A car rectifier is designed for fast charging of batteries with a maximum current of 12A. A practical and legible control panel allows for efficient control and setting the operation of the device according to your needs. The panel has an analog display and convenient switches, responsible for the charging mode (MIN and MAX) and the output voltage (12V and 24V). The S-CHARGER-20A rectifier is characterized by efficiency, as well as economy, since the maximum current consumption is 0.5 kW.
The built-in fuse protects the device from short circuits and short circuits when the terminals are connected to the battery. The rectifier also has a system of protection against overheating, in the form of two fans and vents. The equipment is convenient to carry, thanks to the ergonomic handle, compact size and built-in cables.
Product features:
- Efficiency - fast charging thanks to two modes (MIN and MAX) and voltage switch (12V or 24V)
- Safety - short circuit break fuse and overheating cooling system
- Practicality - easy-to-use control panel with analog displays and switches
- Convenience - compact size, convenient handle, built-in wires
- Economy - low power consumption
- - Model - S-CHARGER-20A
- - Catalogue number - 10060143
- - Article status - New
- - Voltage - 230V / 50Hz
- - Output voltage - 12/24V
- - Charging current - 8/12A
- - Housing color - Black and yellow
- - Power cord length - 180 cm

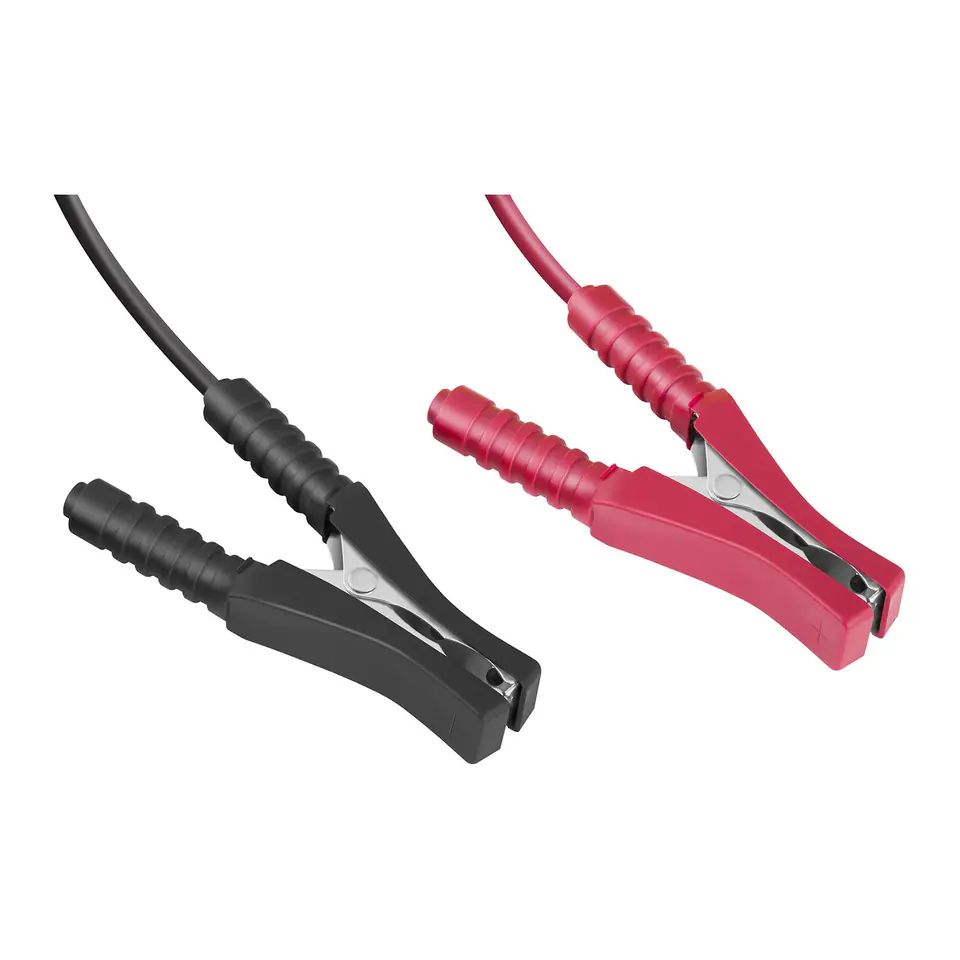

- - Jumper cable length (+) - 150 cm
- - Jumper cable length (-) - 150 cm
- - Max. current consumption - 0,5kW
- - Battery type - Lead-acid
- - Recommended battery capacity - 12-200Ah
- - Dimensions (LxWxH) - 15.6 x 25 x 19 cm
- - Weight - 5.3 kg
- - Shipping dimensions (LxWxH) - 31 x 23 x 22 cm
- - Shipping weight - 5.9 kg
- Rectifier with wires
- Manual PL
