The reversing camera is a modern system designed for motor vehicles. It checks the space behind the vehicle during reversing procedures. The device assists when reversing, but does not relieve the driver of the special attention required when reversing. The set is adapted for installation in passenger cars and vans.
Specification:

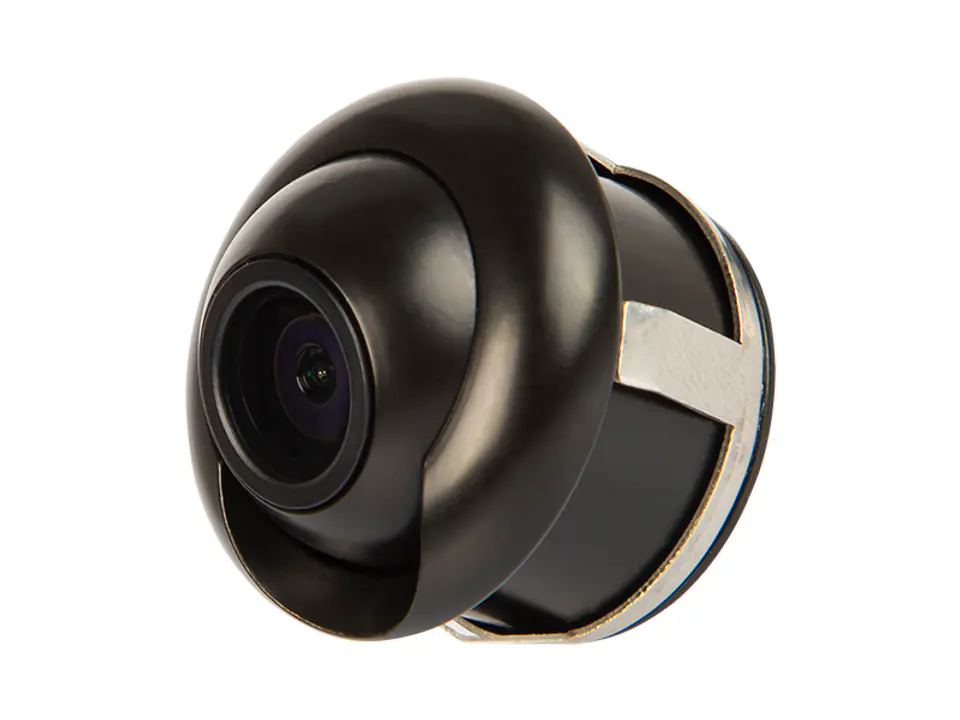

Camera
- Image sensor: 1/3.6 inch CMOS
- Resolution: 648x488
- Measuring area: 4.9 x 3.7
- Lens: F = 1.9 mm / F = 2.0
- Signal system: PAL
- Horizontal synchronization (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain adjustment and backlight adjustment
- Horizontal definition: 480 TV lines
- Minimum illumination: 0.01 lux
- Signal/noise: < 48.0 [dB]
- Viewing angle of image sensor: 170°
- Horizontal viewing angle: 120°
- Vertical viewing angle: 90°
- Diagonal viewing angle: 165°
- Waterproof class: Ip67
- Voltage range: 9-15V DC

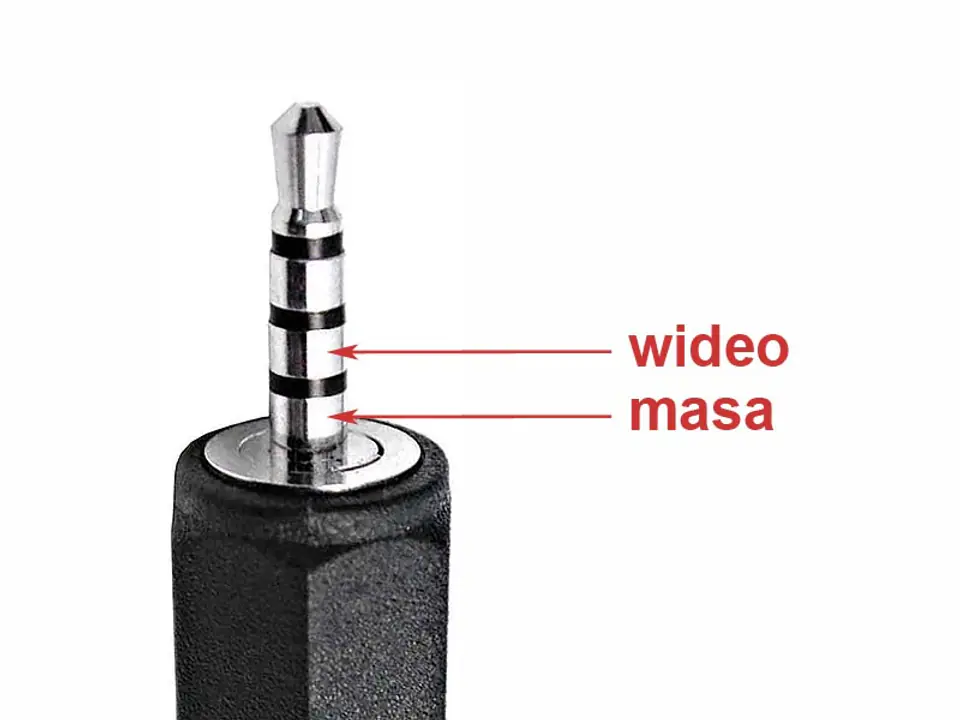

- Video Output: 1.0Vp-p / 75 Ω
- Operating temperature: -20 ~+70°C, RH 95% Max
- Storage temperature: -30 ~+80°C, RH 95% Max

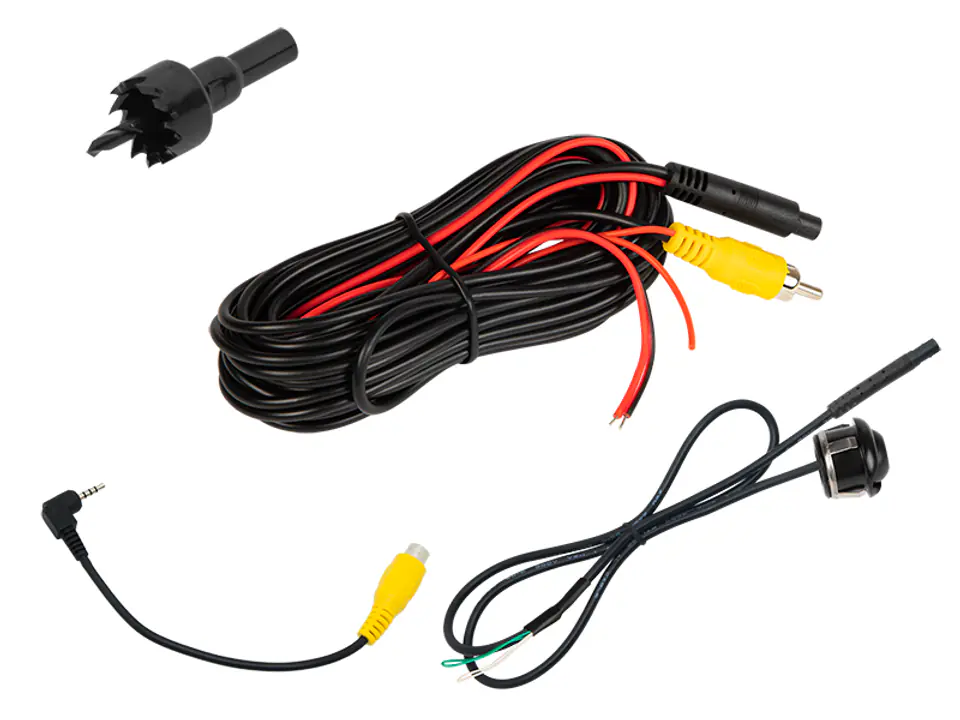

- Length of cable at the camera: 55 cm
- Power cord length: 75 cm
- Length of video cable to monitor: 580 cm
