Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for circumferential milling and universal machining. Also used for edge milling and finishing milling.
For roughing and finishing milling and grooving as well as for grooving milling. Extremely calm operation due to the uneven line of twist of the groove to achieve good surface quality of the workpiece.
Ratio SL cutter DIN6527,VHM,FIRE 4-blade 12mm GÜHRING
€72.51
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9055340120000 / 4031093579575
Share this product:

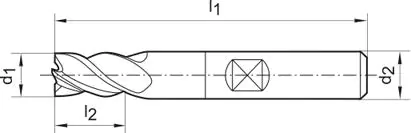

Specification
| Cast iron gg/gts: | 200 |
|---|---|
| Cutting part length l2: | 16 mm |
| Diameter d1 = h 10: | 12 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 100 |
| Inox duplex: | 70 |
| Shank diameter d2 = h6: | 12 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.079 mm/rev |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Titanium > 850 n/mm2: | 70 |
| Total length l1: | 73 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
