| Aluminium > 8% silicon: | 200 |
|---|---|
| Cast iron gg/gts: | 180 |
| Copper alloys: | 130 |

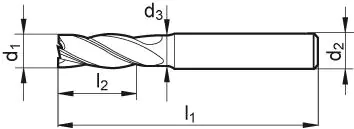

| Cutting part length l2: | 11 mm |
| Diameter d1 = h 10: | 4 mm |
| Ggg cast iron: | 144 |
| Inox austenite.: | 48 |
| Inox duplex: | 38 |
| Inox ferrite./martenz.: | 60 |
| Neck diameter: | 3.7 mm |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.028 mm/rev. |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Titanium > 850 n/mm2: | 70 |
| Total length l1: | 57 mm |
Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for circumferential milling and universal machining. For milling to a maximum depth of 2 x D. Also for edge milling and finishing. For roughing and finishing milling and grooving as well as for grooving milling. Extremely quiet operation thanks to the uneven 36°/38° groove line for a good workpiece surface quality.
