| Cast iron gg/gts: | 200 |
|---|---|

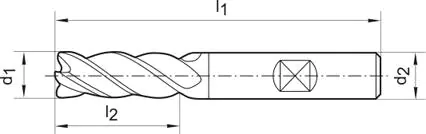

| Cutting part length l2: | 38 mm |
| Diameter d1 = h 10: | 20 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 100 |
| Inox duplex: | 70 |
| Shank diameter d2 = h6: | 20 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.110 mm/rev |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Titanium > 850 n/mm2: | 70 |
| Total length l1: | 104 mm |
Mandrel cutter, solid carbide
Execution: with central blade, suitable for drilling.
Application: for circumferential milling and universal machining. Also used for edge milling and finishing milling. For roughing and finishing milling and grooving as well as for grooving milling. Extremely calm operation due to the uneven line of twist of the groove to achieve good surface quality of the workpiece.
