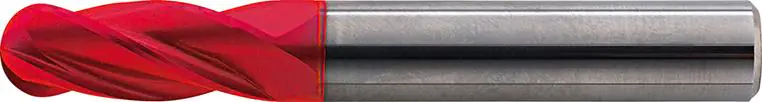

Radial milling cutter, solid carbide

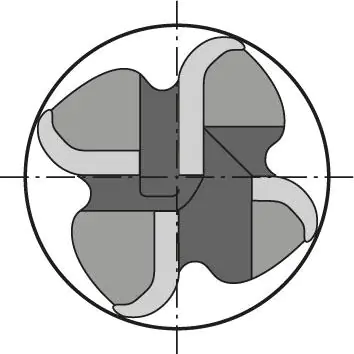

Execution: with center blade, suitable for drilling.
Application: for copy and finishing milling as well as for edge milling and circumferential milling. Grinding the neck application surface enables optimal tool reach and is therefore suitable for mould manufacturing applications. A tool for universal use. For INOX processing.
Note: for copy milling; Recommended cutting parameters for AP = 0,05 × D1 and AE = 0,1 × D1.
Radius.long cutter WN,VHMFIRE,shank HA,4-blade.8mmGÜHRING
This product is not available
- Availability:
- expected delivery
- Brand:
- GÜHRING
- Product code:
- 9037270080000 / 4031093388955
Share this product:
Specification
| Aluminium > 8% silicon: | 295 |
|---|---|
| Cast iron gg/gts: | 140 |
| Cutting part length l2: | 19 mm |
| Diameter d1 = h 10: | 8 mm |
| Ggg cast iron: | 112 |
| Inox austenite.: | 104 |
| Inox duplex: | 83 |
| Inox ferrite./martenz.: | 130 |
| Inox ferrite./martenz. fz: | 0.035 mm/rev |
| Radius r: | 4.0 mm |
| Shank diameter d2 = h6: | 8 mm |
| Steel < 1000 n/mm2: | 120 |
| Steel < 1400 n/mm2: | 96 |
| Steel < 700 n/mm2: | 150 |
| Titanium > 850 n/mm2: | 80 |
| Total length l1: | 63 mm |
