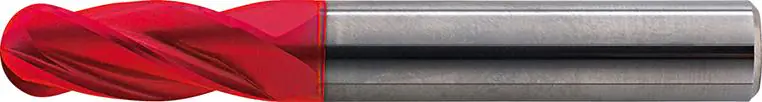

Radial milling cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for copy and finishing milling as well as for edge milling and circumferential milling. Grinding the neck application surface enables optimal tool reach and is therefore suitable for mould manufacturing applications. A tool for universal use. For INOX processing.
Note: for copy milling; Recommended cutting parameters for AP = 0,05 × D1 and AE = 0,1 × D1.
Radius.long cutter WN, FIRE,gripHA,4-blade.10mmfullnewg.,GÜHRING
€50.32
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9037270100000 / 4031093388962
Share this product:
Specification
| Aluminium > 8% silicon: | 295 |
|---|---|
| Cast iron gg/gts: | 140 |
| Cutting part length l2: | 22 mm |
| Diameter d1 = h 10: | 10 mm |
| Ggg cast iron: | 112 |
| Inox austenite.: | 104 |
| Inox duplex: | 83 |
| Inox ferrite./martenz.: | 130 |
| Inox ferrite./martenz. fz: | 0.040 mm/rev |
| Radius r: | 5.0 mm |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 120 |
| Steel < 1400 n/mm2: | 96 |
| Steel < 700 n/mm2: | 150 |
| Titanium > 850 n/mm2: | 80 |
| Total length l1: | 72 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
