Radial milling cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for copy milling and grooving as well as for universal machining.
Note: for copy milling; Recommended cutting parameters for AP = 0,05 × D1 and AE = 0,1 × D1.
Radius cutter cutter. DIN6527, FIRE,2-blade,ww. HA8mm full-fledged body. GÜHRING
€30.80
Shipping from warehouse: B6
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9055850080000 / 4031093779760
Share this product:

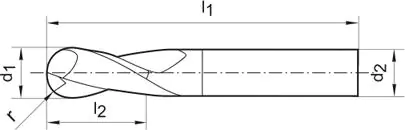

Specification
| Aluminium > 8% silicon: | 295 |
|---|---|
| Cast iron gg/gts: | 140 |
| Cutting part length l2: | 16 mm |
| Diameter d1 = h 10: | 8 mm |
| Ggg cast iron: | 112 |
| Inox austenite.: | 104 |
| Inox duplex: | 83 |
| Inox ferrite./martenz.: | 130 |
| Shank diameter d2 = h6: | 8 mm |
| Steel < 1000 n/mm2: | 120 |
| Steel < 1400 n/mm2: | 96 |
| Steel < 1400 n/mm2 fz: | 0.035 mm/rev |
| Steel < 700 n/mm2: | 150 |
| Titanium > 850 n/mm2: | 80 |
| Total length l1: | 63 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
