Radius cutter cutter. DIN6527, FIRE,2-blade,ww. HA6mm full-fledged bug. GÜHRING

€24.59
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Dec 26 - Mon, Dec 30
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
GÜHRING
Product code:
9055850060000 / 4031093779777

Specification

Aluminium > 8% silicon:295
Cast iron gg/gts:140

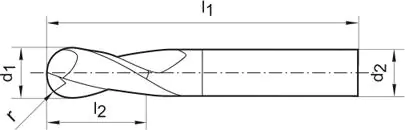

Cutting part length l2:10 mm
Diameter d1 = h 10:6 mm
Ggg cast iron:112
Inox austenite.:104
Inox duplex:83
Inox ferrite./martenz.:130
Shank diameter d2 = h6:6 mm
Steel < 1000 n/mm2:120
Steel < 1400 n/mm2:96
Steel < 1400 n/mm2 fz:0.030 mm/rev.
Steel < 700 n/mm2:150
Titanium > 850 n/mm2:80
Total length l1:57 mm

Radial milling cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for copy milling and grooving as well as for universal machining.
Note: for copy milling; Recommended cutting parameters for AP = 0,05 × D1 and AE = 0,1 × D1.
