Radial milling cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for copy milling and grooving as well as for universal machining.
Note: for copy milling; Recommended cutting parameters for AP = 0,05 × D1 and AE = 0,1 × D1.
Radius cutter cutter. DIN6527, FIRE,2-blade,ww. HA3mm full-fledged glyc. GÜHRING
This product is not available
- Availability:
- expected delivery
- Brand:
- GÜHRING
- Product code:
- 9055850030000 / 4031093779807
Share this product:
Specification
| Aluminium > 8% silicon: | 295 |
|---|---|
| Cast iron gg/gts: | 140 |

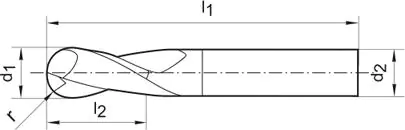

| Cutting part length l2: | 7 mm |
| Diameter d1 = h 10: | 3 mm |
| Ggg cast iron: | 112 |
| Inox austenite.: | 104 |
| Inox duplex: | 83 |
| Inox ferrite./martenz.: | 130 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 120 |
| Steel < 1400 n/mm2: | 96 |
| Steel < 1400 n/mm2 fz: | 0.020 mm/rev |
| Steel < 700 n/mm2: | 150 |
| Titanium > 850 n/mm2: | 80 |
| Total length l1: | 57 mm |
