| Cooperation:: | Satel MICRA |
|---|---|
| Current consumption:: | Max. 15 mA |
| Dimensions:: | 126 x 158 x 32 mm |
| Environmental class:: | II |
| Frequency band:: | 433.05 ... 434.79 MHz |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | -10 °C ... 55 °C |
| Power:: | 230 VAC |
| Radio communication range (in open area):: | ≤ 500 m @ PERFECTA ≤ 450 m @ VERSA-MCU / MTX-300 / MICRA |
| Scales:: | 0.27 kg |
| Selected features:: | Encrypted radio communication in the 433 MHz frequency band LED indicator indicating the operating status Tamper detection - case openings Built-in switching power supply Short-circuit protection power inputs Li-Ion battery 3.7 V / 1.8 Ah - Emergency power Battery control and disconnection of discharged battery |
| Warranty:: | 2 years |

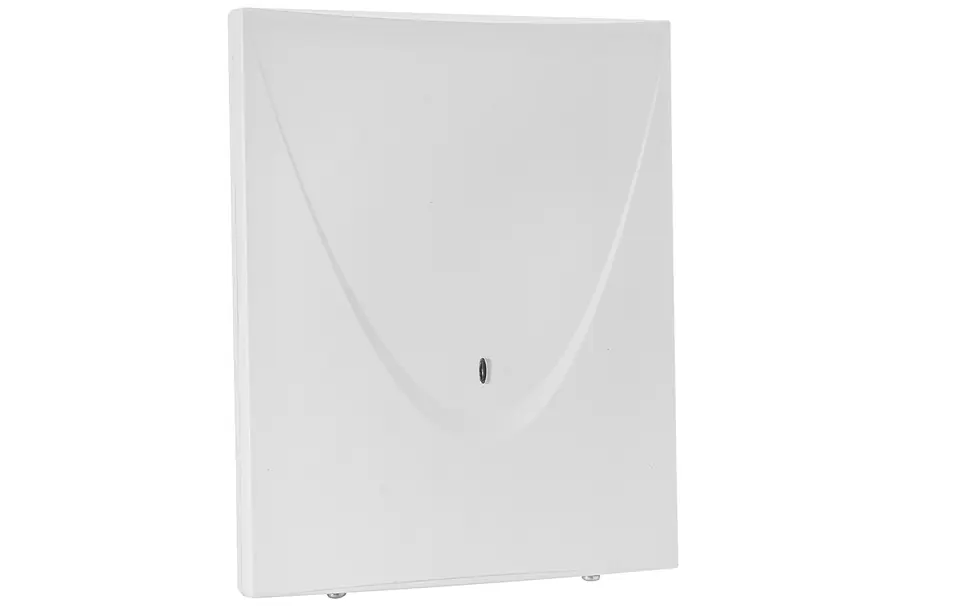

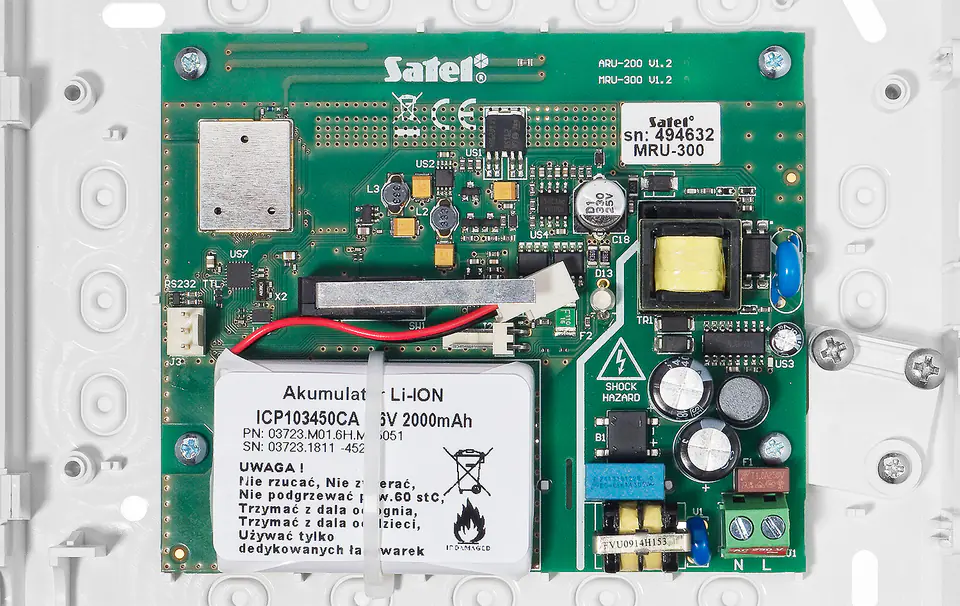

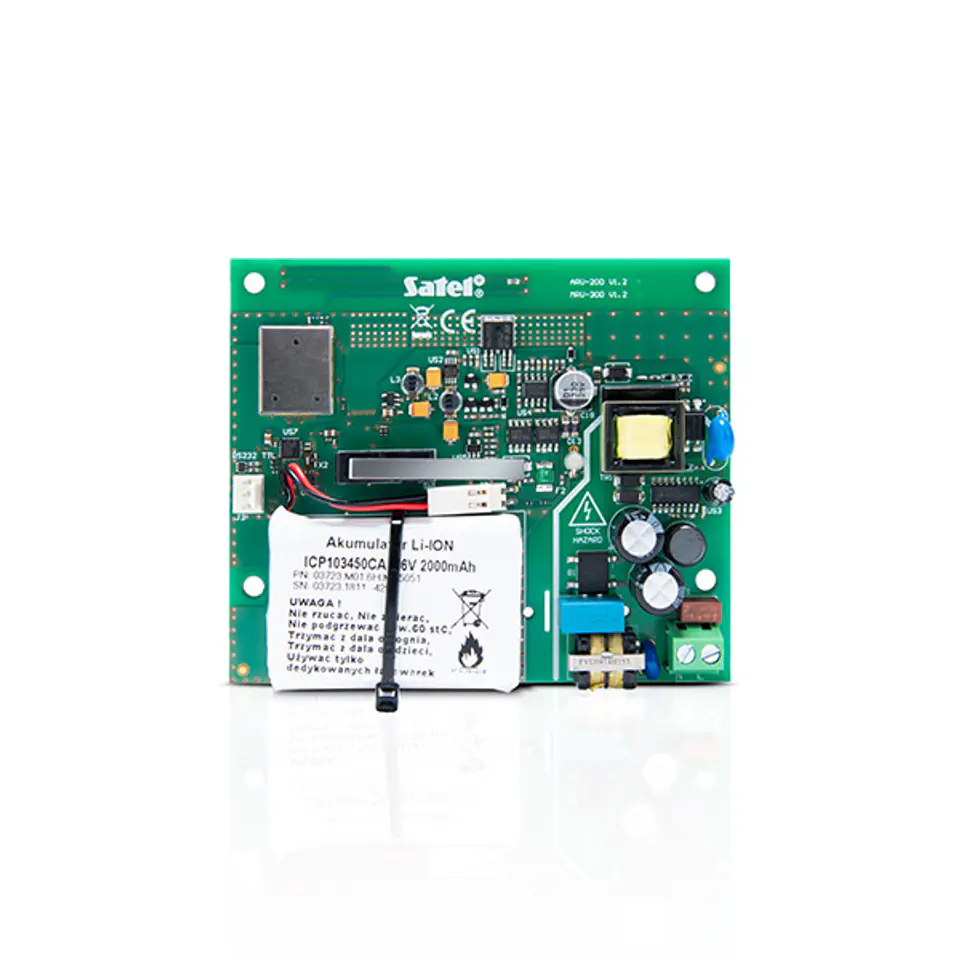

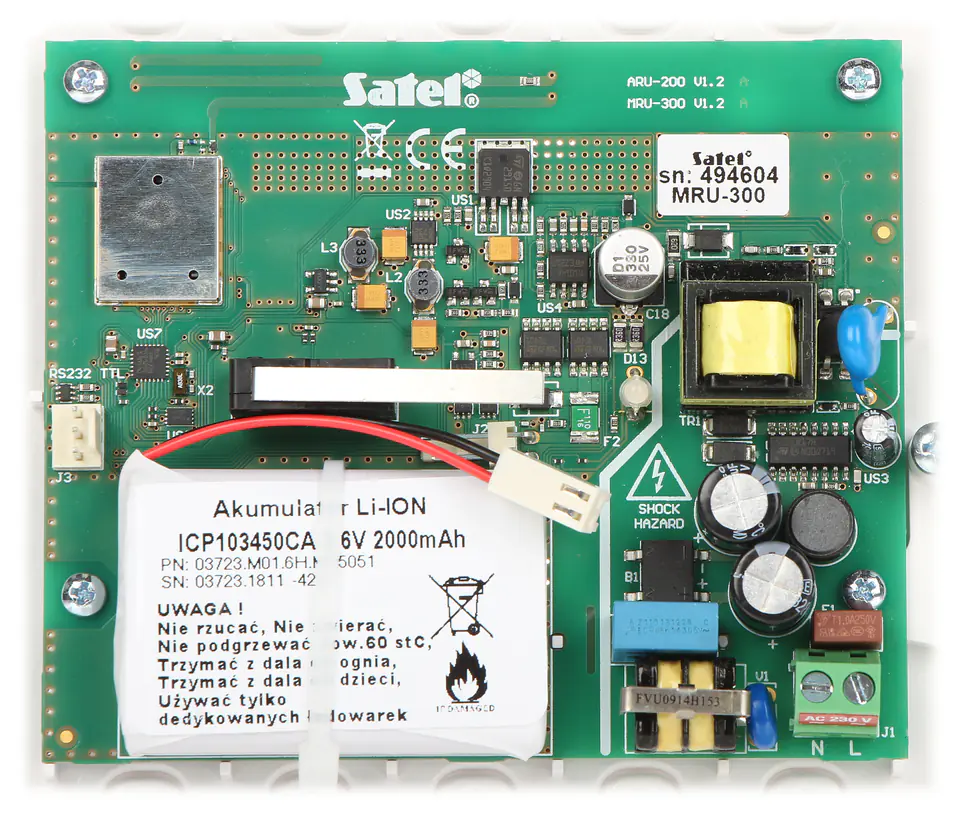

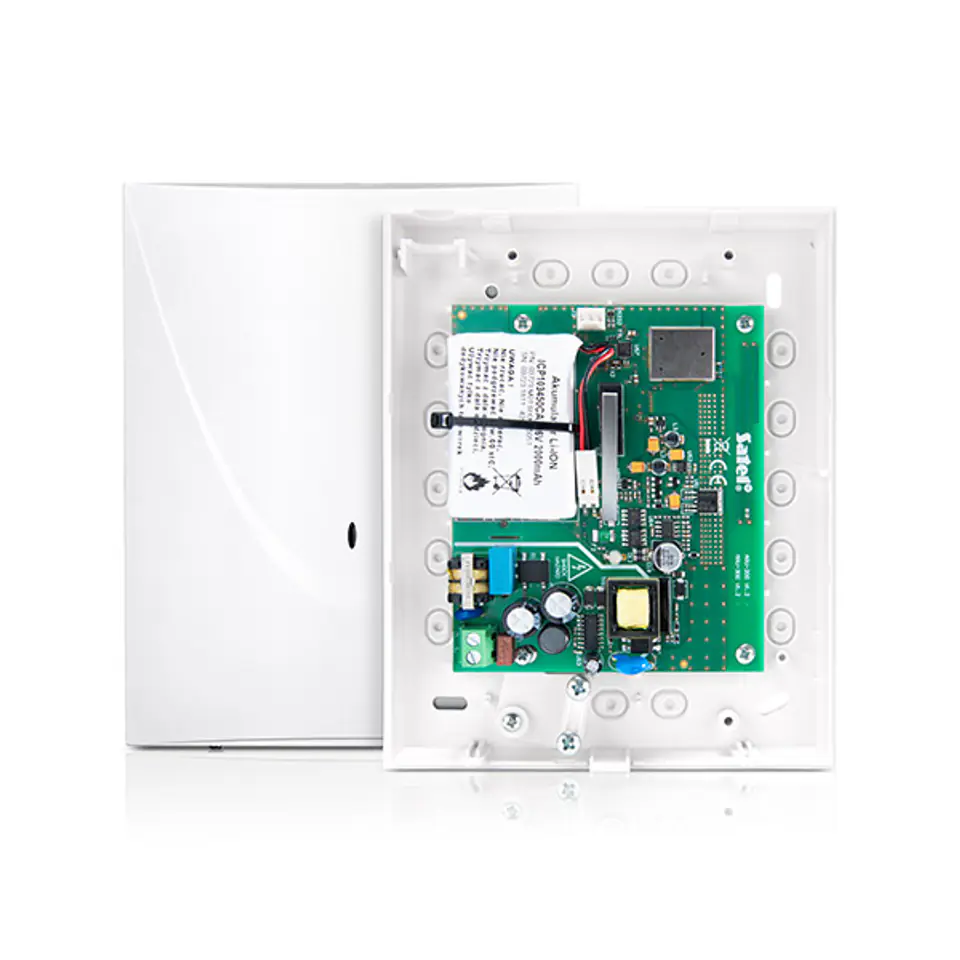

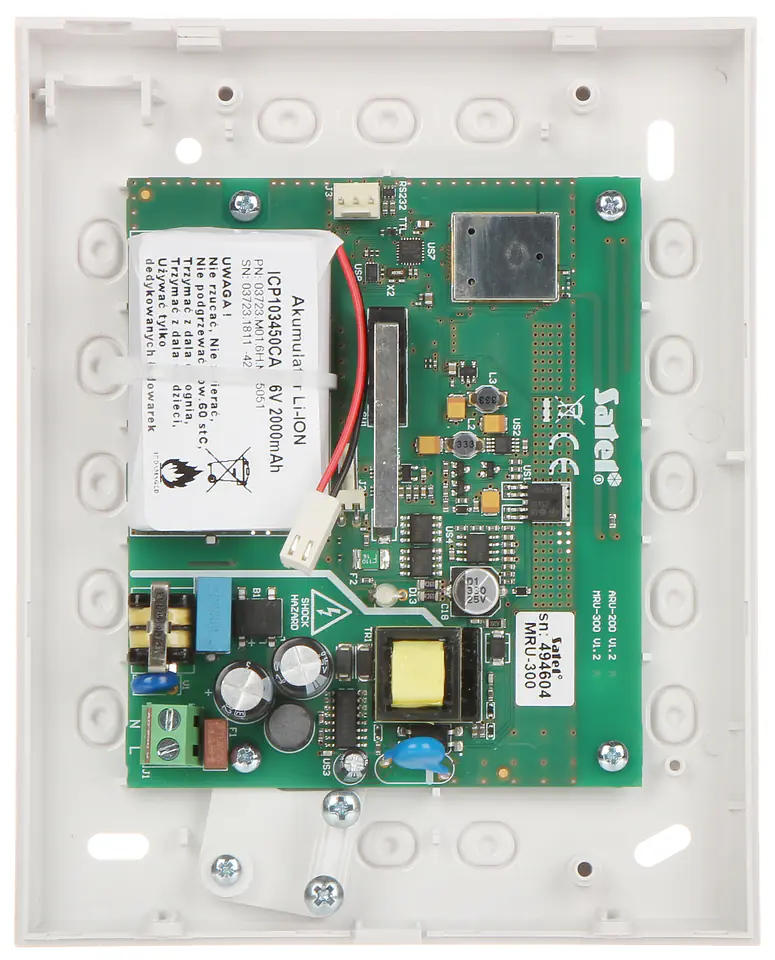

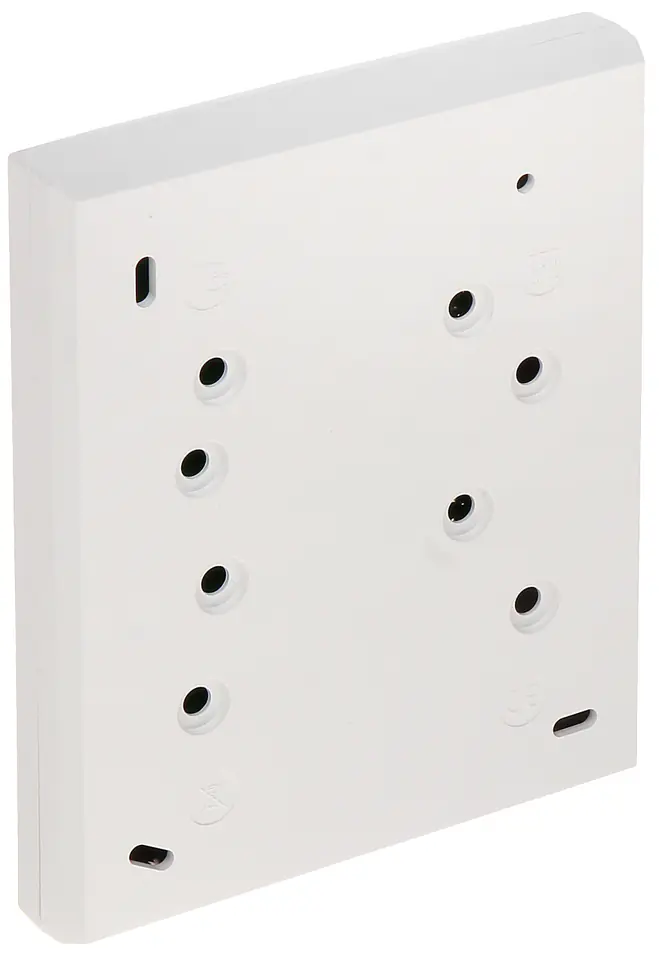

MrU-300 retransmitter receives transmissions from wireless devices of the MICRA system and retransmitsthe device is supported by: PERFECTA alarm control panels (WRL models), VERSA-MCU controller, MTX-300 controller, MICRA alarm module (software version 2.02 or newer)
It is also possible to use the module in any alarm system of another manufacturer or automation system, e.g. as a radio controller
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
