RADIO CONTROLLER RK-4K/SMA SATEL

Name: RADIO CONTROLLER RK-4K/SMA SATEL
Brand: Satel
SKU: 515743
Price: 57.29 EUR
Availability: InStock

€57.29

Shipping from warehouse: ⁨N7⁩

Estimated shipping: Wed, Nov 27 - Mon, Dec 2

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: RK-4K/SMA / 5905033333949

Specification

Current consumption (min. / max.)::	about 18 mA / about 58 mA
Dimensions::	72 x 118 x 24 mm
Frequency range::	433.05 MHz ... 434.79 MHz
Load capacity of relay contacts::	1 A @ 24 V DC/AC
Load capacity of ss output (oc)::	500 mA
Lv output load capacity (oc)::	50 mA
Manufacturer / brand::	SATEL
Number of controlled inputs::	4
Operating temperature range of the transmitter (remote control)::	-20 ... 55 °C
Range of operation in the open field::	up to 500 m (after connecting an external antenna)
Receiver operating temperature range::	-10 ... 50 °C
Relay operating modes::	Bistable, monostable, pulsed
Scales::	0.09 kg
Selected features::	4 independent programmable channels Support up to 1024 remote controls low battery voltage signaling in the remote control confirming on/off, standby/erasing alarm RS-232 port SMA connector for connecting an external antenna
Supply voltage::	12 V ... 24 V DC ± 10 % 24 V AC ± 10 %
Time adjustment range in monostable mode::	1 ... 255 sec
Warranty::	2 years

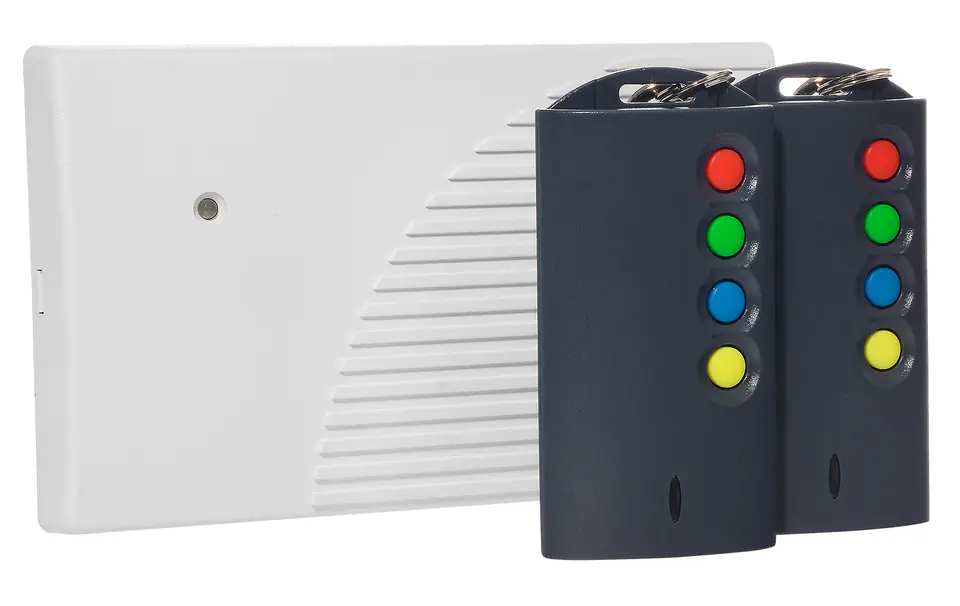

The RK-4K/SMA radio controller enables remote control of electrical devices using radio transmitters (remote controls)The controller can work with up to 1024 remote controlsThe controller supports only remote controls manufactured by SATELThe controller cooperates with alarm systems to facilitate inputs informing about the status of the systemThanks it is possible to easily organize signaling of switching on / off standby and erasing the alarm

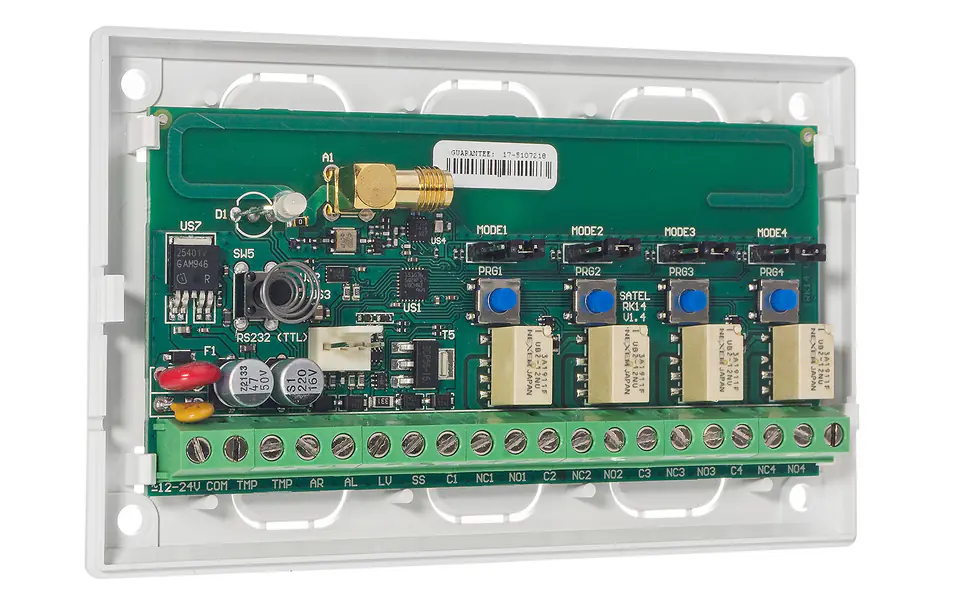

The design is based on components from Microchip Technology IncKEELOQ®This ensures both safety of use and resistance to accidental control signals from other devices
