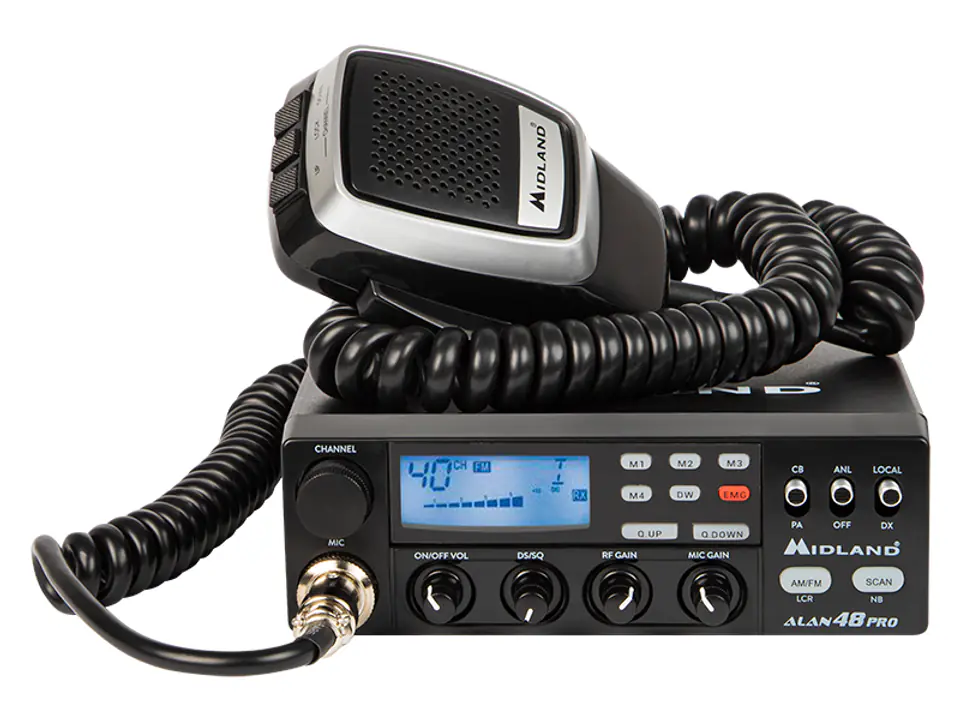

Radio CB ALAN-48 PRO AM/FM/ASQ 12/24V 1PH

Alan-48 Plus Multi is a multi-channel, portable CB radio, which uses modern technical solutions ensuring exceptional comfort of use and high efficiency of communication. Thanks to the use of the highest quality materials, shock-resistant printed circuit boards, monolithic integrated circuits, the PLL Alan-48 Plus Multi frequency synthesizer guarantees years of trouble-free operation. Illuminated controls allow easy operation of the radio at night.

TECHNICAL DATA:
- Number of channels: 40 AM/FM (400 AM/FM)
- Frequency range: 26.960 - 27.400 MHz
- Frequency control: PLL phase loop
- Operating temperature: -10°/+55° C
- Power supply: 13.8V DC ±15%
- External dimensions: 180x50x150 mm
- Weight: 1 kg
RECEIVER
- Reception system: superheterodyne with double frequency conversion
- Intermediate frequencies: 10.695 MHz and 455 KHz
- Sensitivity: 0.5μV at 20dB SINAD in AM/FM
- Audio output power: 2.0 W, 8 Ohm
- Acoustic distortion: <8% at 1 KHz
- Mirror frequency attenuation: 65 dB
- Channel separation: 65 dB
- S/N ratio: 45 dB
- Current consumption at reception: 250mA
TRANSMITTER
- Output power: 4W
-Modulation: AM: 85% to 95%, FM:1.8KHz ± 0.2KHz
- Frequency response: 500 Hz ÷ 3 kHz
- Output impedance: 50 Ohm
- S/N ratio: min 40 dB
- Current consumption: 1100mA without modulation
