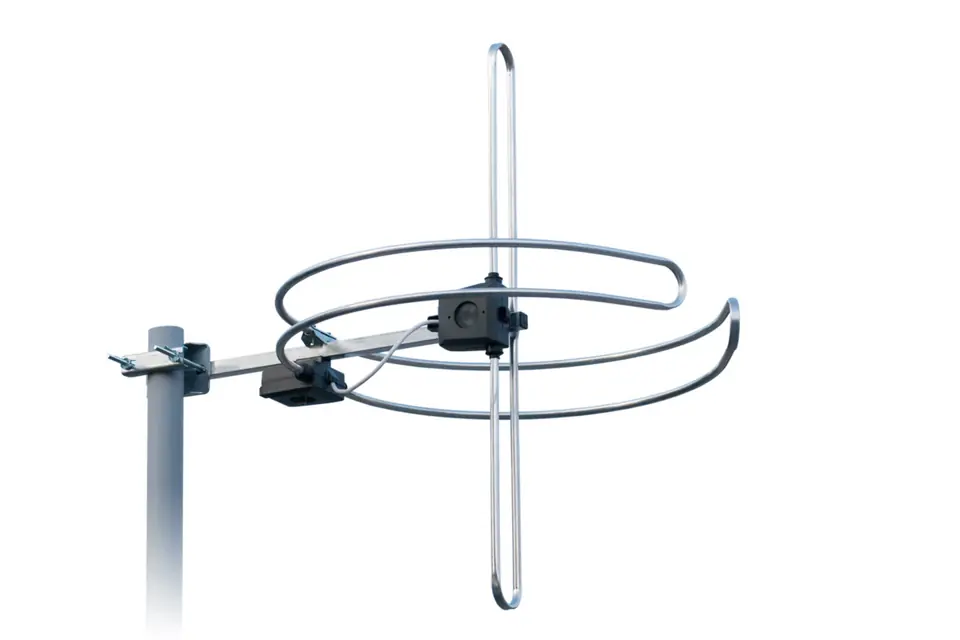

The omnidirectional radio antenna DAB-FM Spacetronik SPA-DF01 is designed for simultaneous or individual reception of signals from FM radio (analog radio) and DAB (Digital Audio Broadcasting). The radio antenna has been specially designed for analog radio with a frequency of 87.5 - 108 MHz and digital radio with a frequency of 217 - 240 MHz.
The main feature of Spacetronik SPA-DF01 antennas is that they have a built-in "F" type female connector, which greatly facilitates the installation of the antenna.
Features of DAB-FM radio antenna Spacetronik SPA-DF01
- Channel (freq.): FM (87.5-108 MHz); DAB (217-240 MHz)
- Number of elements: 2
- Gain: FM: -0.8 dB (i); DAB: 2.2dB(i)
- F/B ratio : 0 dB
- Beam width: FM 360°; DAB ± 90°
- Antenna length: ─
- Impedance: 75 Ohm
- Coaxial cable connection: Female connector "F"
- Slope: 0-10°
- Antenna bracket: 18x18 mm
- Mounting on a mast with an external diameter: 20-62 mm
