RACK POWER SUPPLY ZR12-100/G-8-UHD 12 V DC 8.5 A

€87.05
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
running out
Brand:
Delta
Product code:
ZR12-100/G-8-UHD / 5902887066856

Specification

Assembly::Rack 19"
Case::Metal
Colour::Black
Current efficiency of the power supply::8.5 A
Dimensions::483 x 44 x 122 mm
Manufacturer / brand::DELTA
Max. current::150mA camera - 98 meters (R=3,4Ohm/100m) 150mA camera - 60 meters (R=5,5Ohm/100m) 650mA camera + thermostat - 22 meters (R=3,4Ohm/100m) 650mA camera + thermostat - 14 meters (R=5,5Ohm/100m)
Maximum current of a single output::1 A
Mtbf (mean time between failures)::> 700000 h
Number of power outputs::8 pcs. Cable clamps
Number of video inputs::8 pcs. screw terminals
Number of video outputs::8 pcs. BNC socket
Operating temperature / relative humidity::-10 °C ... 55 °C / < 95 %
Output voltage adjustment::11.4  ... 13.2 volts
Output voltage::12 VDC
Power supply type::Pulse
Power supply::102 watts (Printing)
Purpose of leds::red "POWER" - informs about the supply voltage (DC IN) green "PWR LED" - inform about the fuse burning out (no lighting means that the fuse is blown)
Scales::0.69 kg
Security::Short-circuit Overload Surge Temperature Surge Protection
Standard::AHD - 8 Mpx 4K UHD HD-CVI - 8 Mpx 4K UHD HD-TVI - 8 Mpx 4K UHD CVBS - PAL / NTSC
Supply voltage::selected by 90 V switch ... 132 V AC, 180 V ... 264 VAC
Type of fuse inserts::8 x 1A/250V, 5/20mm, time-lag
Warranty::5 years

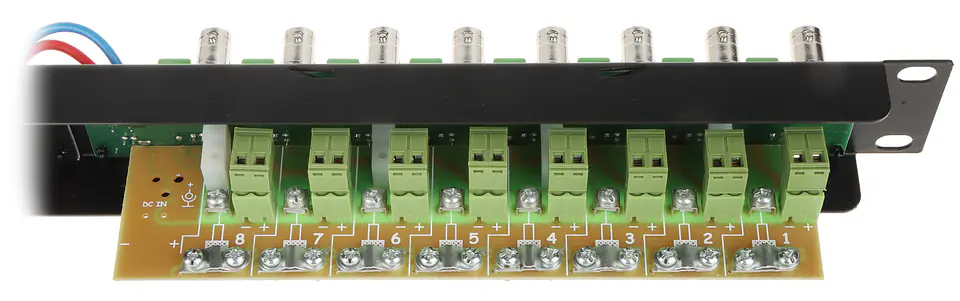

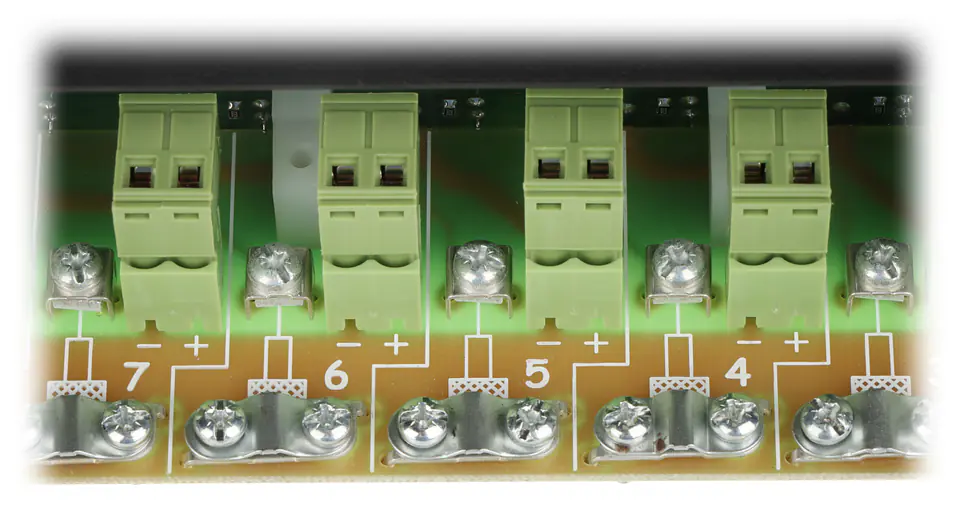

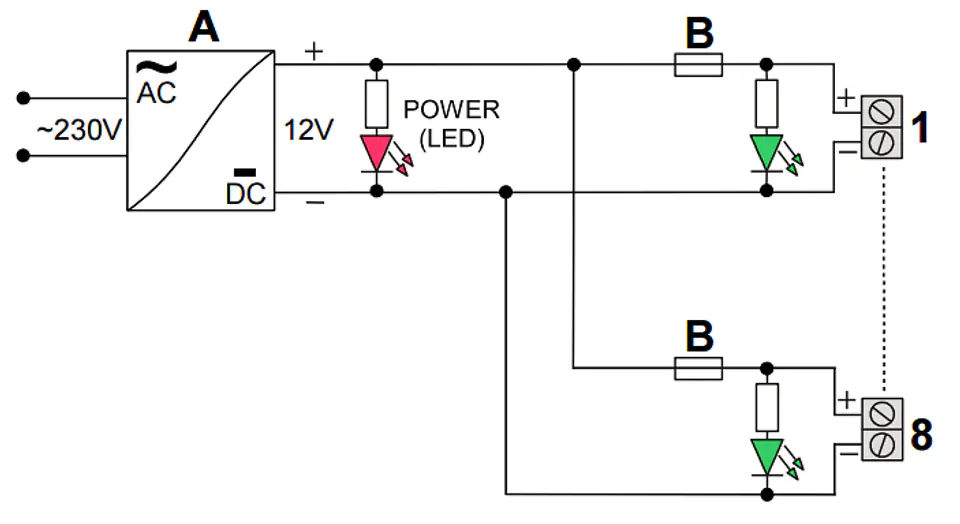

ZR12-100/G-8-UHD is a device designed for convenient and permanent connection of 8 coaxial CABLES (e.g. YAP type), and branching the power supply from a high-quality external power supply to 8 outputs, each of which is protected by a fuse fuse, and has an LED informing about its burningThe coaxial wires are fixed with the help of low-loss screw terminals (clamp of the conductor and cable screen)

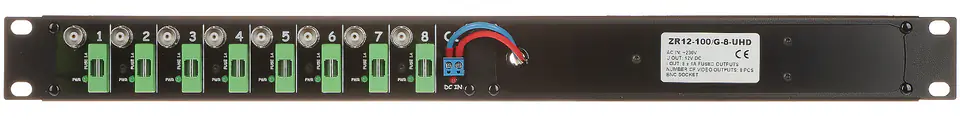

Key features of the device: It is dedicated to applications using video signal standards: AHD, HD-CVI, HD-TVI, PALOse saving space in the rack cabinet – distribution socket in one panel 1UIssproof designAdd installation of a coaxial cable: the clamp of the conductor and the screen of the cable connects the cable to the BNC8 sockets of power outputs with short-circuit protection protected by 1A fusesEvery output has a green LED that lights up during normal operation (no glowing means blowing fuse)Red LED (POWER) informs about the voltage from the external power supplyVery high MTBF > 700 000hIncluded mounting screws for mounting in the rack cabinet (SM-6/RACK)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
