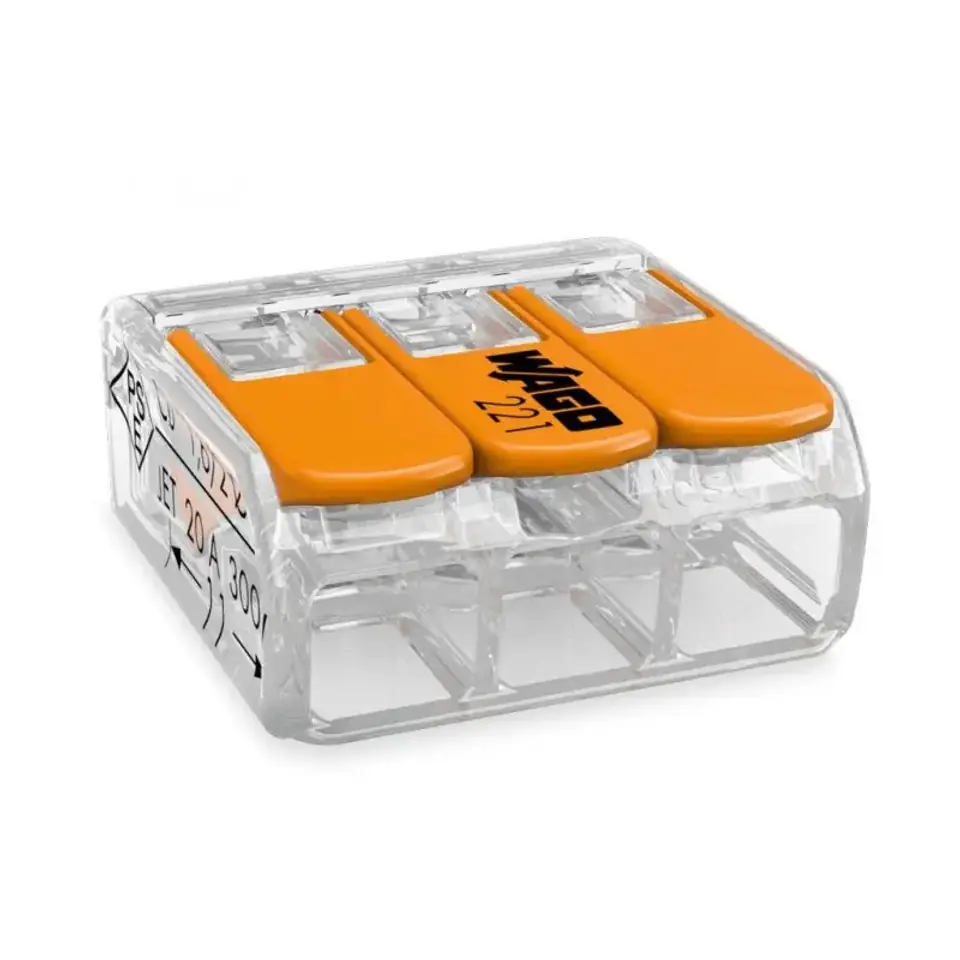

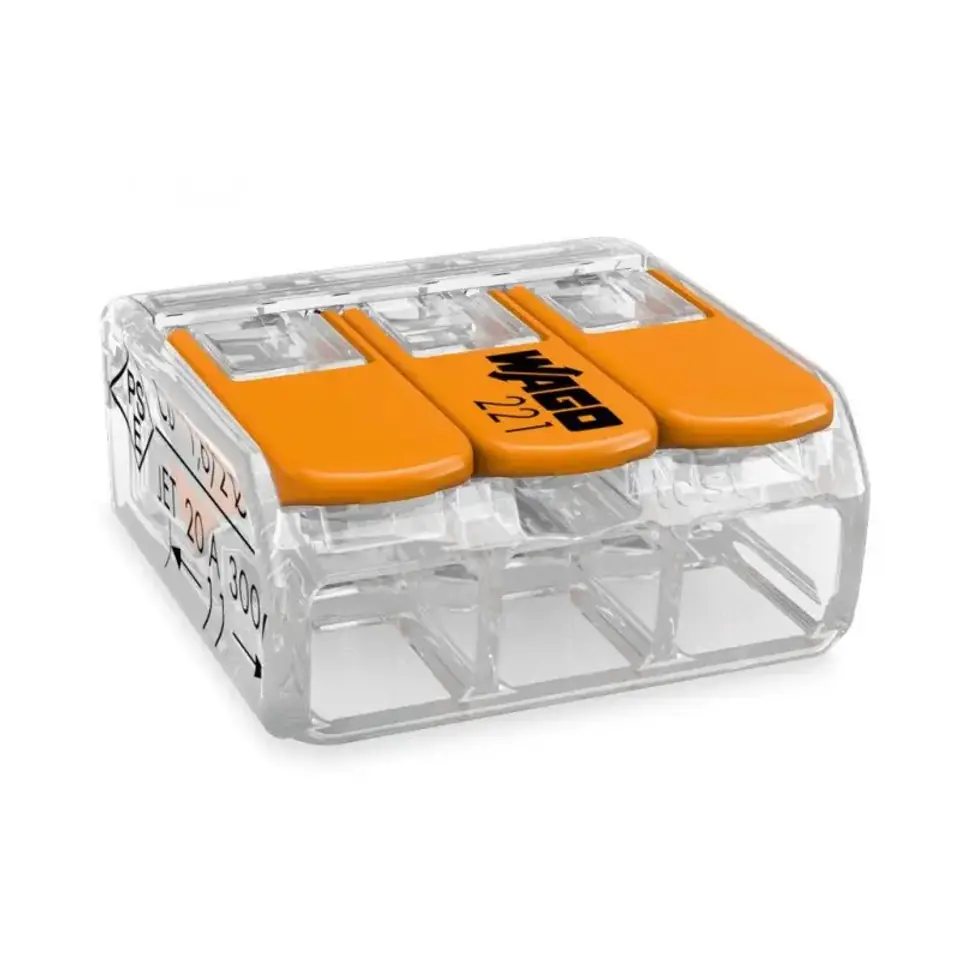

QUICK COUPLING WAGO 221-413 3X0,5-4,0 MM2 WITH 20 LEVERS

Specifications:

Electrical
Rating according to IEC/EN 60664-1
rated parameters wgEN 60664
rated voltage (II/2)450V
rated surge voltage (II/2)4kV
rated current32A
nominal parameter legend(II/2) ? surge category II/pollution grade 2
rated parameters according to UL
parameters according to WUL 486C
Rated voltage UL (Use Group C)600V
rated current UL (Use Group C)20A

Clamp parameters
total number of terminals2
Total number of potentials1
Connection 1 Ads
CAGE CLAMP® cable connection technology
clamp opening methodLever
Wire MaterialCopper
Rated section4 mm2 / 12 AWG
single-wire cable0,2 ... 4 mm2 / 24 ... 12 AWG
multiwire cable0,2 ... 4 mm2 / 24 ... 12 AWG
stranded wire0,14 ... 4 mm2 / 24 ... 12 AWG
Cable Isolation Length11mm / 0.43in
Wiring directionSide wiring



COMPACT installation connector for all types of cables max. 4 mm2 3-wire with levers
Housing color, transparent ambient temperature, max. 85 °C (T85) 4.00 mm2 transparent

Benefits:
Easy operation: lift the lever, insert the wire, lower the lever
2-, 3- and 5-wire versions available
Comfortable installation of cables from 0.14 to 4 mm2
Installation of single-wire, multi-wire and stranded cables
Time savings for fitters and equipment manufacturers
Quickly connect powerful devices
Safety when installing long cables with larger cross-sections
Mounting adapter for standard-compliant installation
Can be fastened according to the customer's own needs


**

Illustrative photos.
