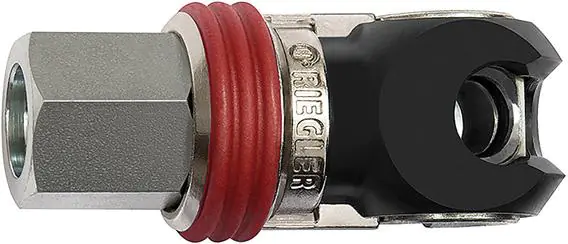

Tilting safety coupling NW 7,4 with internal thread
Execution: With free flow. Housing made of steel with NBR seals. The nipple is plugged into the connector body, the connection is made by rotation of approx. 90°. A secure connection is formed when the red ring clicks into the groove. To disconnect the connection, the red ring must be pulled back and the nipple should be tilted to the bumper to the starting position. The venting hole on the back of the quick coupler is vented during disconnection. These couplings meet the requirements of ISO DIN EN ISO 4414, EN 983.
Use: In pneumatic systems, in the mechanical engineering and plant industry, in measurement, regulation and control technology, in the manufacturing industry, in workshops and in the automotive industry.
Tip: The safety quick coupler cannot be used for direct mounting to pulse tools.
