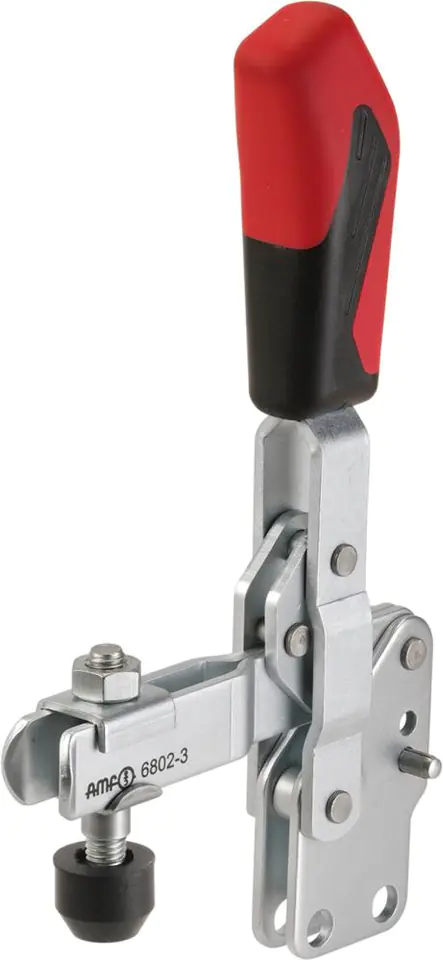

Quick clamping pressure, vertical, with vertical foot
Design: quick-clamping pressure, vertical, with open pressure arm and vertical foot. Galvanized and passivated. Stainless steel rivets move in diffusion-hardened bearing sleeves; Due to lack of space, it does not apply to size 1. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Safety clamping element with finger protection. Protection against loss of the pressure screw at the end of the pressure arm.
Application: for fixing on web and for welded structures.
Scope of delivery: quick-clamping pressure, vertical, complete with heat-treated, galvanized pressure screw.

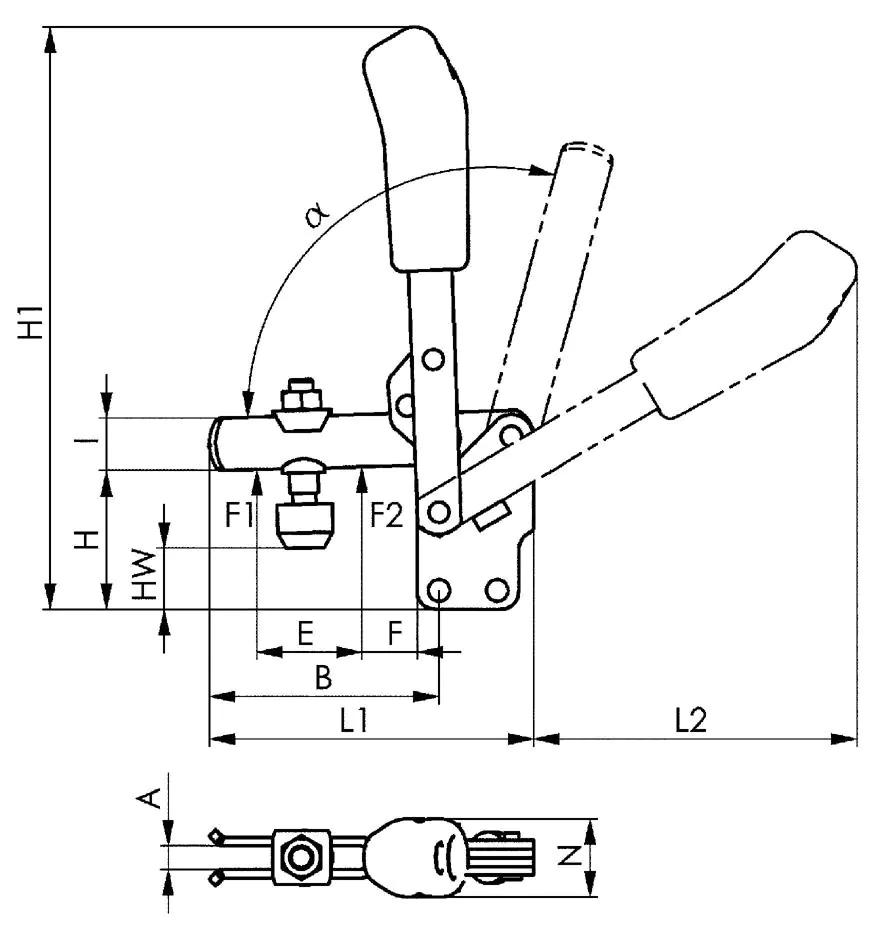

alpha* The opening angle can be increased by pressing the thrust pin. alpha* The opening angle can be increased by pressing the thrust pin.
