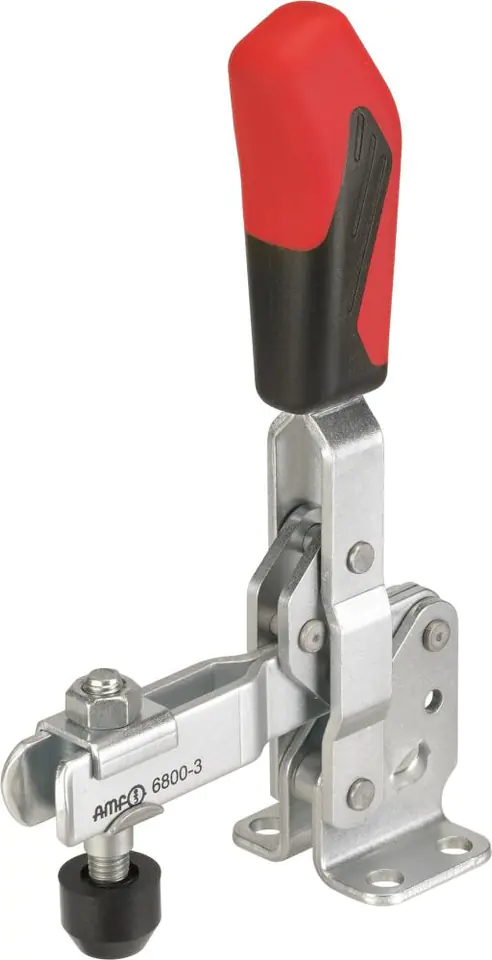

Quick clamping pressure, vertical, horizontal, galvanized and passivated
Design: quick-clamping pressure, vertical, with open pressure arm and horizontal foot. Galvanized and passivated. Stainless steel rivets move in diffusion-hardened bearing sleeves; Due to lack of space, it does not apply to sizes 0 and 1. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Safety clamping element with finger protection. Protection against loss of the pressure screw at the end of the pressure arm.
Scope of delivery: quick-clamping pressure, vertical, complete with heat-treated, galvanized pressure screw.

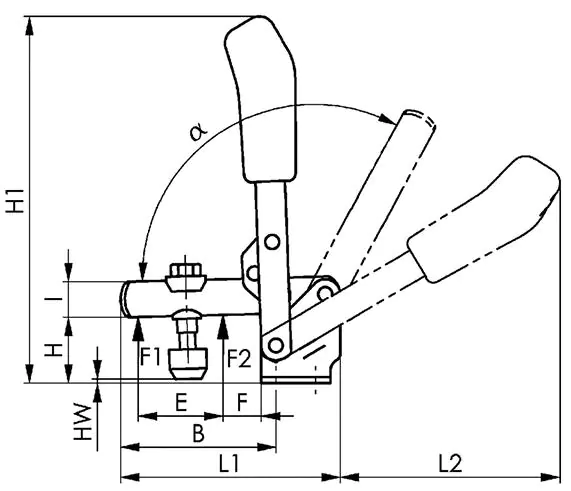

alpha* The opening angle can be increased by pressing the thrust pin. alpha* The opening angle can be increased by pressing the thrust pin.
