| Bore diameter: | 8.3 mm |
|---|---|
| Lifting capacity: | 3400 N |
| Mounting height: | 42 mm |
| Overall length: | 143 mm |
| Size: | 4 |
| Total height: | 218 mm |

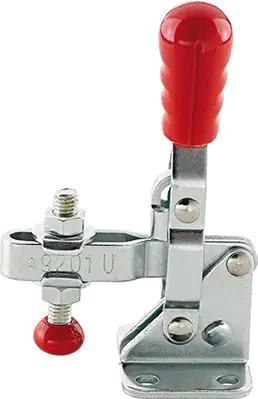

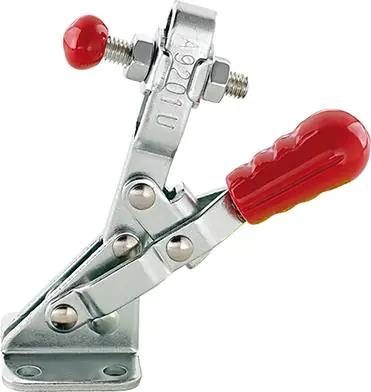

Quick clamping pressure, vertical
Design: with bent clamping foot, non-twisting bushings and stainless steel rivets. Galvanized and passivated. Plastic handle with long pressure arm.
Scope of delivery: quick-clamping pressure, vertical with pressure screw.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
