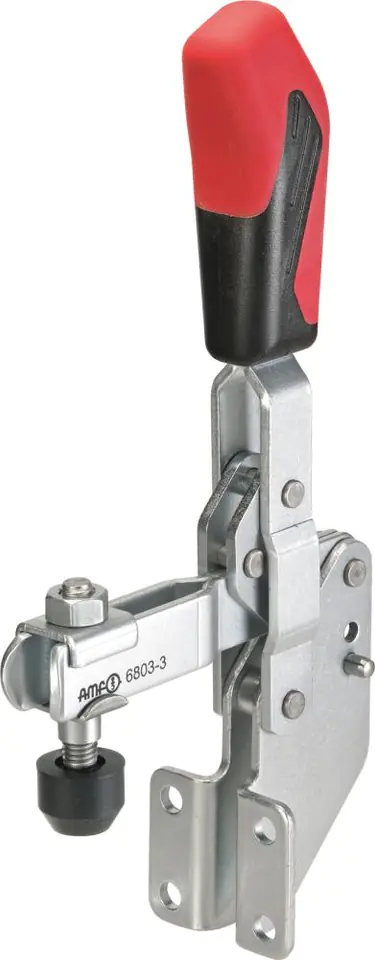

Quick clamping pressure, vertical, with angle foot
Design: quick-clamping pressure, vertical, with open pressure arm and angle foot. Galvanized and passivated. Stainless steel rivets move in diffusion-hardened bearing sleeves; Due to lack of space, it does not apply to size 1. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Safety clamping element with finger protection. Protection against loss of the pressure screw at the end of the pressure arm.
Application: for side mounting.
Scope of delivery: quick-clamping pressure, vertical, complete with heat-treated, galvanized pressure screw.
Also available in stainless steel.

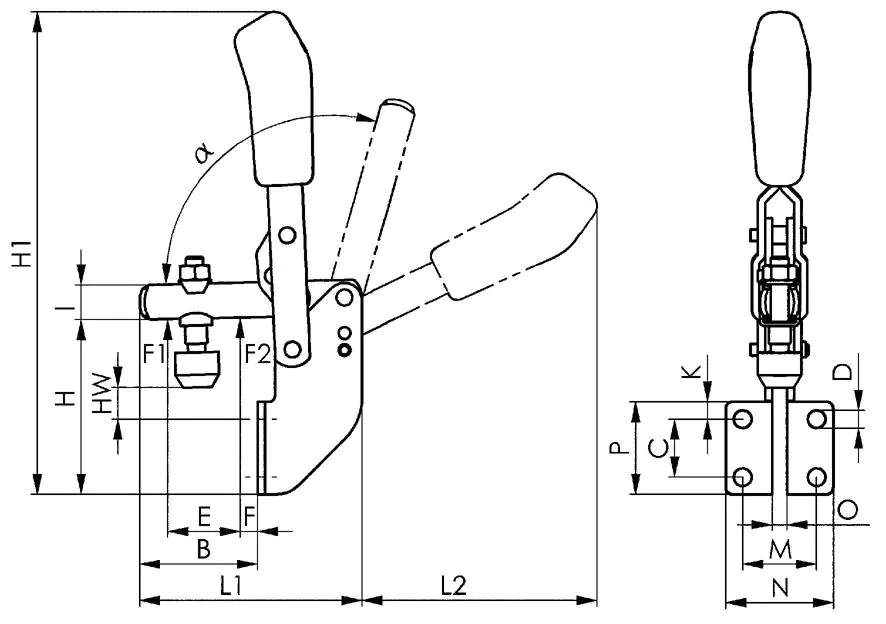

alpha* The opening angle can be increased by pressing the thrust pin. Also available in stainless steel.
alpha* The opening angle can be increased by pressing the thrust pin.
