Quick clamping pressure, vertical, 6803 wlk. 1 AMF

€21.29
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
90316 / 4020772090319

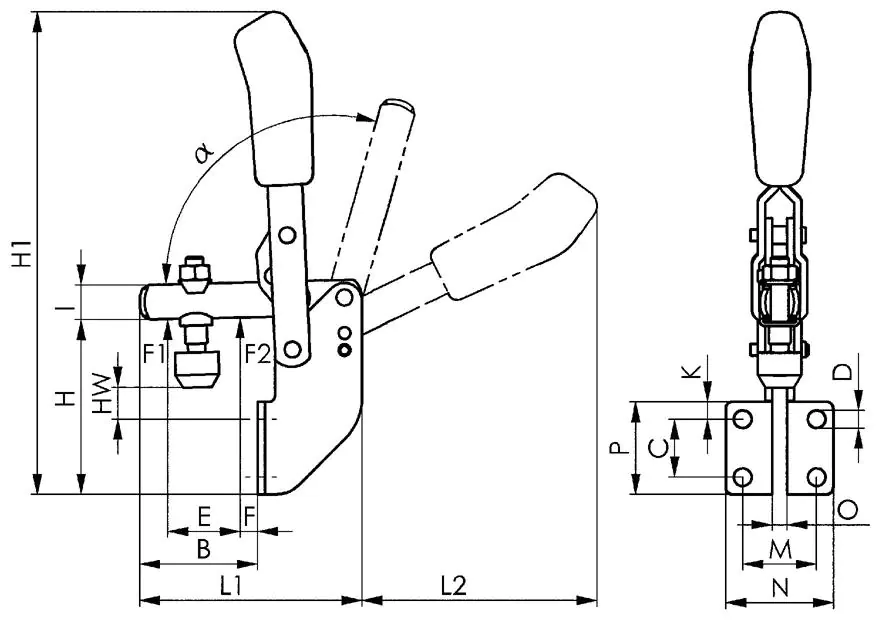

Specification

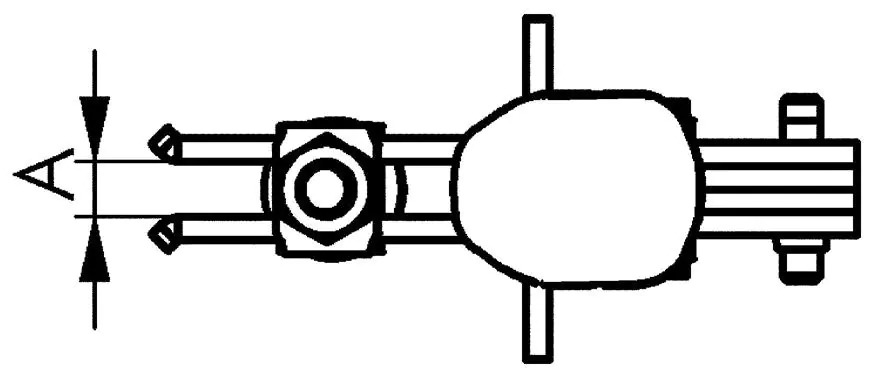

A:5
About:5
Alpha*:
And:10
B:34,5
C:14
D:4,5
E:18
F:7
F1:0.8 kN
F2:1.1 kN
H:45
H1:125
Hw max.:9
Hw min.:2,5
K:10
L1:61
L2:58
M:20
N:30
P:30
Pressure screw:M5 x 30
Scales:125 g
Size:1

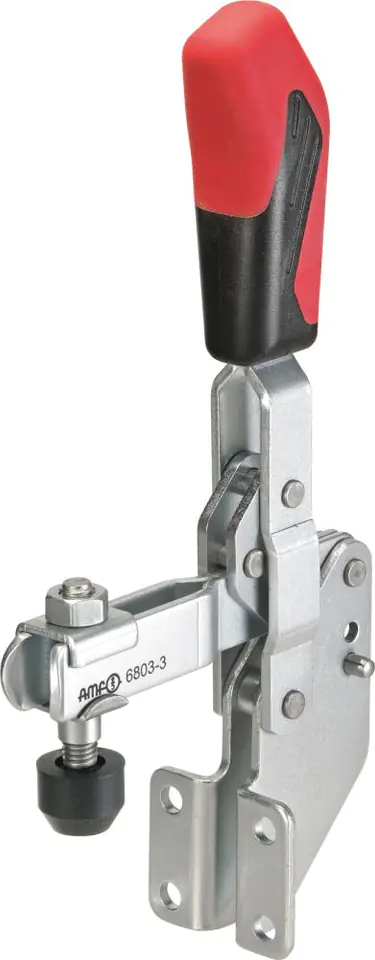

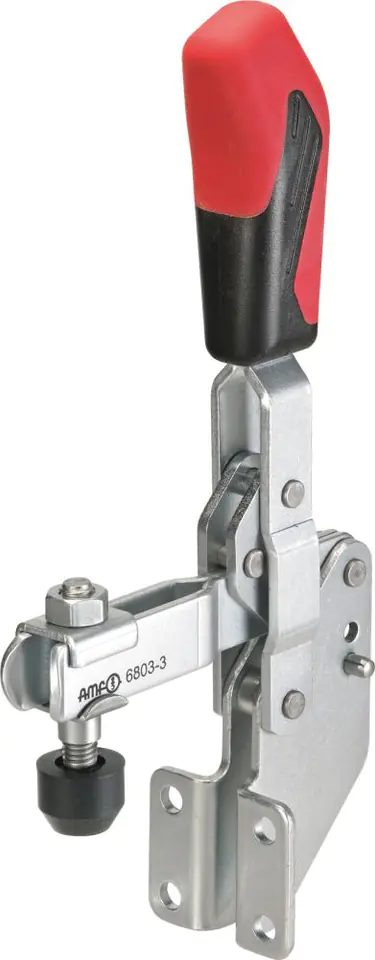

Quick clamping pressure, vertical, with angle foot

Design: quick-clamping pressure, vertical, with open pressure arm and angle foot. Galvanized and passivated. Stainless steel rivets move in diffusion-hardened bearing sleeves; Due to lack of space, it does not apply to size 1. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Safety clamping element with finger protection. Protection against loss of the pressure screw at the end of the pressure arm.
Application: for side mounting.
Scope of delivery: quick-clamping pressure, vertical, complete with heat-treated, galvanized pressure screw.

alpha* The opening angle can be increased by pressing the thrust pin. alpha* The opening angle can be increased by pressing the thrust pin.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
