Quick clamping pressure, horizontal, size 4

€27.89
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Dec 30 - Thu, Jan 2
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
linia uniwersalna
Product code:
390146 / 4053569822985

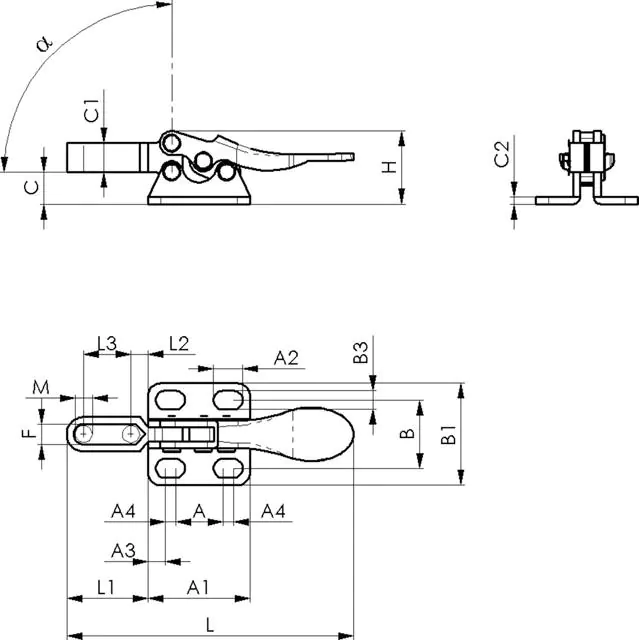

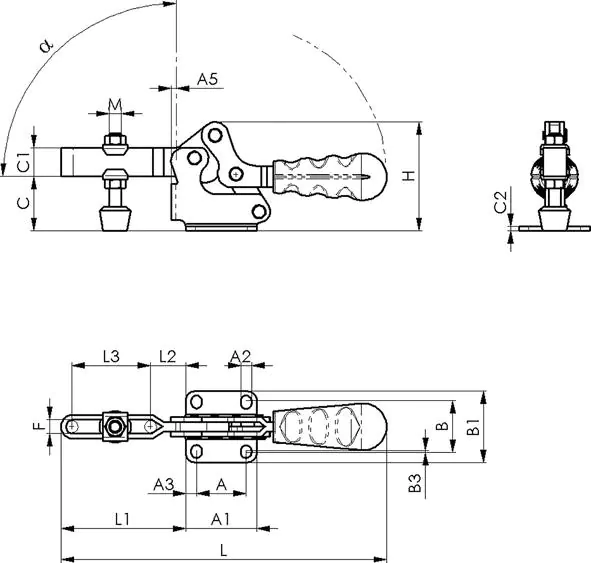

Specification

Lifting capacity:3400 N
Mounting height:45 mm
Overall length:269 mm
Size:4
Total height:90 mm

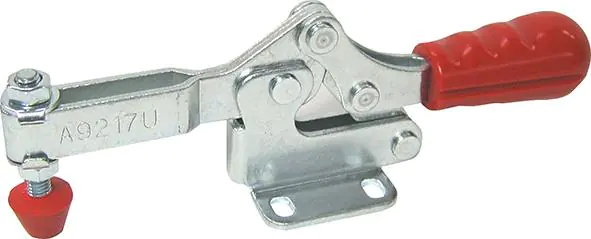

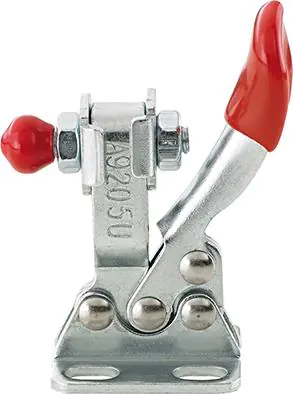

Quick clamping pressure, horizontal

Material: steel, galvanized and passivated, with media-resistant lever arm and foot mount. Stainless steel rivets.
Application: optimal for use in series production.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
