Quick clamping pressure, horizontal, plus Wlk. 4 AMF

€54.63
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
551717 / 4020772001391

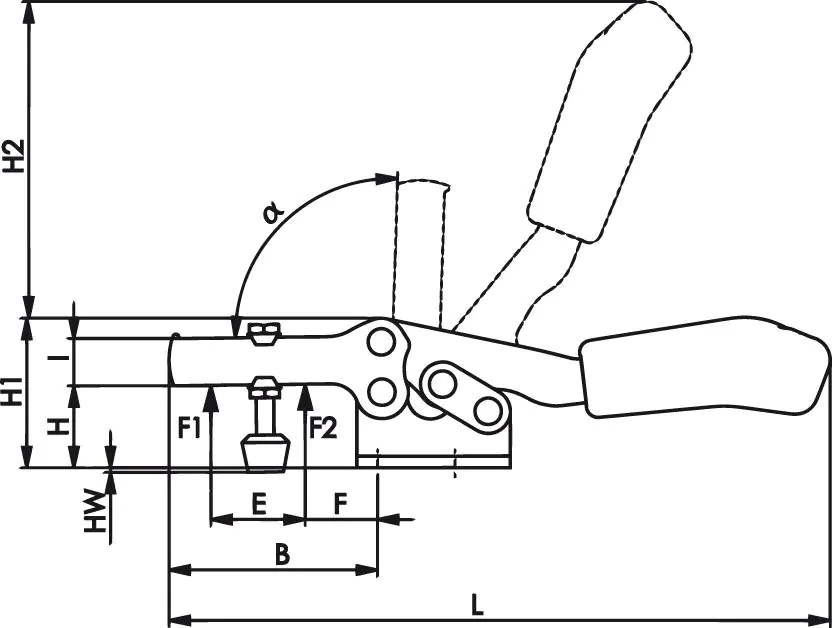

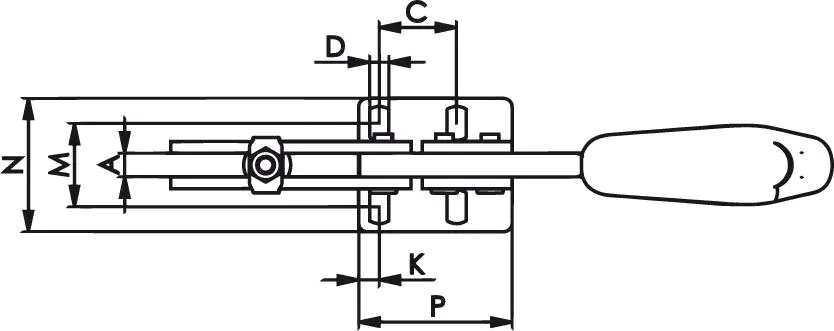

Specification

A:10
And:24
B:120
C:41,5
D:8,6
E:69
F:23
F1:3.5 kN
F2:8 kN
H:41
H1:77
H2:135
Hw max.:16,5
Hw min.:–2
K:10,5
L:329
M:34.5 - 45 mm
N:60
P:76
Pressure screw:M10 x 76
Scales:1250 g
Size:4

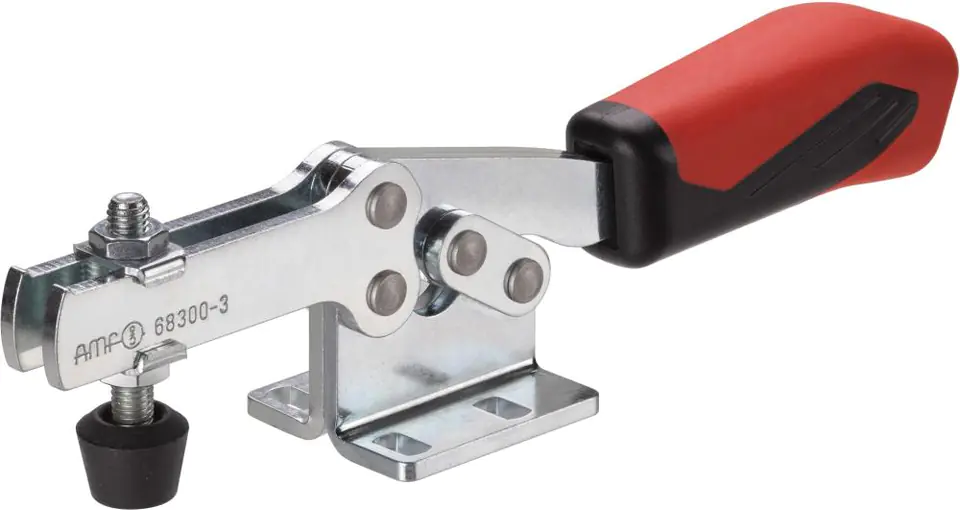

Horizontal plus clamp

Design: quick-clamping pressure, horizontal, with increased clamping force, open pressure arm and horizontal foot. Galvanized and passivated, with stainless steel rivets and lubricated bearing points. Oil-resistant handle with a large grip surface. Protection against loss of the pressure screw at the end of the pressure arm.
Scope of delivery: complete with heat-treated, galvanized pressure screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
