Quick clamping pressure, horizontal, plus Wlk. 3 AMF

€42.32
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
551716 / 4020772001384

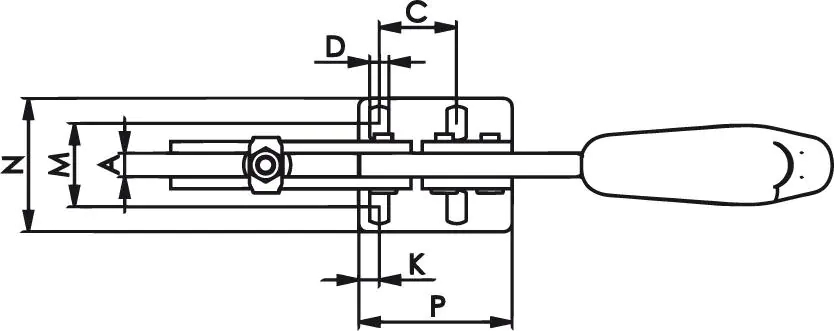

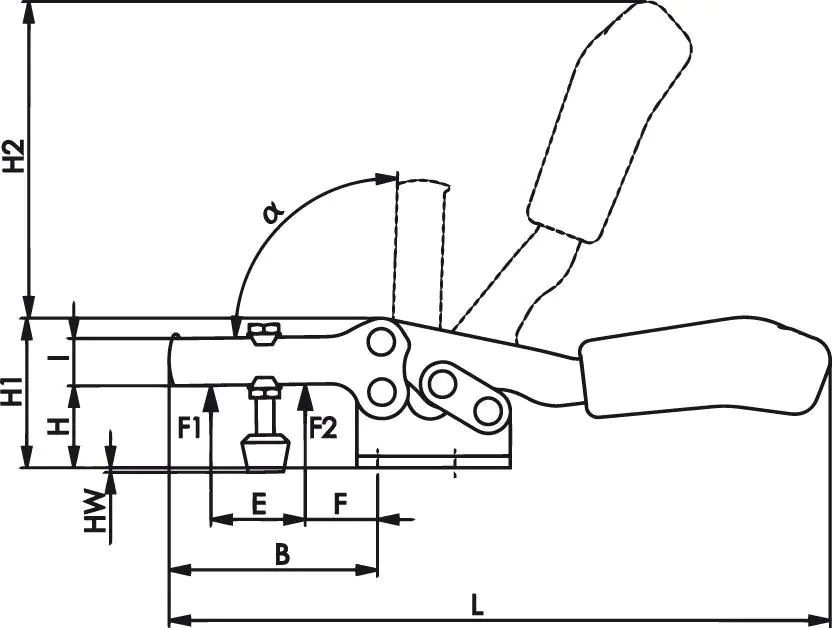

Specification

A:8
And:18
B:78
C:26
D:6,5
E:43
F:22
F1:2.5 kN
F2:4 kN
H:33,5
H1:58
H2:112
Hw max.:13
Hw min.:–1
K:6,5
L:242
M:25.5-36 mm
N:47
P:52,5
Pressure screw:M8 x 58
Scales:560 g
Size:3

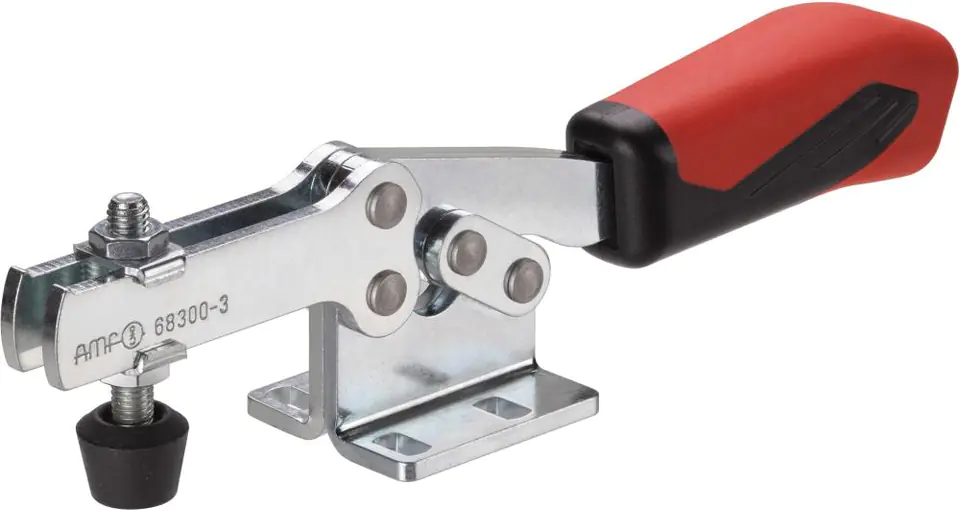

Horizontal plus clamp

Design: quick-clamping pressure, horizontal, with increased clamping force, open pressure arm and horizontal foot. Galvanized and passivated, with stainless steel rivets and lubricated bearing points. Oil-resistant handle with a large grip surface. Protection against loss of the pressure screw at the end of the pressure arm.
Scope of delivery: complete with heat-treated, galvanized pressure screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
