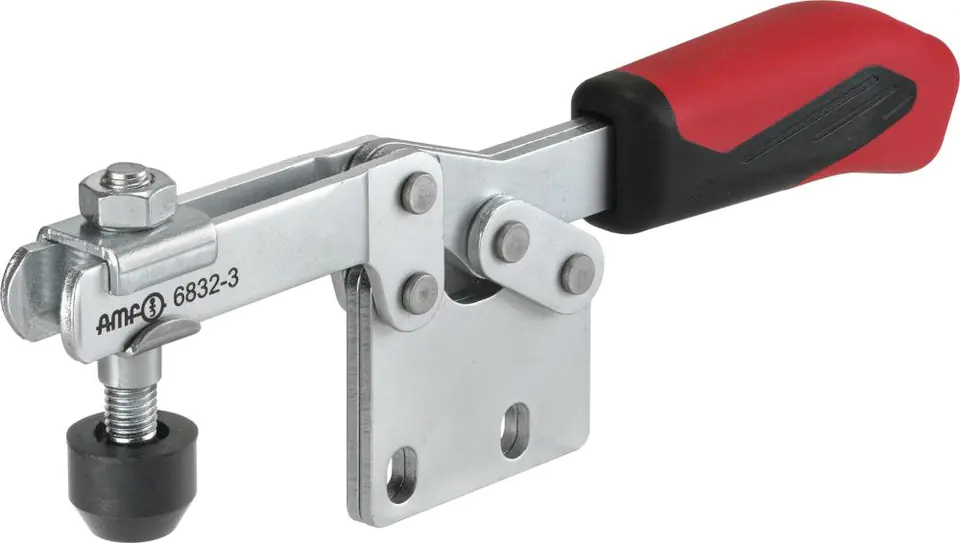

Quick clamping pressure, horizontal 6832 wlk. 3 AMF

€29.44
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
93237 / 4020772093235

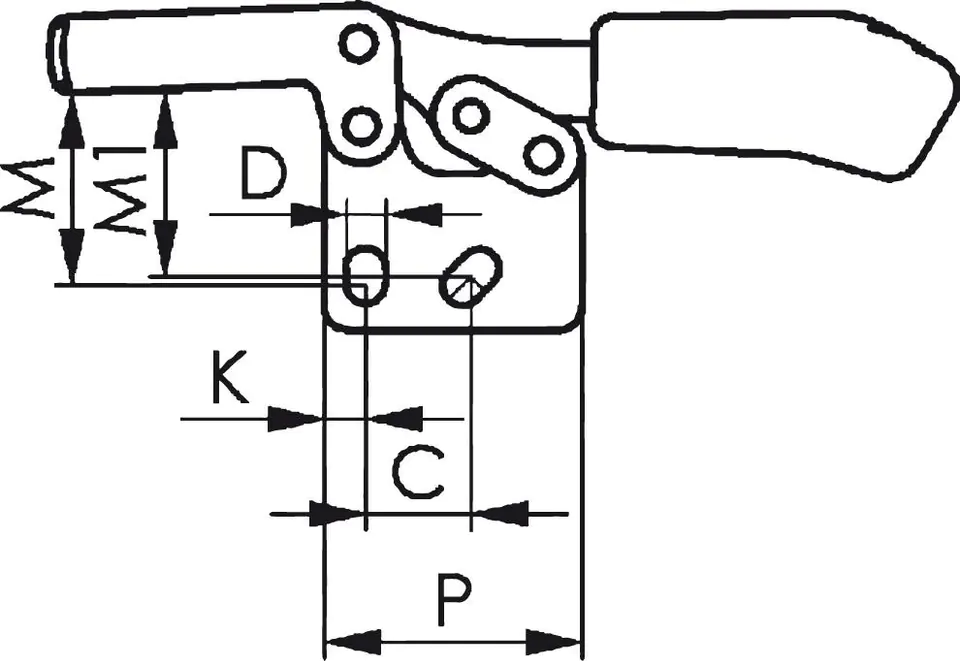

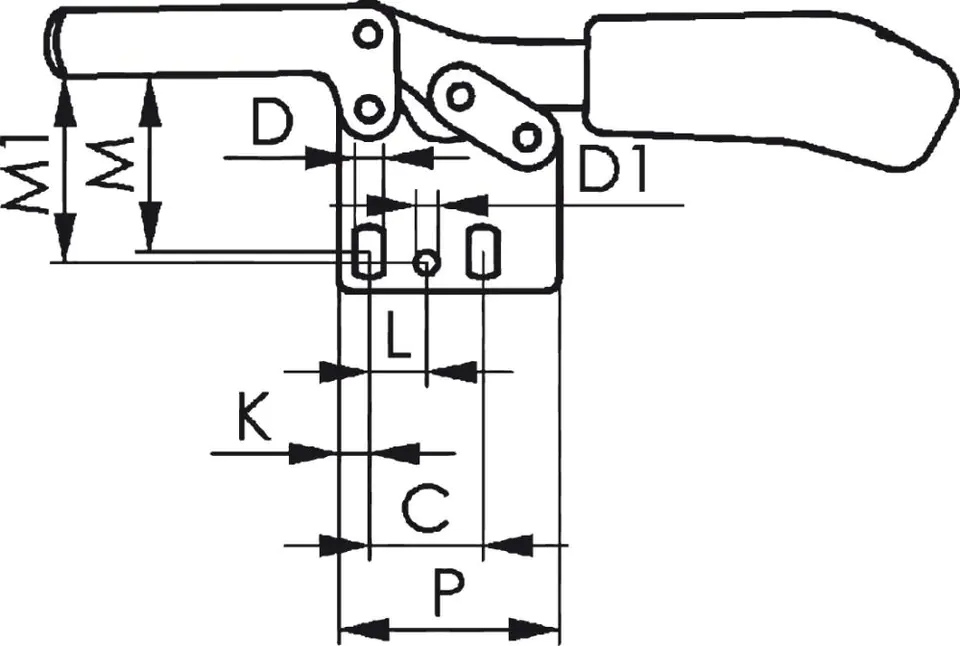

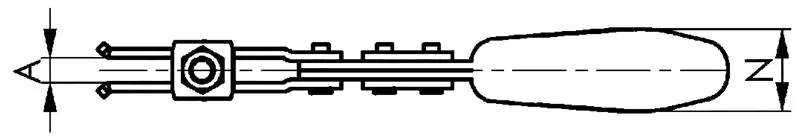

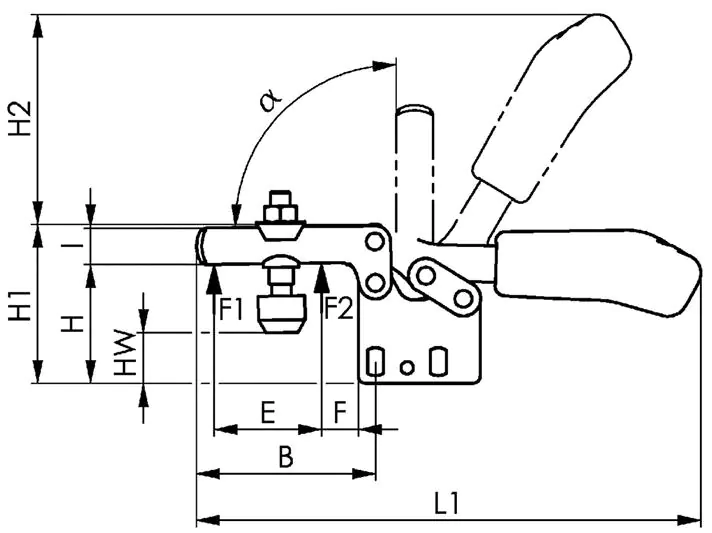

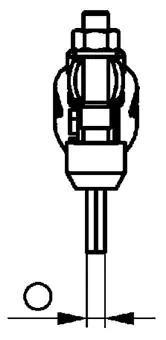

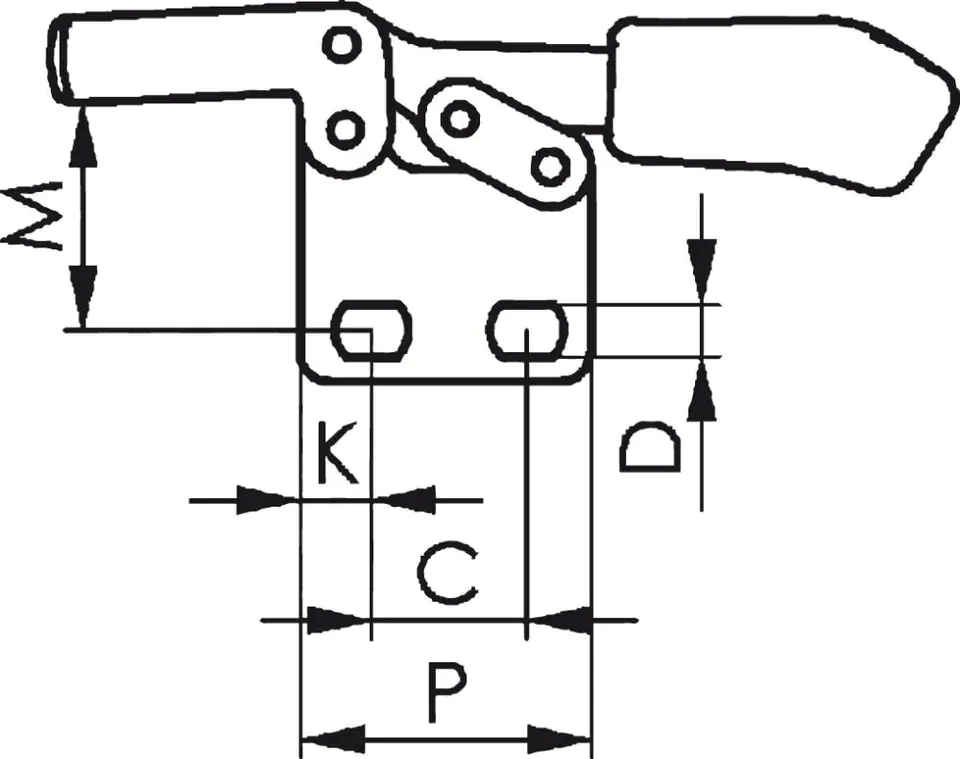

Specification

A:8
Alpha:90°
And:15
B:73
C:25,7
D:6,5
D1:5,1
E:38,5
F:14
F1:1.8 kN
F2:2.5 kN
H:49
H1:65
H2:86
Hw max.:26
Hw min.:14,5
K:7
L:13
L1:206
N:27
P:50
Pressure screw:M8 x 45
Scales:320 g
Size:3

Quick clamping, horizontal, with vertical foot

Design: quick-clamping pressure, horizontal, with open pressure arm and vertical foot. Galvanized and passivated. Stainless steel rivets move in diffusion-hardened bearing sleeves; Due to lack of space, it does not apply to sizes 0 and 1. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Safety clamping element with finger protection. Protection against loss of the pressure screw at the end of the pressure arm.
Application: for fixing on web and for welded structures.
Scope of delivery: complete with heat-treated, galvanized pressure screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
