Quick clamping pressure, horizontal 6830 wlk. 4 AMF

€37.81
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
93047 / 4020772093044

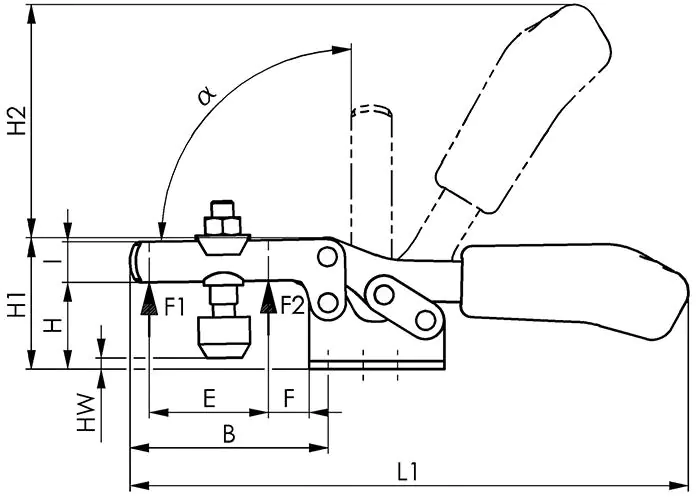

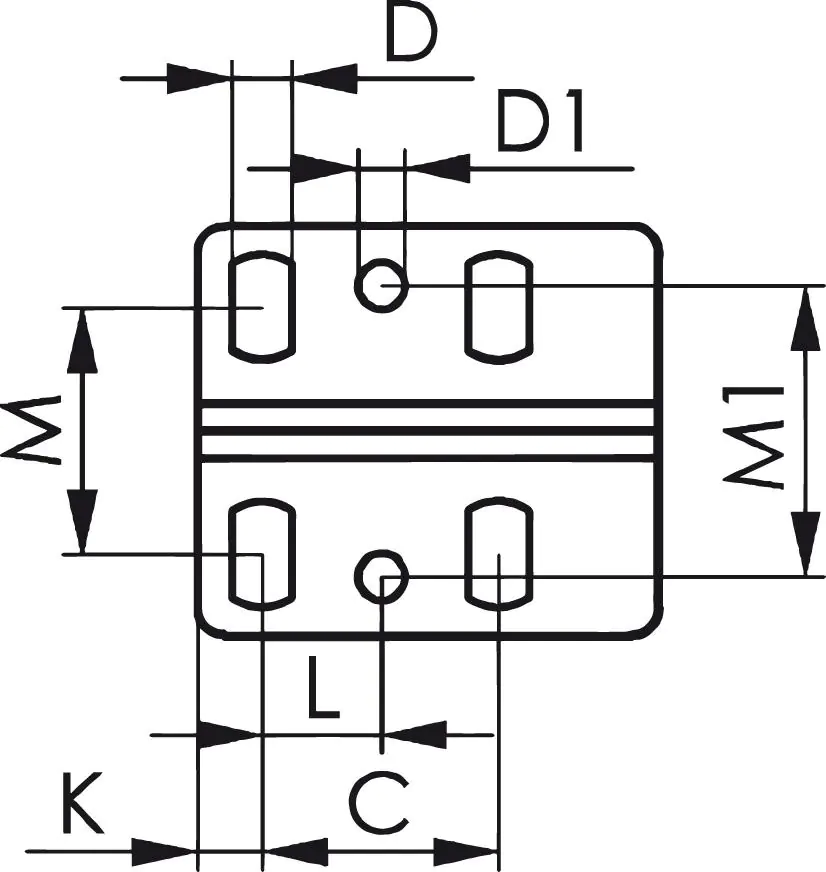

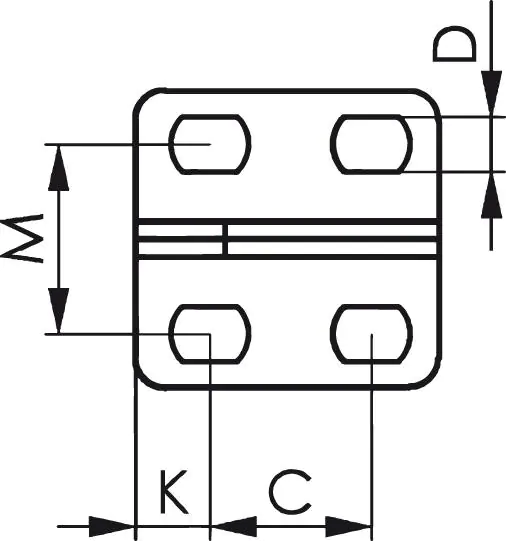

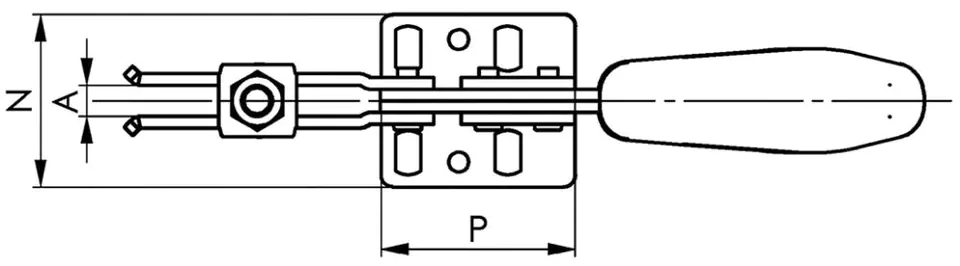

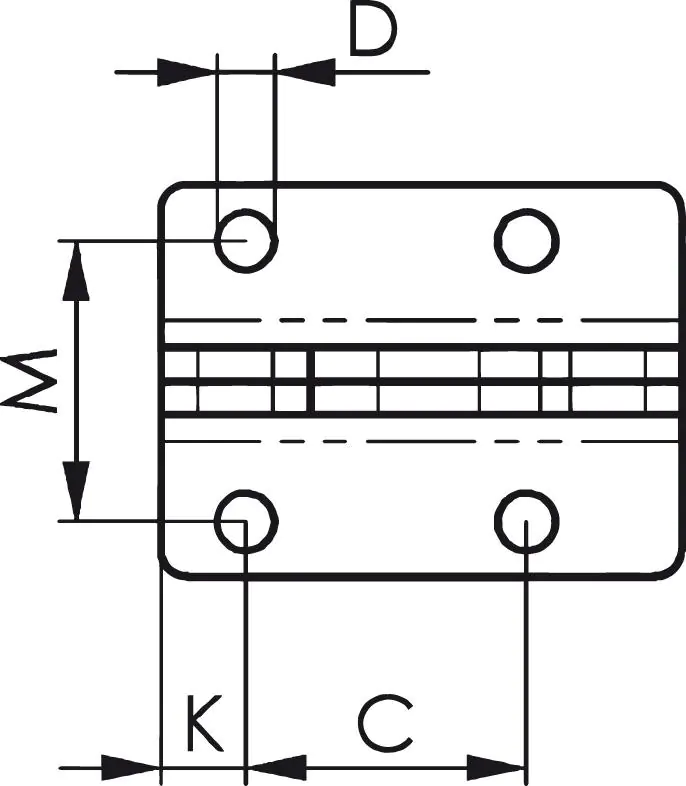

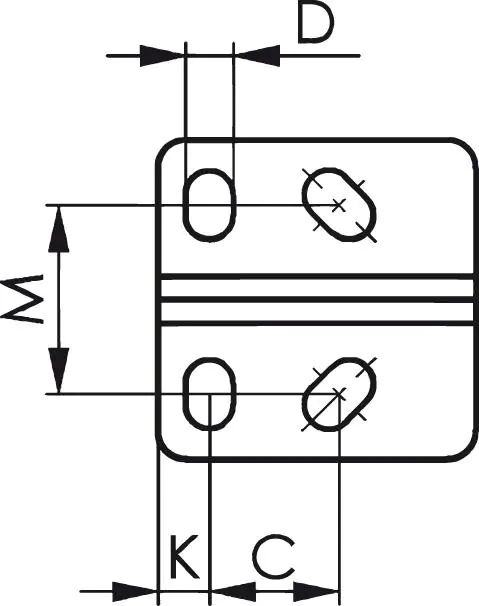

Specification

A:10
Alpha:90°
And:20
B:113
C:41
D:8,5
D1:8,5
E:63
F:27
F1:2 kN
F2:3 kN
H:45
H1:75
H2:126
Hw max.:24
Hw min.:–4
K:8
L:20,5
L1:287
M:29–43
M 1:43
N:58
P:57
Pressure screw:M8 x 65
Scales:700 g
Size:4

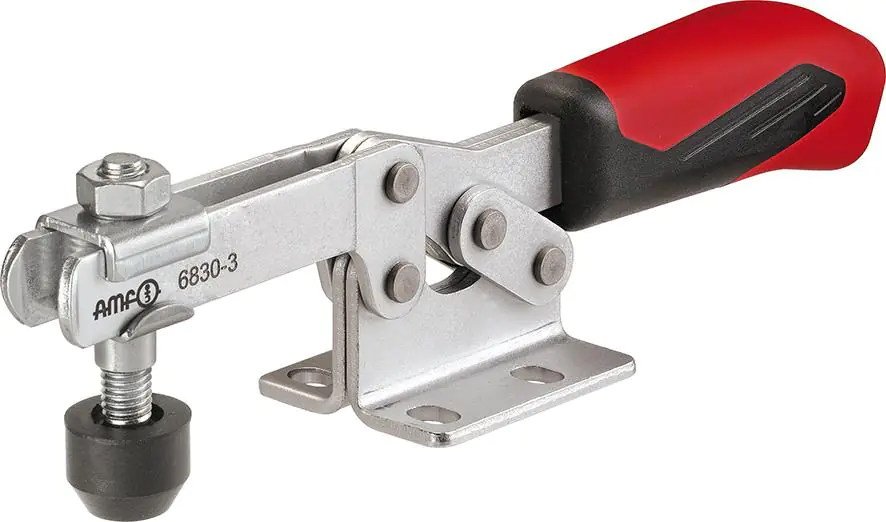

Quick clamping, horizontal, horizontal, galvanized and passivated

Design: quick-clamping pressure, horizontal, with open pressure arm and horizontal foot. Galvanized and passivated. Stainless steel rivets move in diffusion-hardened bearing sleeves; Due to lack of space, it does not apply to sizes 0 and 1. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Safety clamping element with finger protection. Protection against loss of the pressure screw at the end of the pressure arm.

Scope of delivery: complete with heat-treated, galvanized pressure screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
