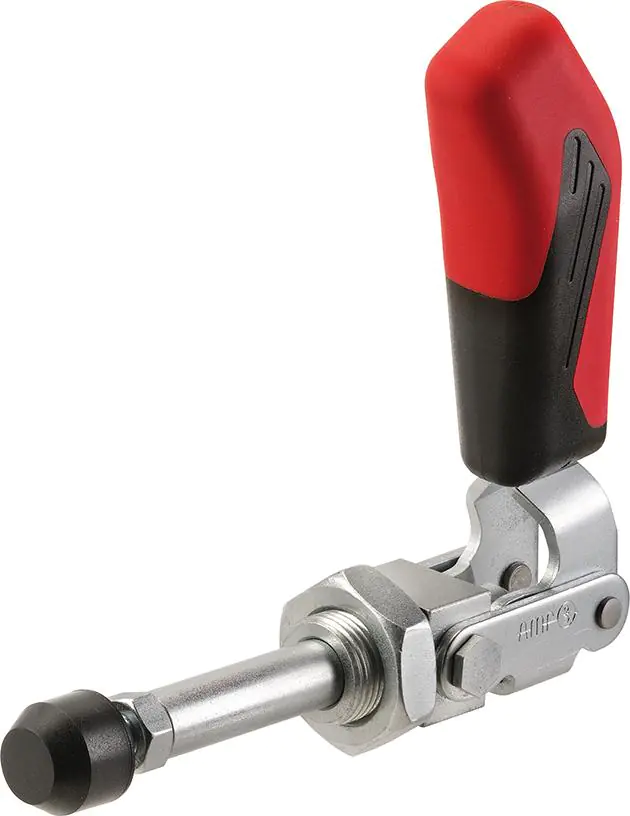

Quick clamping front, with sliding bar wlk. 3.tuple AMF

€35.50
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
94318 / 4020772094317

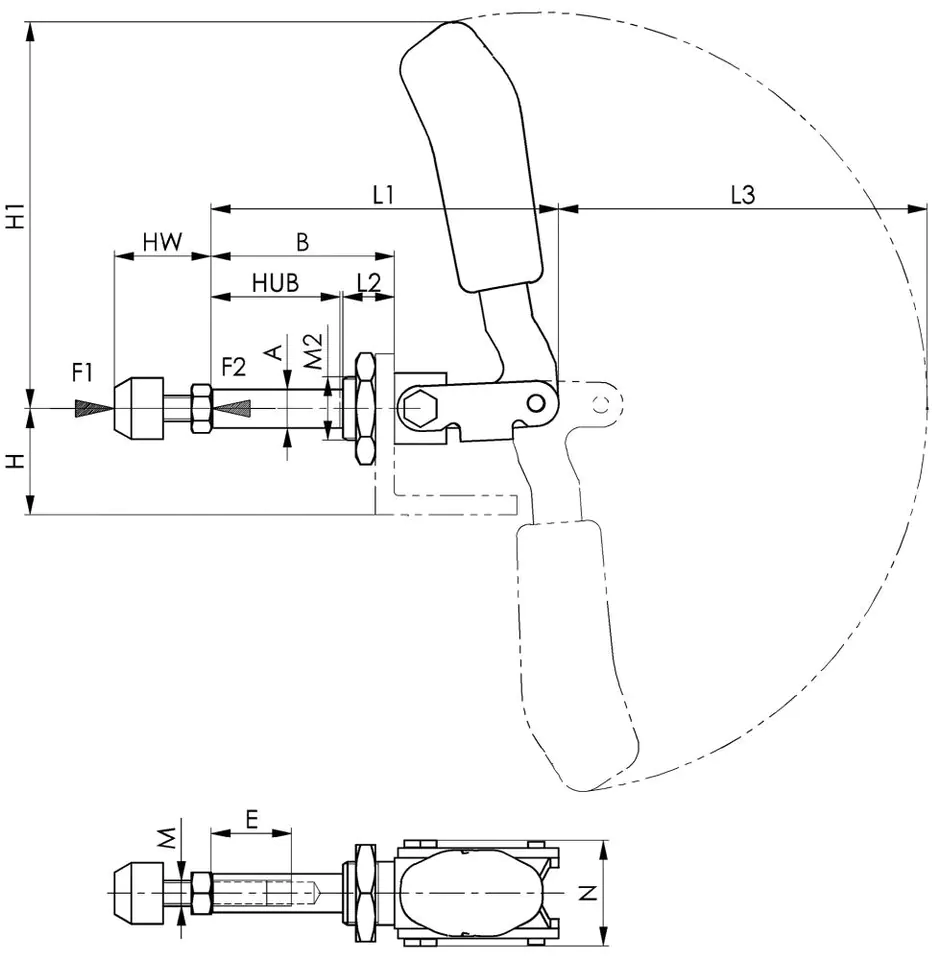

Specification

A:12
B:57
E:25
F1:2.5 kN
F2:2.5 kN
H:33
H1:123
Hw max.:35
Hw min.:22
Jump:40
L1:108
L2:16
L3:115
M:M8
M2:M20 x 1.5
N:33
Pressure screw:M8 x 35
Scales:320 g
Size:3

Quick clamping front, with sliding bar, short construction

Design: pressing and tightening pressure, short construction. Long sliding bar guide with clamping thread and nut. Galvanized and passivated. Stainless steel rivets. Screws fit heat enhanced. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components.
Application: use as pressing and tightening pressure. For mounting on sheet metal walls. In addition, the quick-clamping pressure with sliding bar can be directly screwed into the bodies of devices with a thread from the front. Flange mounting with an angle foot is also possible.
Scope of delivery: complete with heat-treated, galvanized pressure screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
