Quick clamping chuck, precision 3-16mm B16 RÖHM

PLN 810.04
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Wed, Apr 23 - Mon, Apr 28
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Röhm
Product code:
871016 / 4019208009438

Specification

Length after folding:106.8 mm
Length after opening:96.5 mm
Mount:B 16
Mounting range:3-16 mm
Outer diameter:55 mm

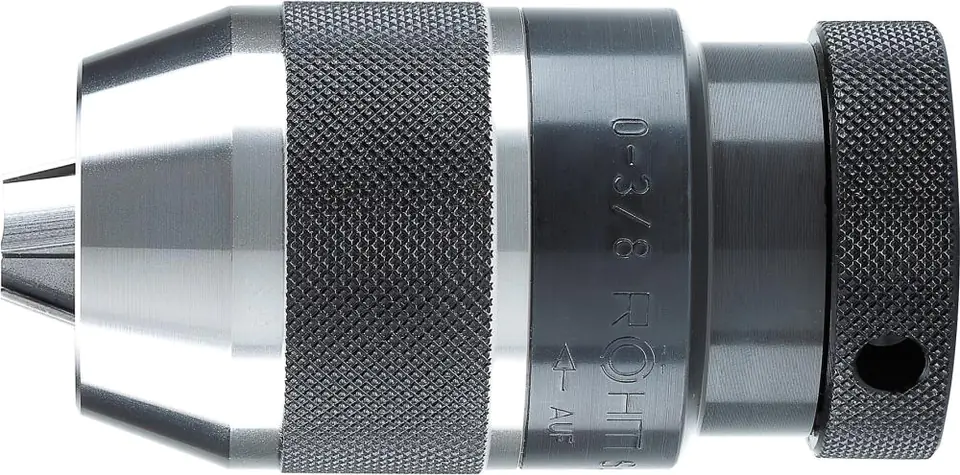

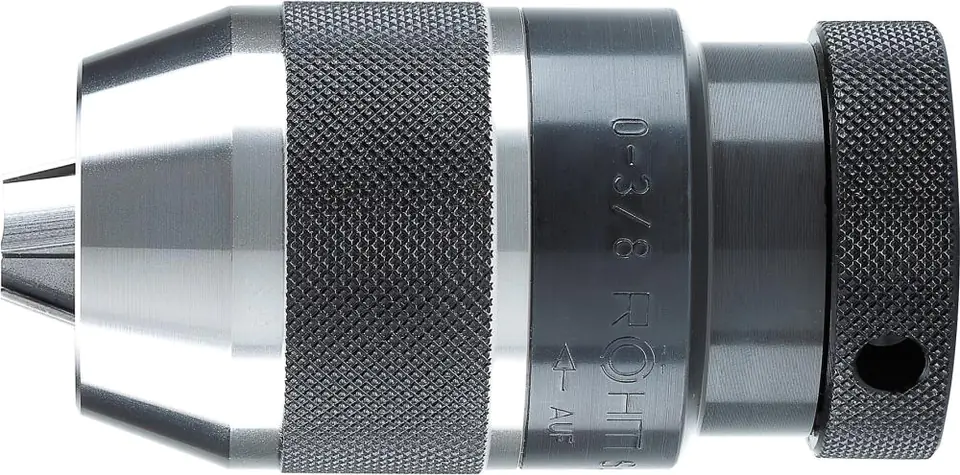

Quick clamping chuck, precision

Design: with conical socket, keyless and self-locking. with a pointed sleeve for a slight radial runout (0,05 mm). All wearing parts are hardened.
Application: thanks to automatic tensioning, it is particularly suitable for high rotational speeds on CNC-controlled drilling and milling machines, on special drilling and milling machines and on production drilling machines.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
