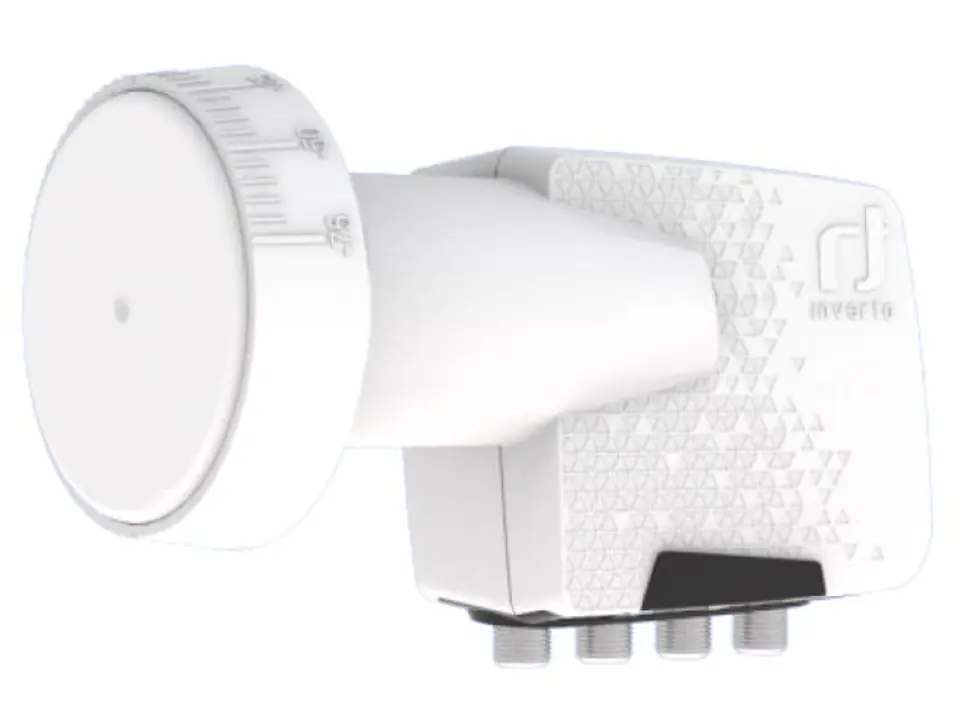

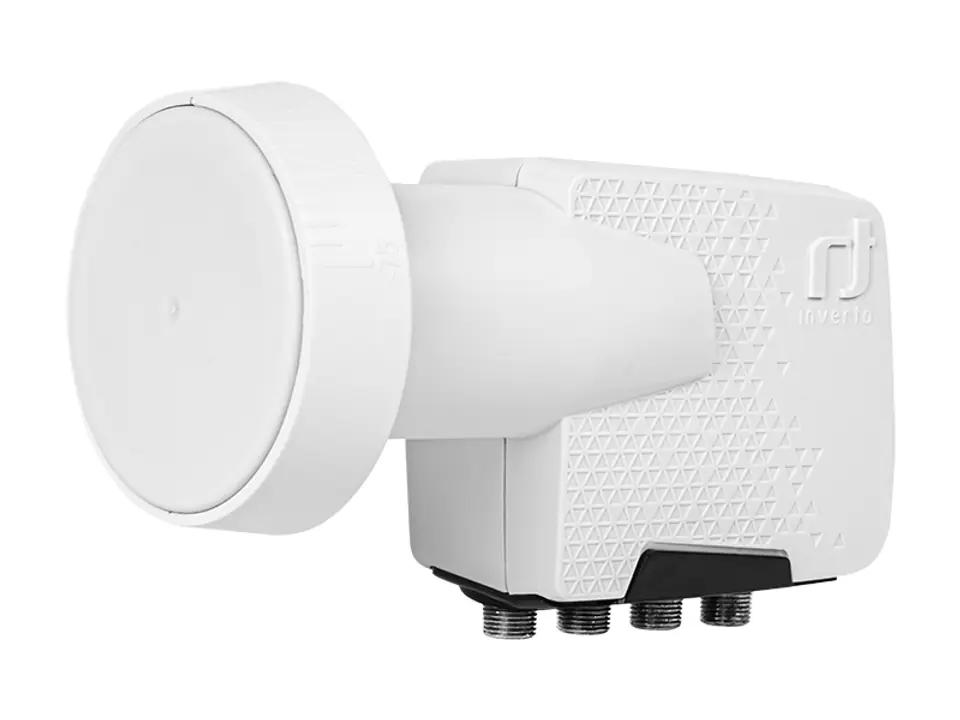

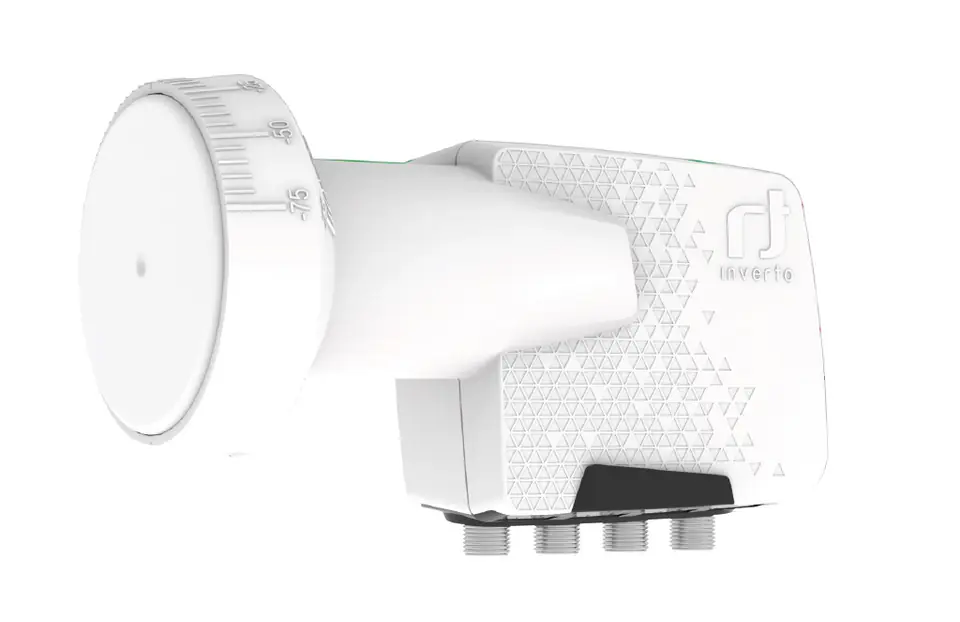

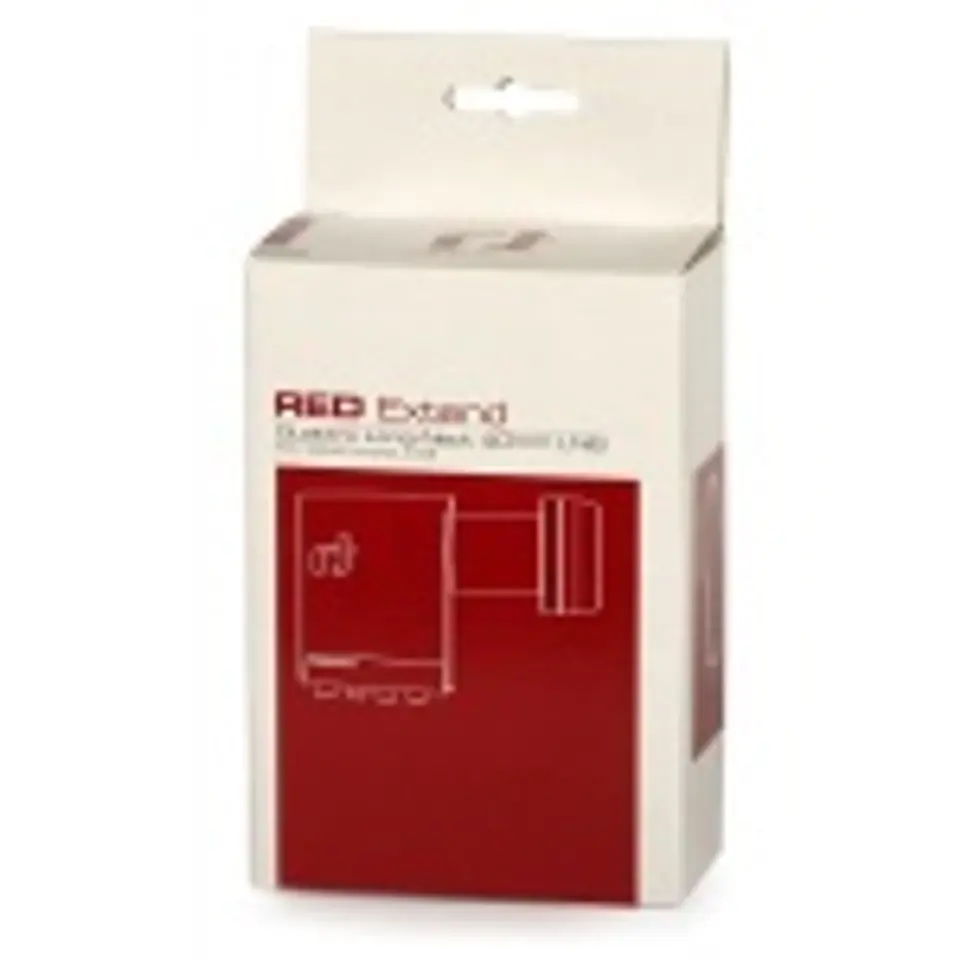

Designed specifically for the European DTH markets, this converter provides optimized reception capabilities and is designed to meet the need to support multiple LNB on a single-channel antenna. The converter allows you to receive signals from one satellite and distribute it using a Multiswitch to many set-top boxes and is ready for transmission in high resolution and provides excellent Noise Figure performance. Manufactured to the highest quality standards in the industry and designed to meet strict specifications, this converter is the ideal solution for receiving satellite TV throughout Europe.
Main features of quattro
Low phase noise, compatible with DVB-S2 (HD and UHD)
Low noise level
Low power consumption
High cross-polarity insulation
High frequency stability
Technical specification of quattro converter
Input frequency range 10.7GHz~12.75GHz
Output frequency range 950MHz~2150MHz
Low frequency LO band 9.75 GHz
High frequency LO band 10.6 GHz
Noise number 0.3 dB typical (max. 0.7 dB)
FREQUENCY accuracy LO at 25°C ±500 kHz max.
Temperature drift LO ±1.0 MHz max.
Phase noise LO @ 10 kHz -80 dBc/Hz max.
Conversion gain 55 dB min.
Gain ripple (26 MHz band) ±0.75 dB
Gain variability (full band) ±4 dB
Image rejection 40 dB min.
3rd order intermodulation - ICP3 10 dBm min.
1 dB (at the exit) 0 dBm min.
Cross-polarity isolation 22 dB min.
VSWR 2.5 output: 1
In the band false level -60 dBm max.
Current consumption 240 mA max. @ 11 VDC ~ 20 VDC
Temperature -30°C~+60°C
Output impedance (LNB2) 75 Ω

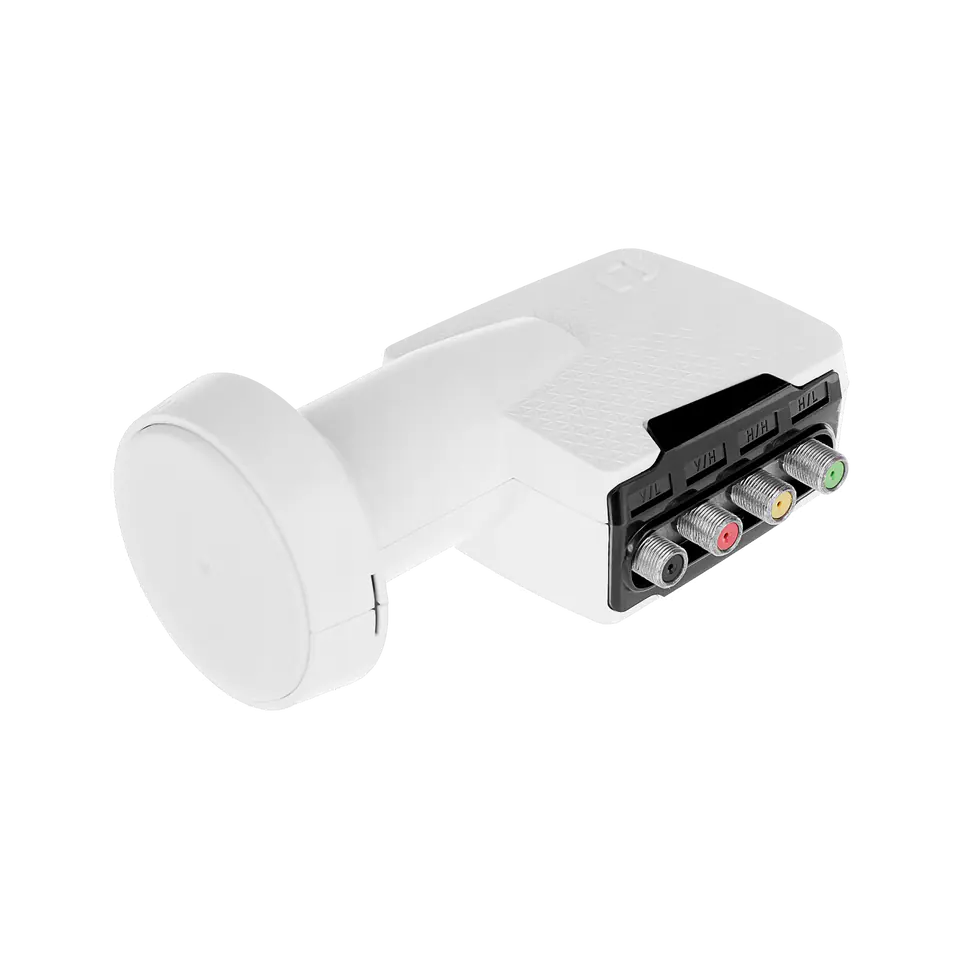

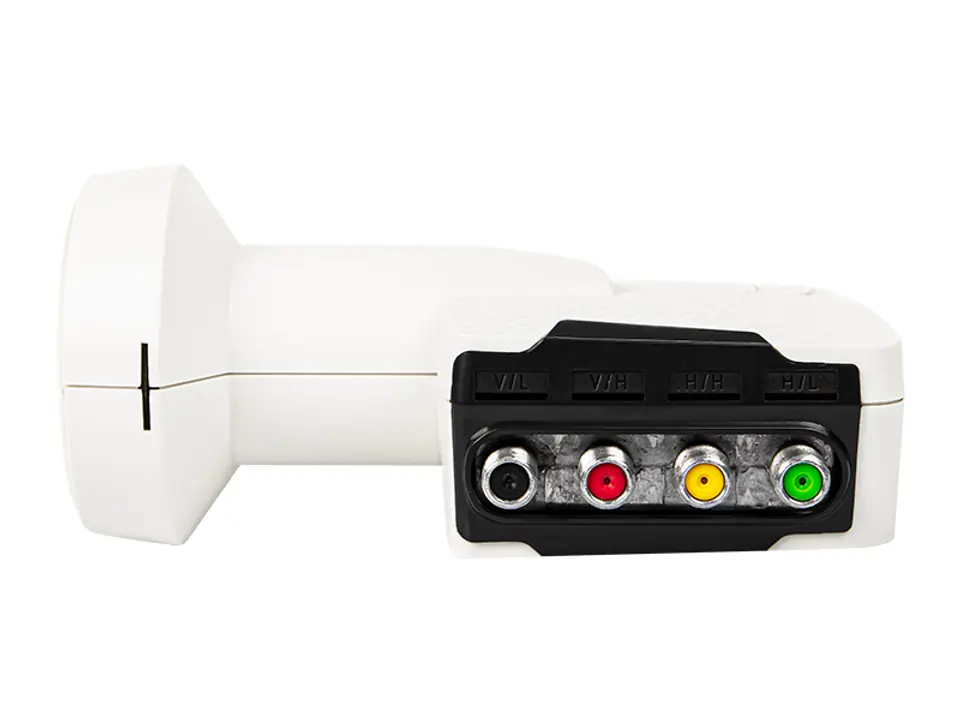

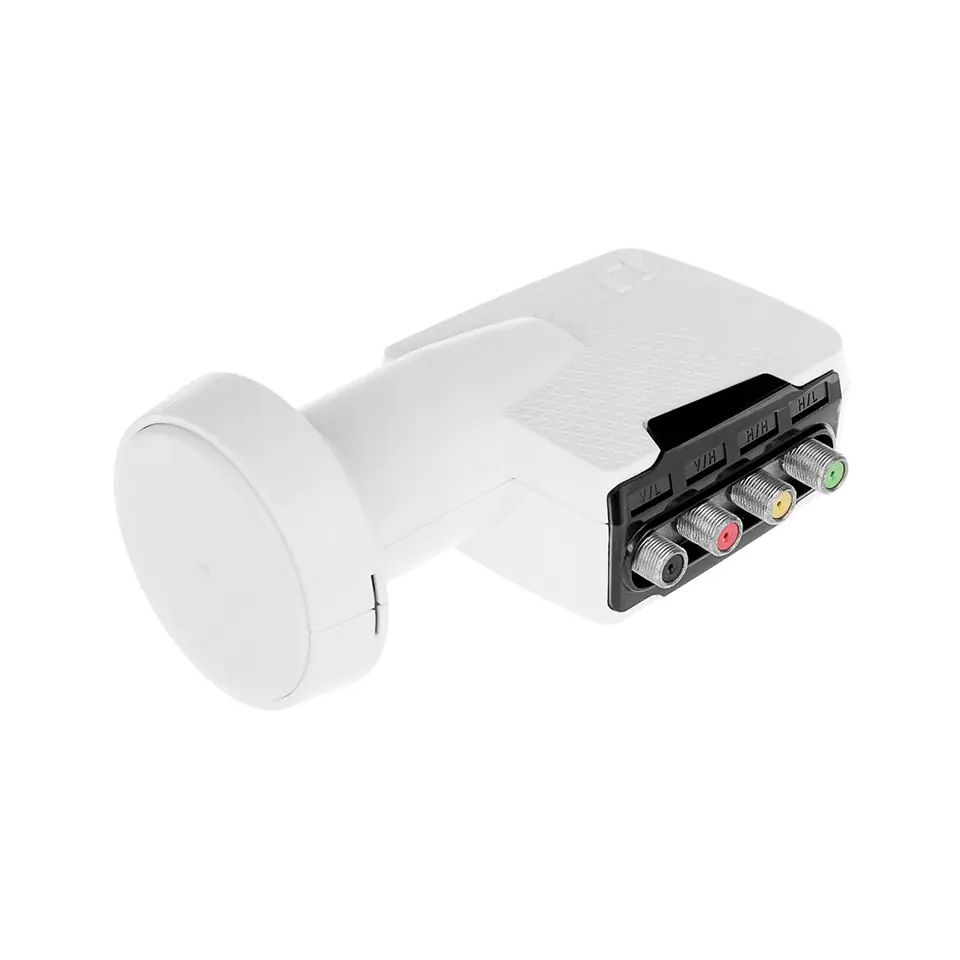

Output connector type Type F (female)
F/D dish ratio 0.6
Weight 224 g
