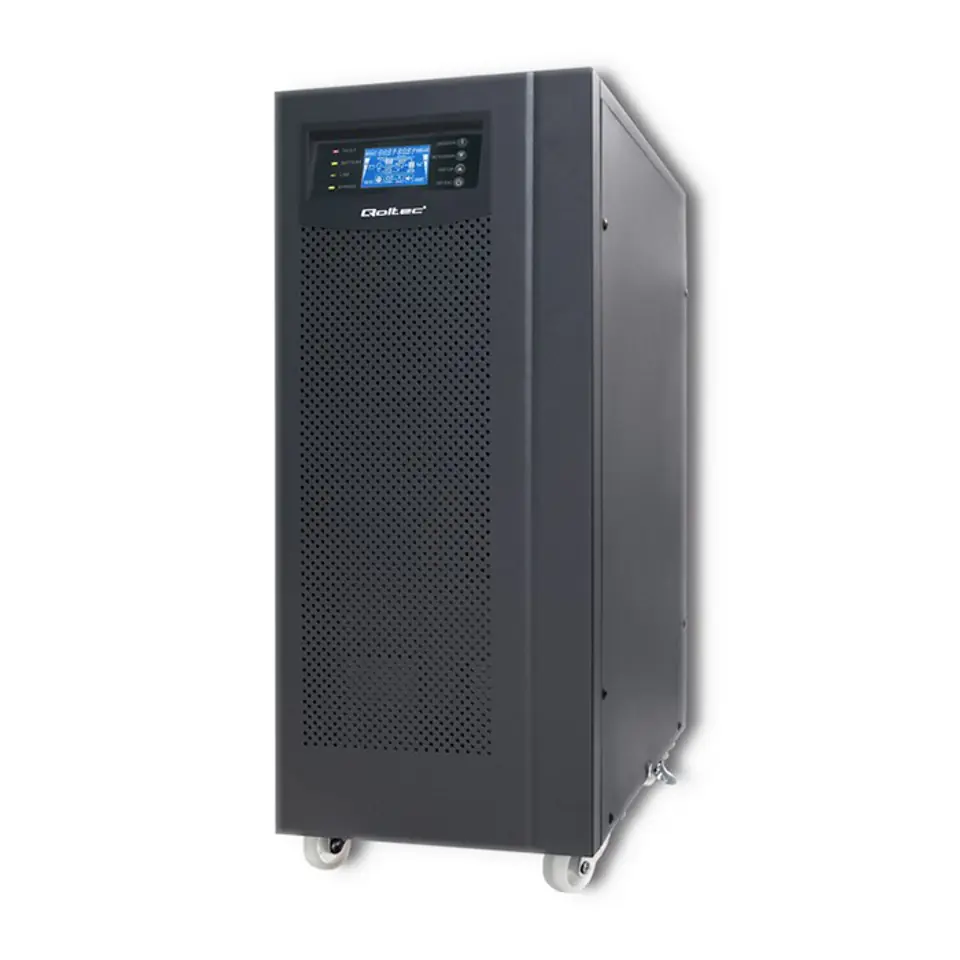

Each of us has often had to deal with voltage drops at home or at work. Sometimes the only result is that you have to turn your computer back on. But how many times as a result of such an event have you lost important data not saved to the disk or encountered a device failure? If the above situations are not alien to you, we have a solution for you, thanks to which the problems of fades or voltage drops will not concern you. The Qoltec UPS is a solution that provides a constant supply of energy necessary for the stable operation of your computer or server.
The presented model is equipped with an EPO (Emergency Power Off) module for emergency deactivation of the UPS in the event of fire-threatening events. The device enables remote reception of a signal triggering a blockade in the power transfer to the connected electrical equipment installation. The use of the Emergency Power Off module increases the operability of the system, separates the installation and guarantees the safety of users in crisis situations.

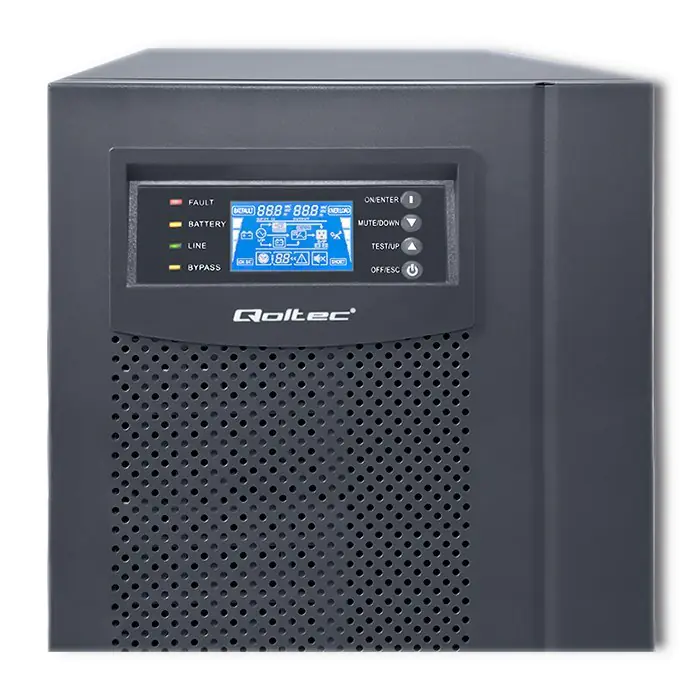

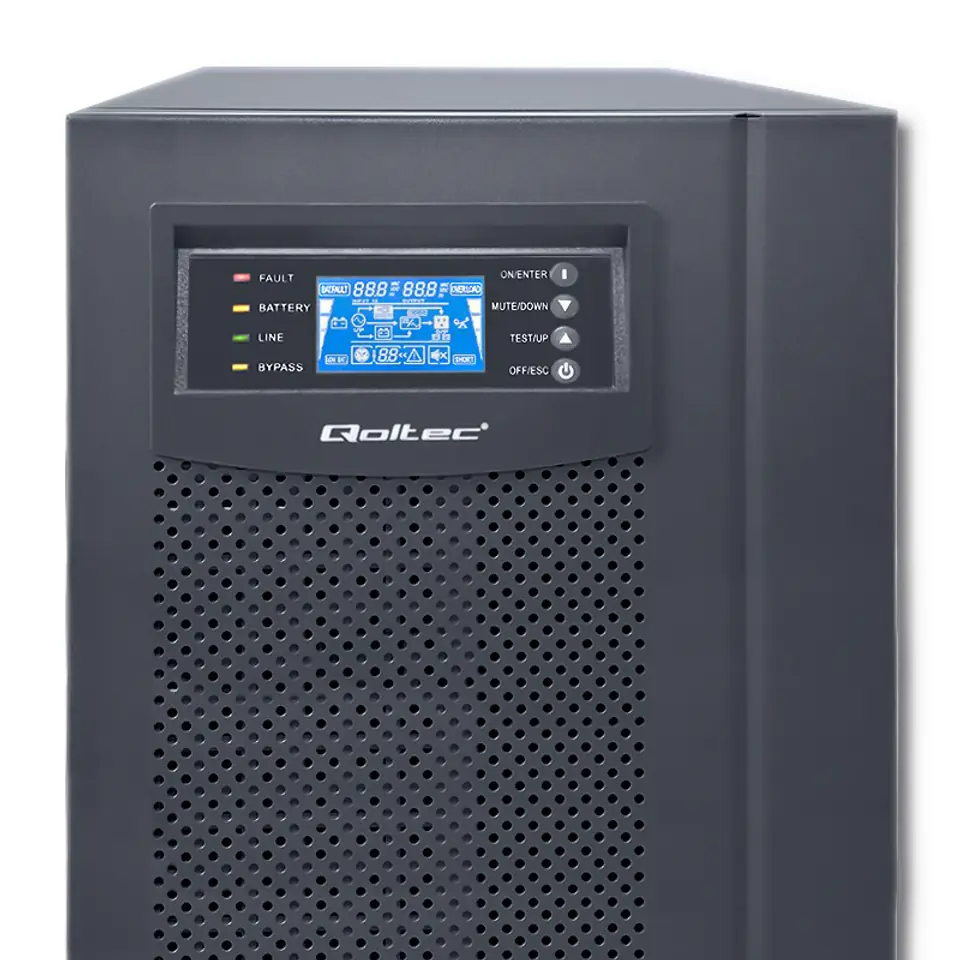

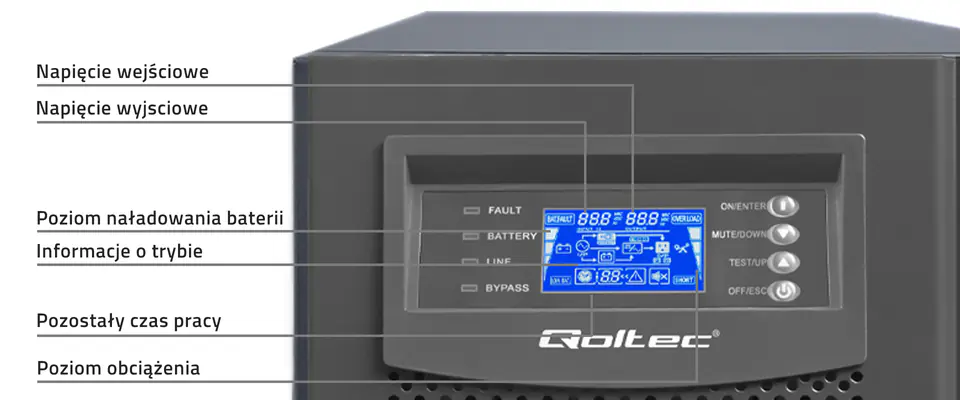

The built-in LCD display gives you free management of the device. You receive real-time information about the status and parameters, thanks to which working with the power supply is easy, fast and reliable.
The UPS is equipped with a maintenance-free battery, guaranteeing you long and stable operation during an emergency power supply to your computer or server. During this time, you will save important data to disk or complete the next level of your game. The process of charging the battery to 100% efficiency, is 8 hours. It has automatic protection and stabilizes when the voltage is too low or high.
Our solution additionally offers:
- pure sine wave - the basis of safety and guarantee of compatibility with any type of power supply,
- protection against overload, short circuit and high temperature,
- double conversion - it is a certainty that your computer or server is supplied with power with stable parameters,
- OFF Mode - ensures forced battery operation without connecting the UPS to the network,
- EPO module (Emergency Power Off) - is a safety that will allow you to remotely turn off the power in emergency situations, e.g. fire,

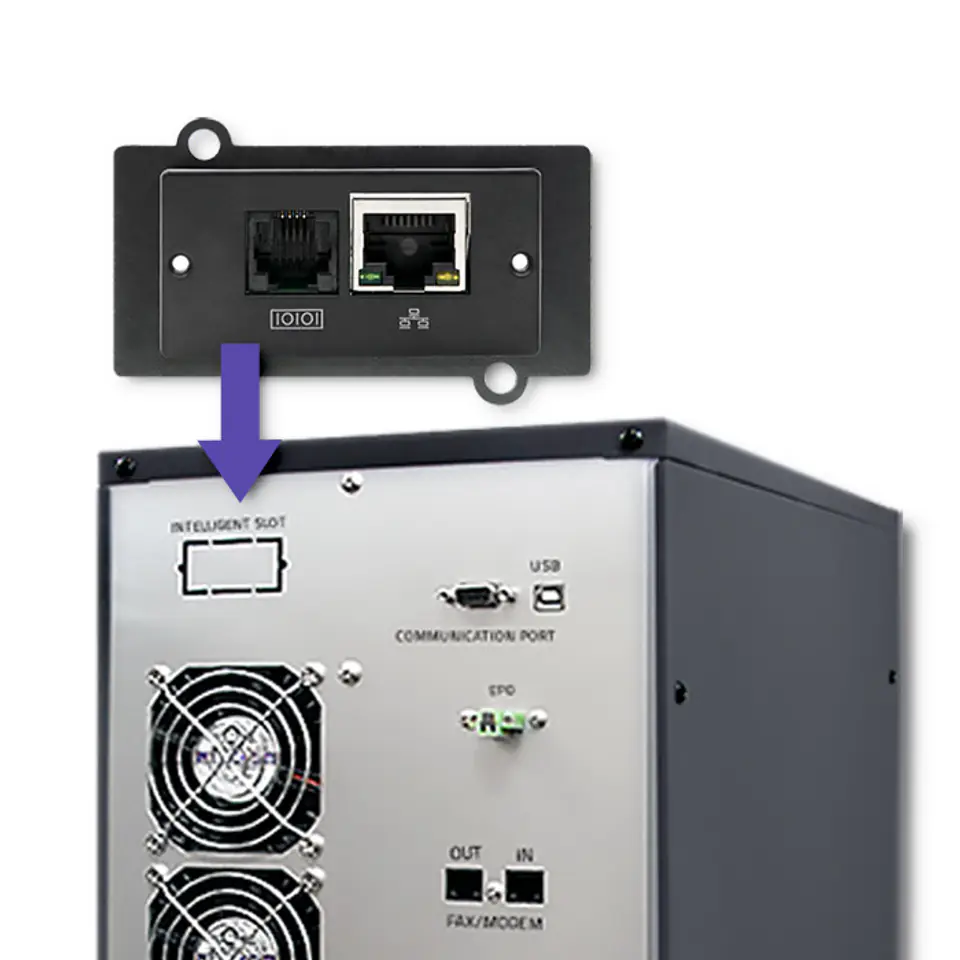

- the ability to mount an SNMP card or connect an SNMP adapter - is a network management standard, thanks to which you can quickly and easily collect information about connected devices or configure their parameters,
- USB port - thanks to the power supply management software, you monitor its operation on an ongoing basis and adapt it to your needs,
- RJ port – 45 – provides protection against overvoltage via LAN.
Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each of the Pure Sine Wave on-line UPS offered by us is covered by a 24-month warranty valid from the date of purchase.
350
650
720
Qoltec
350 x 650 x 720 mm
10 kVA
8 kW
0.8
03:01
Pure sine wave
0 ms (normal←→battery mode)
> 100% alarm off
input: 120 Vac ~ 275 Vac ± 5% (45 Hz - 55 Hz ± 0.5 Hz); output: - 1 phase - battery mode: 220 Vac ± 1% (50 Hz ± 5 Hz);- wired mode (bypass): 80 Vac ~ 285 Vac ± 5% (50 Hz ± 0.5 Hz)
~36.3 A
~50 A
computers, servers
16 x 12V / 7Ah
16
192 volts

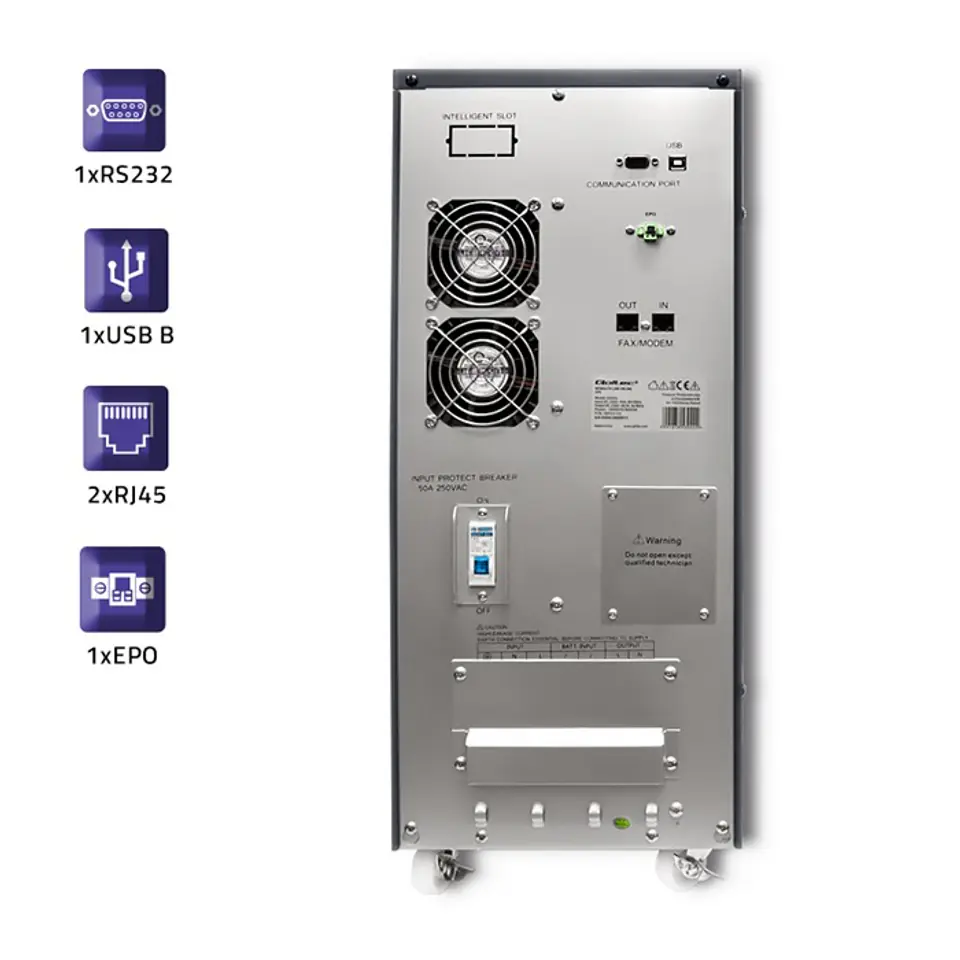

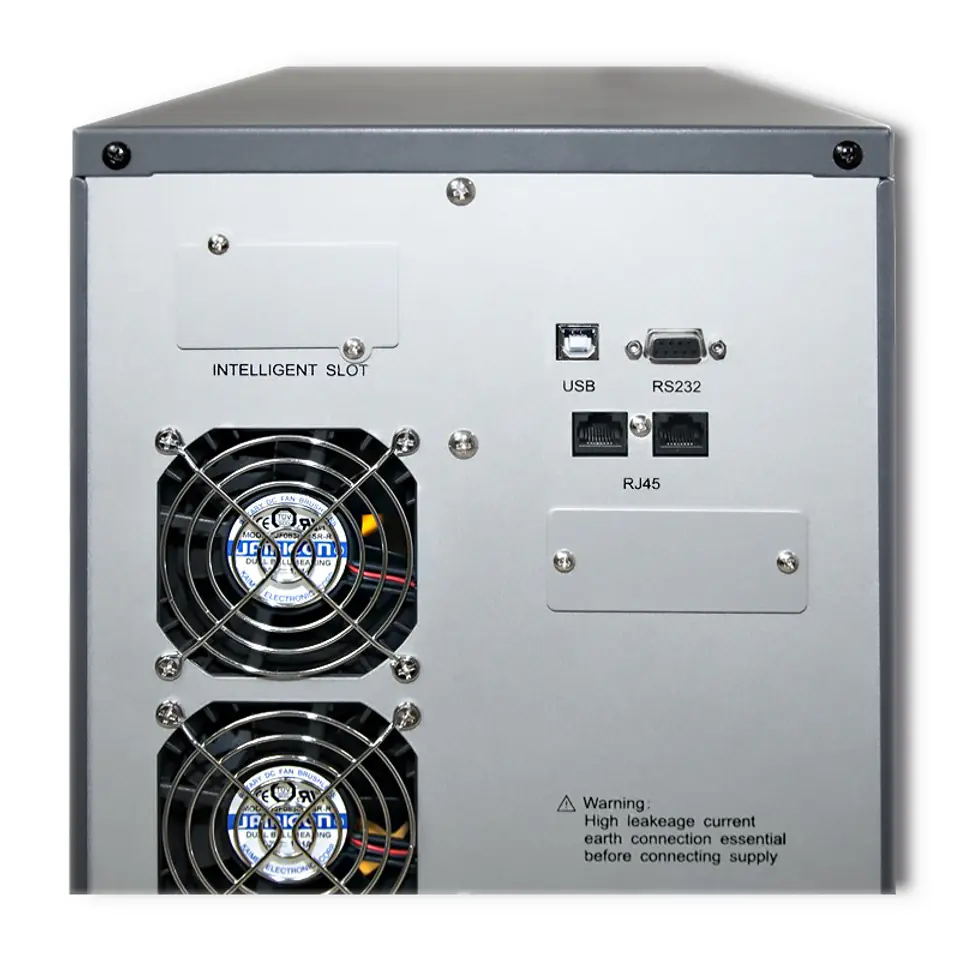

1 x USB (device diagnostic port)1 x RS2322 x RJ-451 x EPO (on request the device can be equipped with EPO)
8 h (for full charge)
0°C ~ +40°C
≤ 50 dB
Before overvoltageBefore overloadBefore short circuitBefore high and low voltage
Data CentersIndustrial and manufacturing environmentsMedical centersUse in places where operational reliability is required.
Uninterruptible network power supplies designed for telecommunications equipment and for automatic data processing equipment, the so-called uninterruptible power supply (UPS). In the event of a power failure, it provides a "reserve" of energy, thus protecting against data loss.

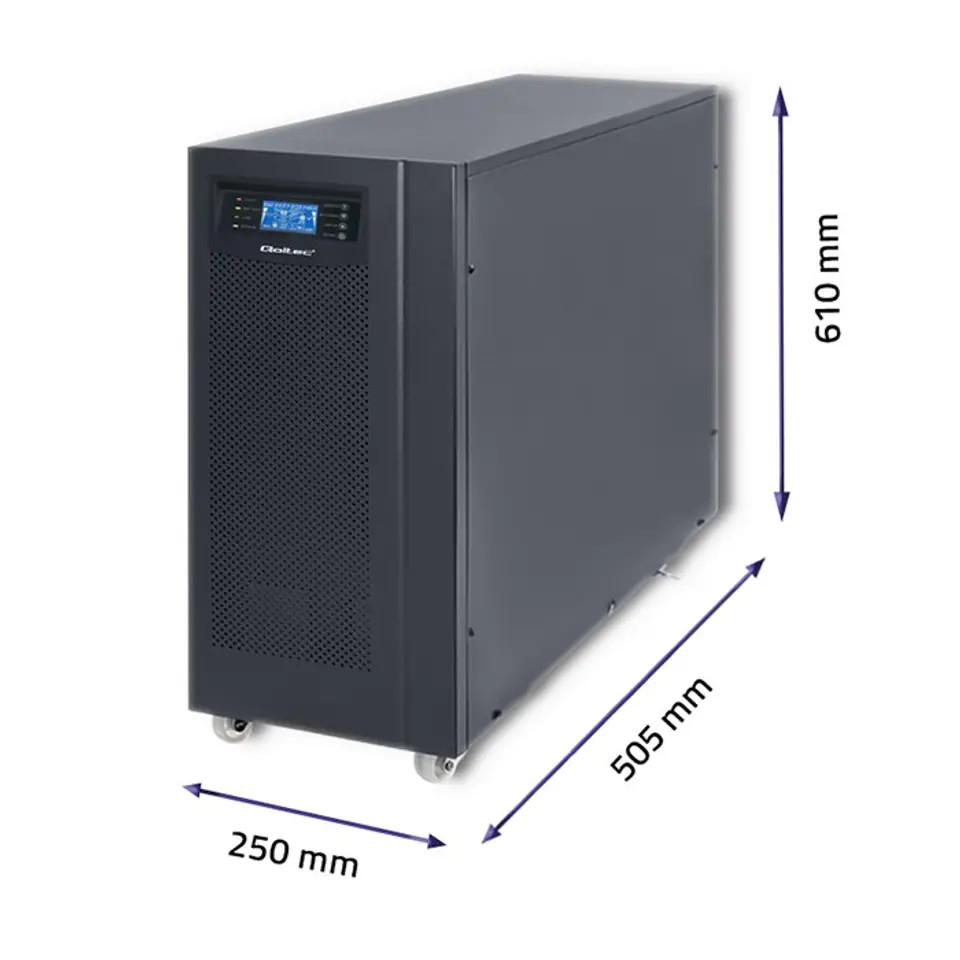

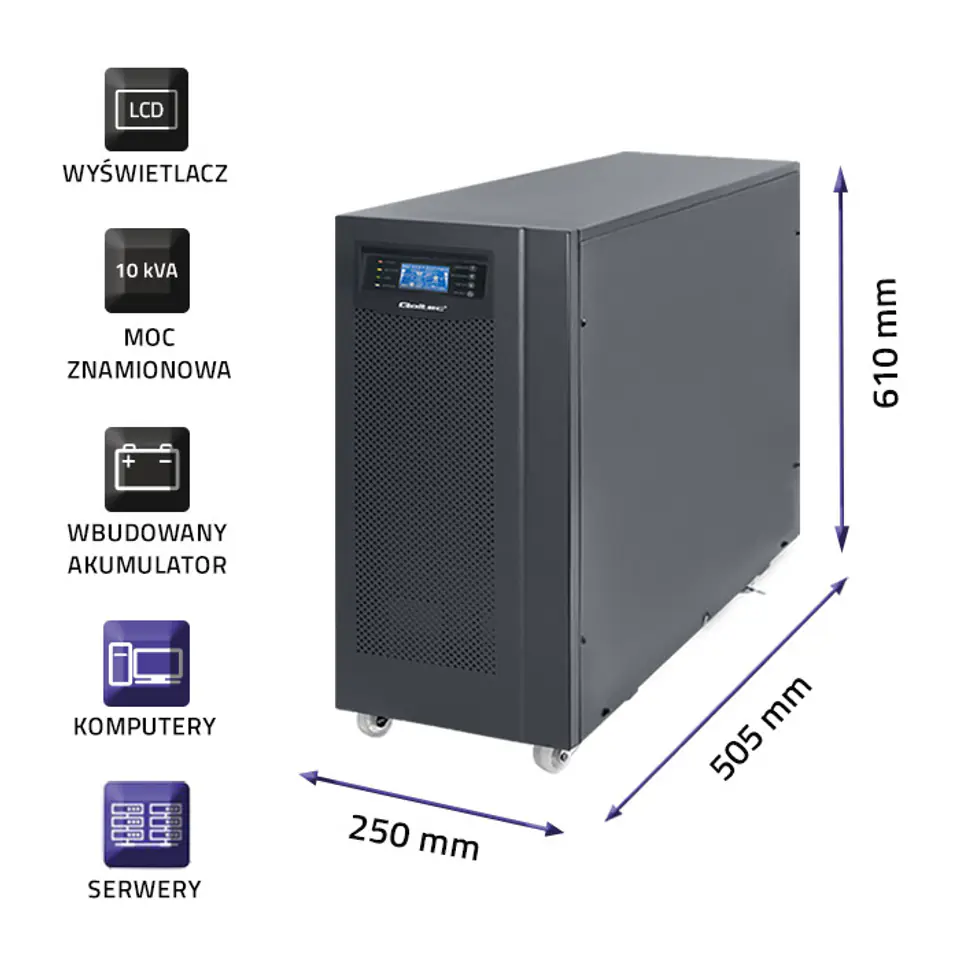

505 x 250 x 610 mm
Black

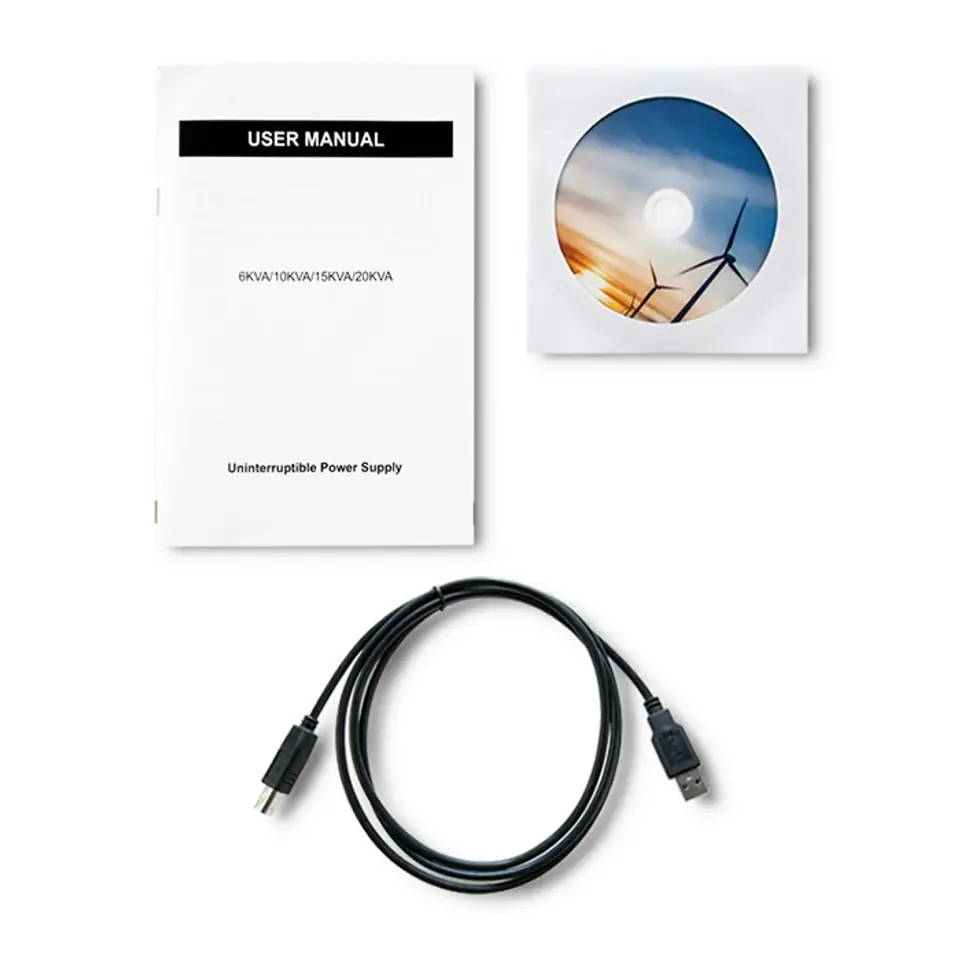

UPSConnection cable USB cableInstruction manualWarranty cardSoftware CD
56.1000 kg
64.0000 kg
24 months
