Qoltec Switch mode power supply LED IP20 | 100W | 12V | 8.3A 0NC

Are you looking for a reliable way to power the LED strip in your home? Or maybe in your company LED modules are an important element of the lighting installation? If so, you've come to the right place. The Qoltec brand has prepared for you a wide selection of modular power supplies that are ideal for both home and office work. Thanks to their diversity in terms of power, you can easily choose the right model for you.
Our device is equipped with modern technologies that provide protection against:
- overvoltage - protects against too low or too high voltage,
- overloads - protects against overloading the power line,
- short circuits - protects against short circuits in the supply circuit.
Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each of the modular power supplies we offer is covered by a 24-month warranty valid from the date of purchase.
Qoltec
103 x 45 x 165 mm
100 watts (Printing)
220 volts - 240 volts
12 volts
8.3 A
50 - 60 Hz
1.89 A / 110 V ; 0.95 A / 220 V
10.8 - 13.2 volts
Start: 65 A / 230 VAC
Overload Suppression Surge Suppression Short Circuit
IP 20
Overload when exceeding 105% of the nominal value - restoration after removal of anomalies
50 ms / 230 VAC ; 10 ms / 115 AC switchable
1000 ms, 30 ms / 230 VAC
10 ~ 500 Hz, 5G 10 min/cycle, Xˎ Yˎ Z each axis 60 minutes
±0.5%
±0.5%
150 mVp-p
80%

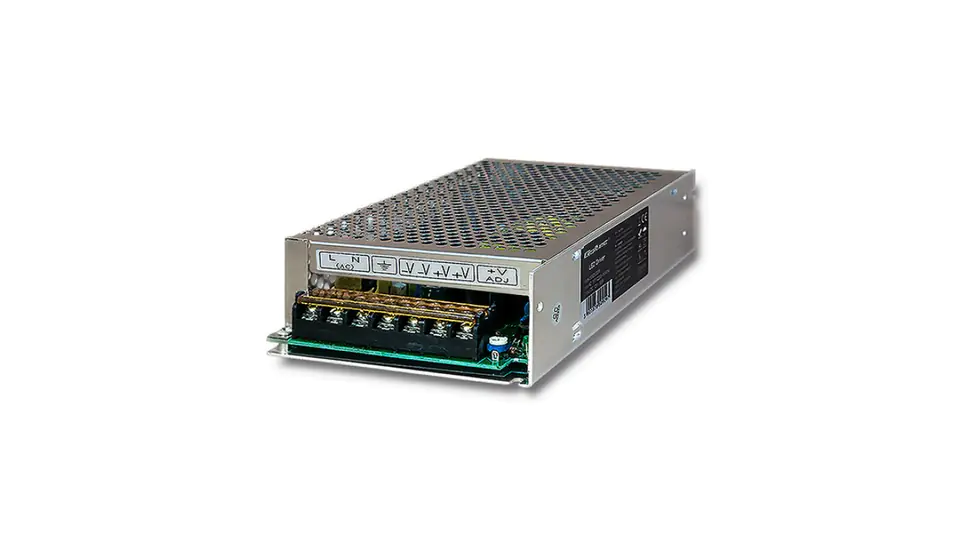

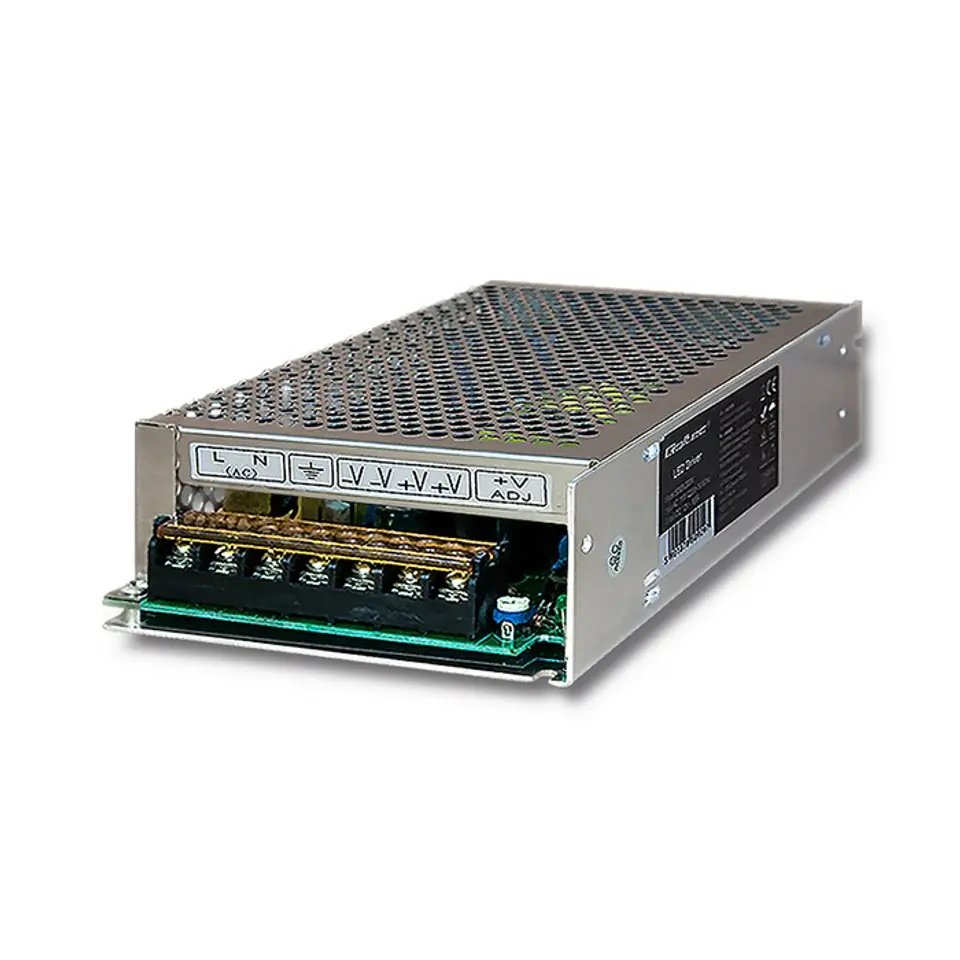

The switched-mode power supply in an aluminum housing converts 230V AC voltage to 12V DC. It is designed for indoor use. Made of electronic components placed on a printed circuit board in a metal housing.
-20°C ~ +60°C
-40°C ~ +80°C
20~90%, non-condensing
98 x 42 x 160 mm
0.3760 kg
0.4080 kg
24 months
