Qoltec LED Power Supply IP67 | 75W | 12V | 6.25A | Waterproof 0NC

Are you looking for a reliable way to power the LED strip in your home? Or maybe in your company LED modules are an important element of the lighting installation? If so, you've come to the right place. The Qoltec brand has prepared for you a wide selection of modular power supplies that are ideal for both home and office work. Thanks to their diversity in terms of power, you can easily choose the right model for you.

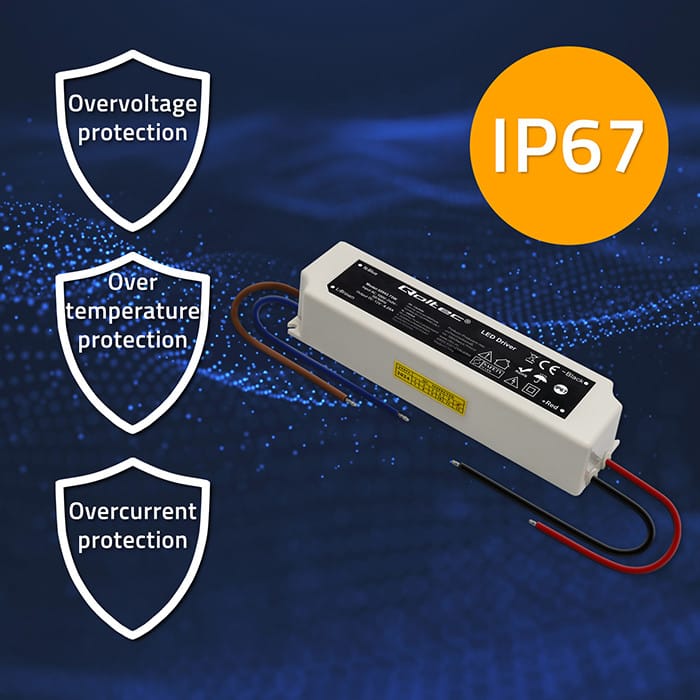

Our device is equipped with modern technologies that provide protection against:
- overvoltage - protects against too low or too high voltage,
- overloads - protects against overloading the power line,
- short circuits - protects against short circuits in the supply circuit,
- overheating – protection begins when the temperature in the transistor exceeds 140°C. After lowering the temperature, the device is automatically restarted.
Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each of the modular power supplies we offer is covered by a 24-month warranty valid from the date of purchase.
Qoltec

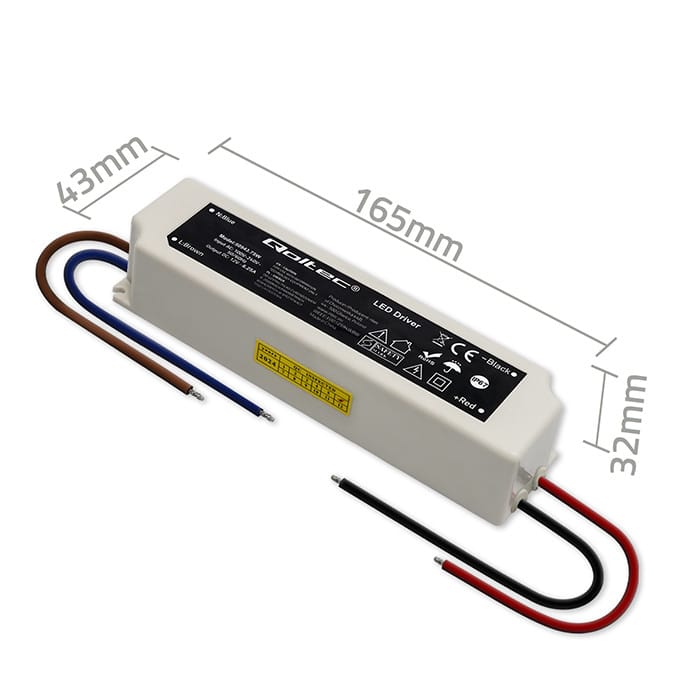

51 x 40 x 193 mm

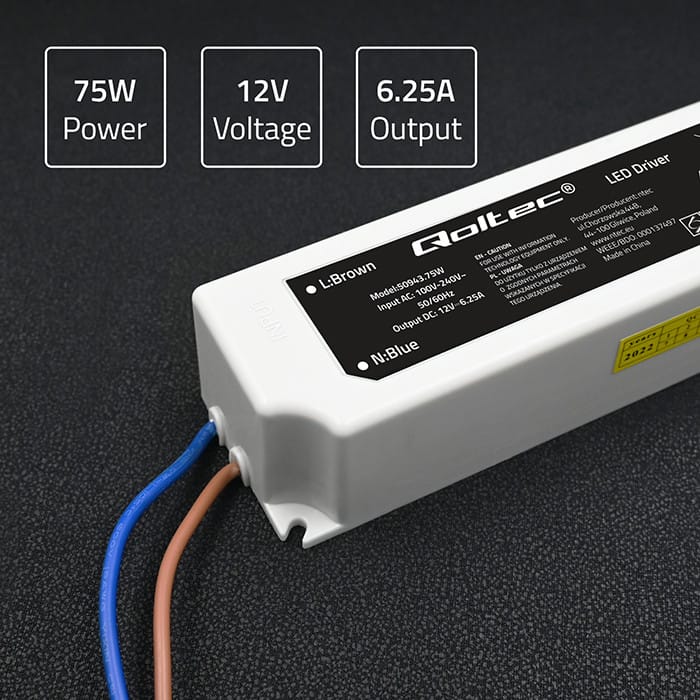

75 watts (Printing)
12 volts
6.25 amps
50 - 60 Hz
0.52 A / 220 V
11.6 - 12.4 volts
Start: 65 A / 230 VAC
Overload Suppression Surge Anti-Short-circuitingAnti-Overheating
IP 67
100 - 240 volts
220 - 240 volts
Overload when exceeding 105% of the nominal value - restoration after removal of anomalies
50 ms / 230 VAC
1000 ms, 30 ms / 230 VAC
10 ~ 500 Hz, 5G 10 min/cycle, Xˎ Yˎ Z each axis 60 minutes
±0.5%
±2%
250 mVp-p
82%
Plastic housing

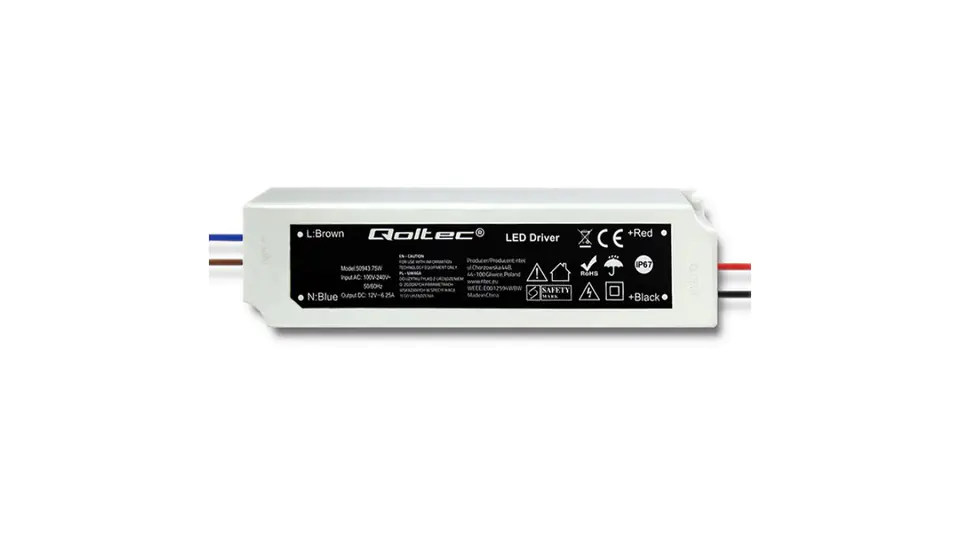

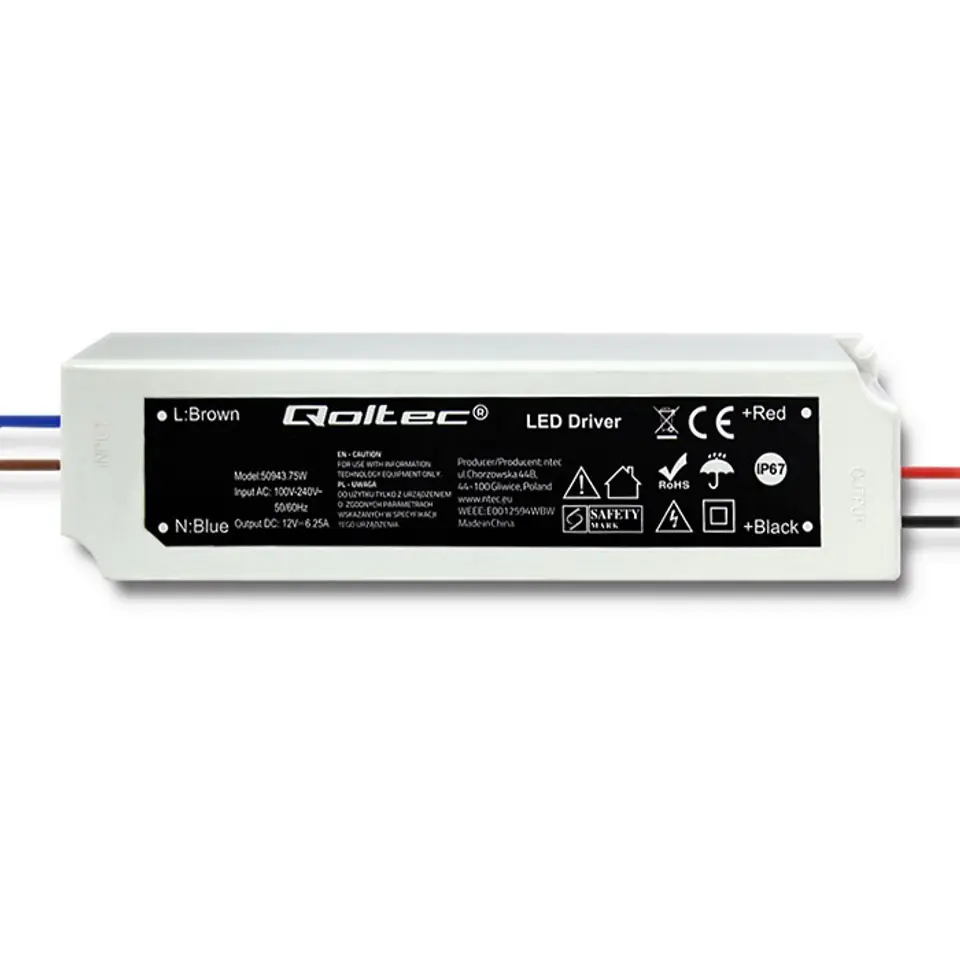

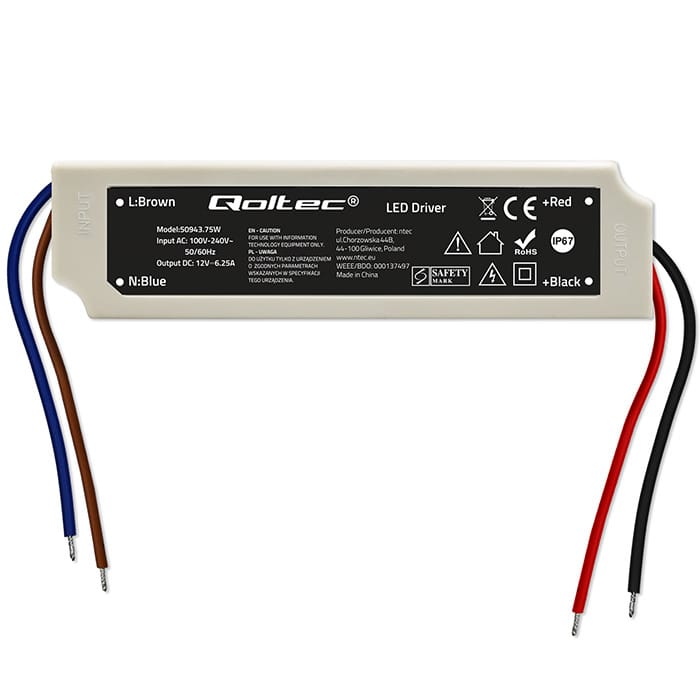

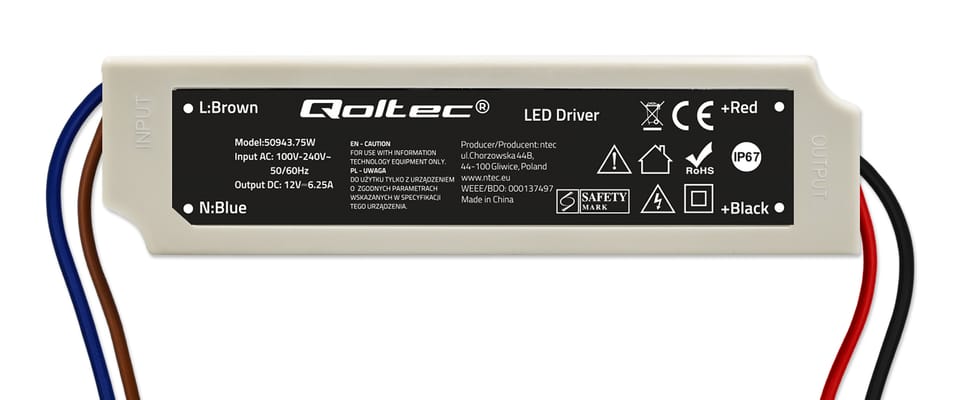

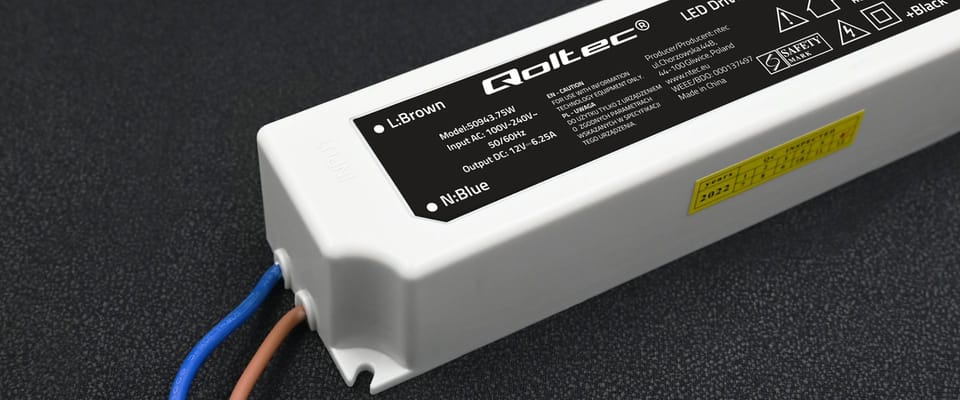

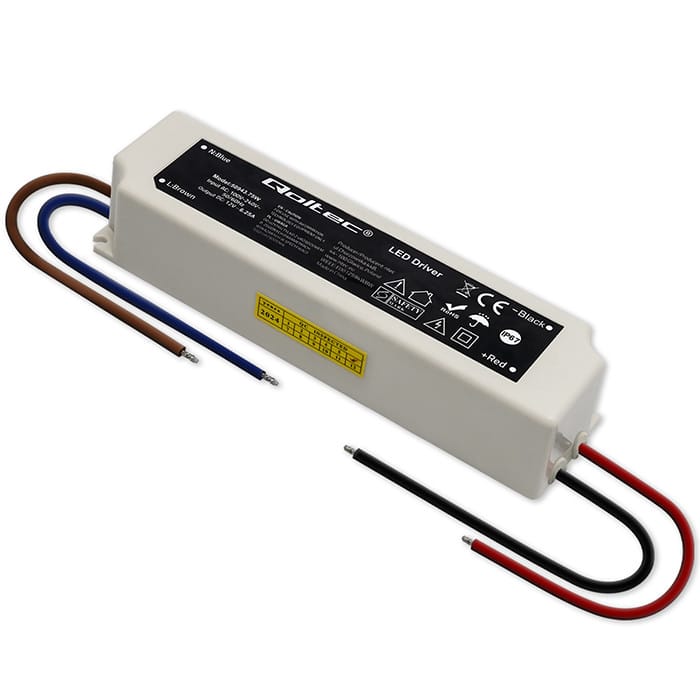

Switching power supply in a waterproof housing, converts 230V AC voltage to 12V DC. Made of electronic components placed on a printed circuit board in a plastic housing.
-20°C ~ +60°C
-40°C ~ +80°C
20~90%, non-condensing
51 x 40 x 193 mm
Carton
0.3720 kg
0.3920 kg
24 months
