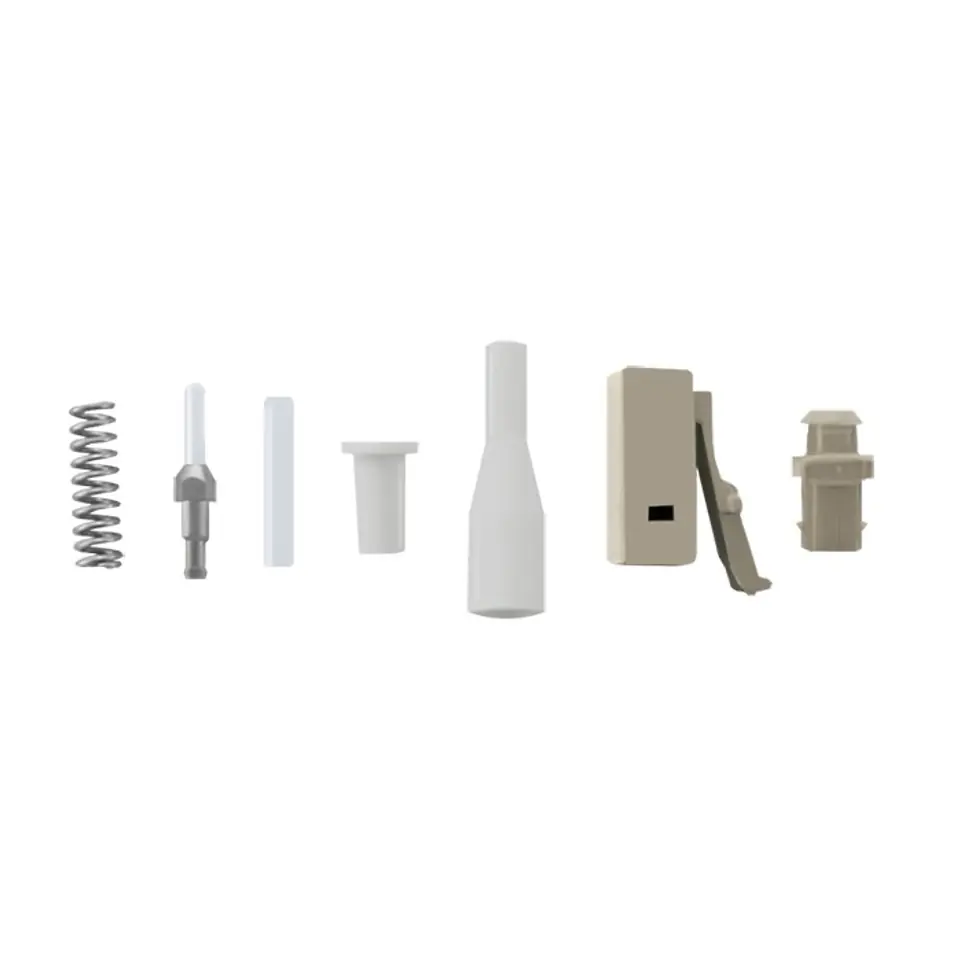

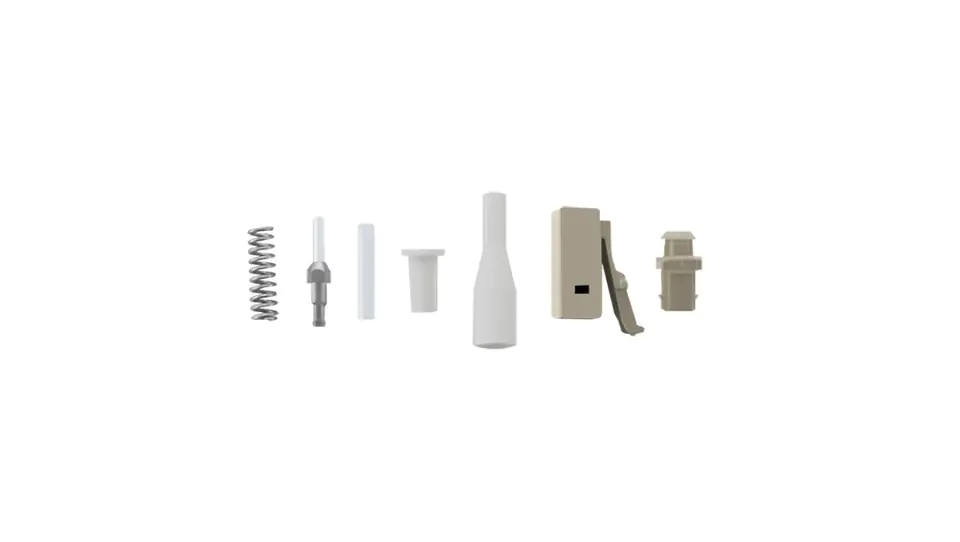

The fiber optic connector is designed to connect fiber optics. They enable switching and combining optical lines. Thanks to the highest quality optical connectors, the lowest possible attenuation is ensured. Each connector differs from each other, depending on the type of optical fiber and the size and method of polishing the ferrule. Ferrula is a tube that is made of sintered ceramic and acts as a shield and guide for the optical fiber in the connector. The advantage of LC connectors are the small dimensions of the connectors, which means that they can be used in places that have a high density of switching fields. They also have a snap-on lock system that prevents the connector from being accidentally pulled out. LC connectors are used in LAN, WAN and FTTD networks, on railways, in telecommunications networks, in cable TV networks and in measurement technology. The UPC connector has a flat polished ferrule face. Due to the risk of damage, APC and UPC connectors cannot be paired with each other. Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each connector offered by us has a 24-month warranty valid from the date of purchase
Qoltec LC/UPC Multimode For Internal Cables 0.9 mm 125 μm (657A, 657A2) 250 μm approx. 100s (uncut fiber) ≤ 0.3 dB (1310nm, 1550nm) > 4 N > 8 N > 10 N -40°C ~ +75°C ΔIL ≤ 0.5 dB ΔRL ≤ 5 dBIL - insertion lossRL - reflection loss ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB Polybag 15 70 100 0.0010 kg 0.0020 kg 24 months
Qoltec LC/UPC Multimode For Internal Cables 0.9 mm 125 μm (657A, 657A2) 250 μm approx. 100s (uncut fiber) ≤ 0.3 dB (1310nm, 1550nm) > 4 N > 8 N > 10 N -40°C ~ +75°C ΔIL ≤ 0.5 dB ΔRL ≤ 5 dBIL - insertion lossRL - reflection loss ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB Polybag 15 70 100 0.0010 kg 0.0020 kg 24 months
