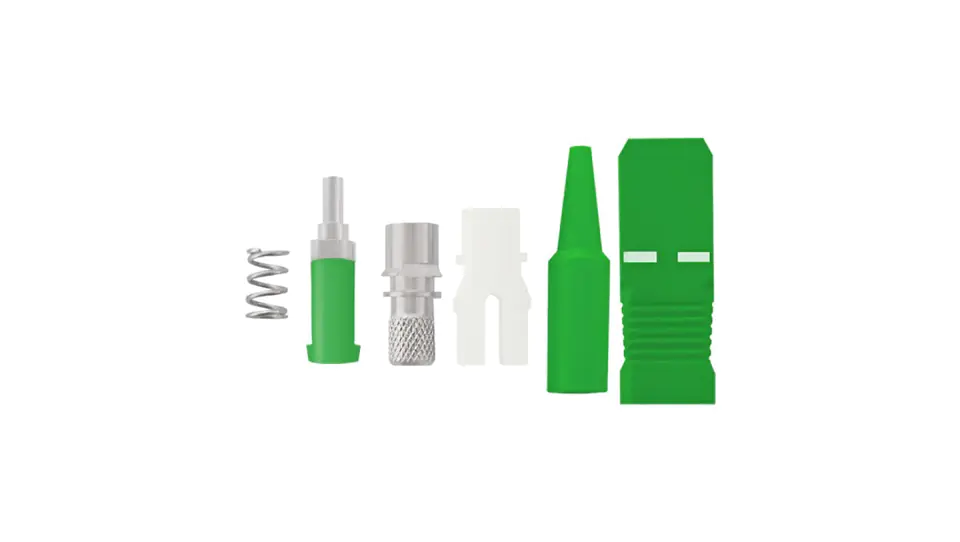

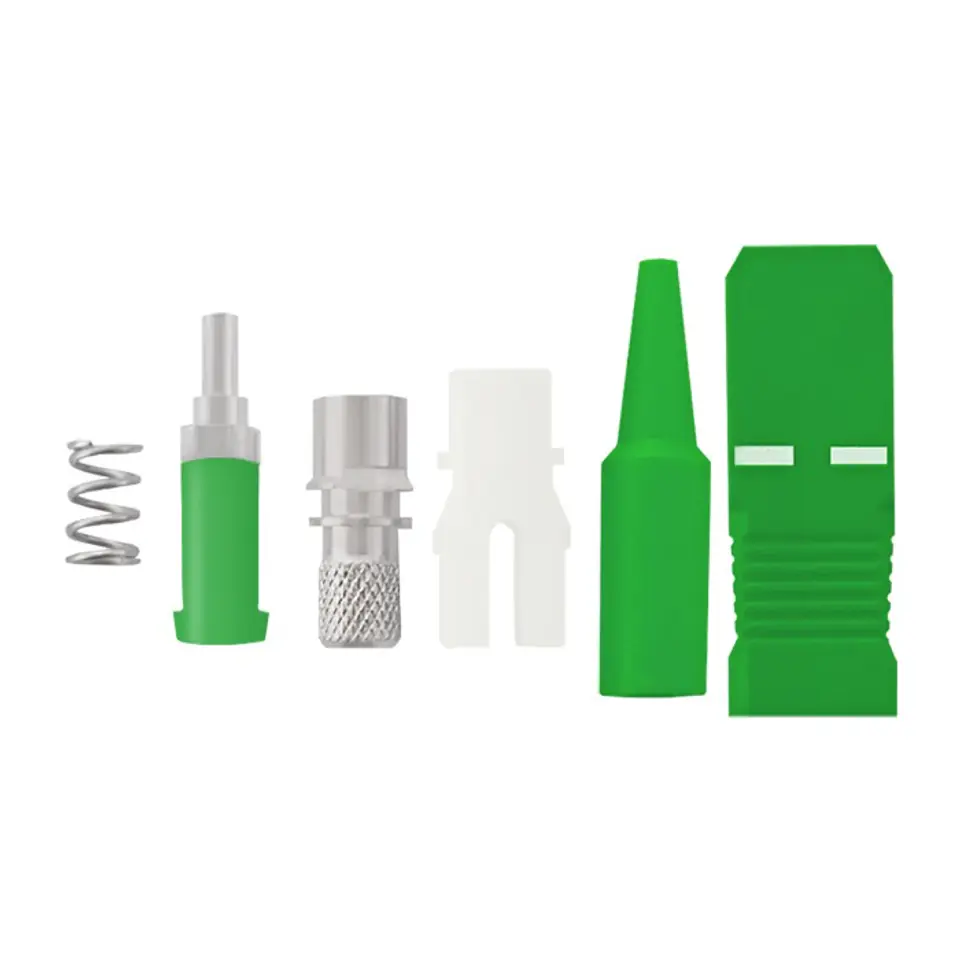

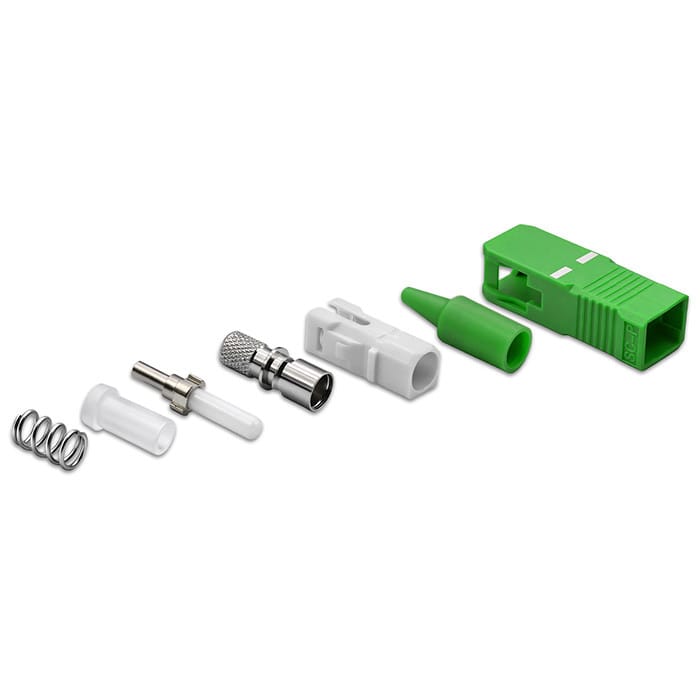

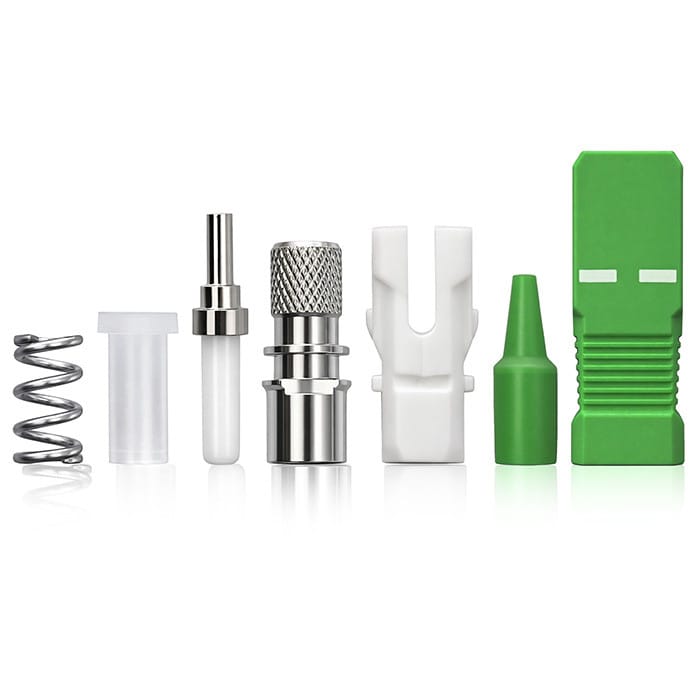

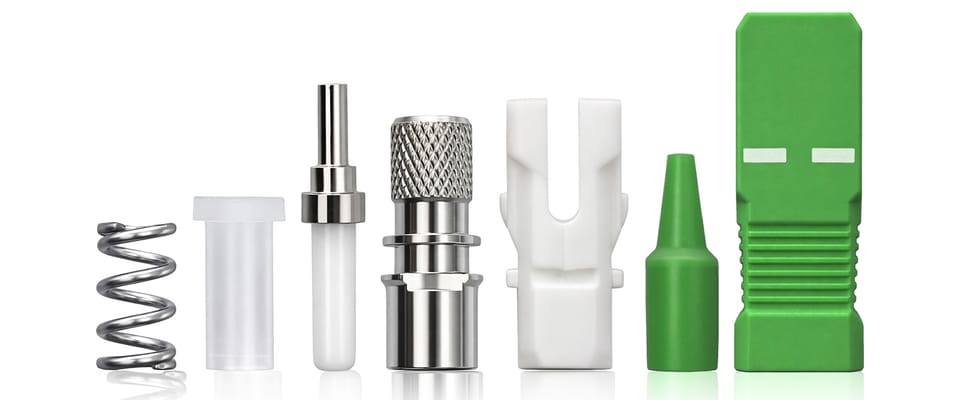

The fiber optic connector is designed to connect fiber optics. They enable switching and combining optical lines. Thanks to the highest quality optical connectors, the lowest possible attenuation is ensured. Each connector differs from each other, depending on the type of optical fiber and the size and method of polishing the ferrule. Ferrula is a tube that is made of sintered ceramic and acts as a shield and guide for the optical fiber in the connector. SC connectors are designed for use in telecommunications. They are also used in active devices such as video converters and media. They provide quick and easy connection and are resistant to connection defects. The shape of the connector allows for easy and reliable installation. In addition to telecommunications applications, the SC fiber optic connector is used in LAN and WAN networks, CATV networks, measurement techniques, sensor systems and railways. The APC connector has a polished ferruli face at an angle of 8 degrees, thanks to which the phenomenon of reflection occurring when light passes through the boundary of the media, has a much smaller effect on the attenuation of the connector. Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each connector offered by us has a 24-month warranty valid from the date of purchase
Qoltec SC/APC Single-mode For internal cables. Tap cable. 0.9 mm 125 μm (657A, 657A2) 250 μm approx. 60s (uncut fiber) ≤ 0.3 dB (1310nm, 1550nm) > 5 N > 10 N > 50 N -40°C ~ +75°C ΔIL ≤ 0.5 dB ΔRL ≤ 5 dBIL - insertion lossRL - replay loss ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB Polybag 15 70 100 0.0010 kg 0.0020 kg 24 months
