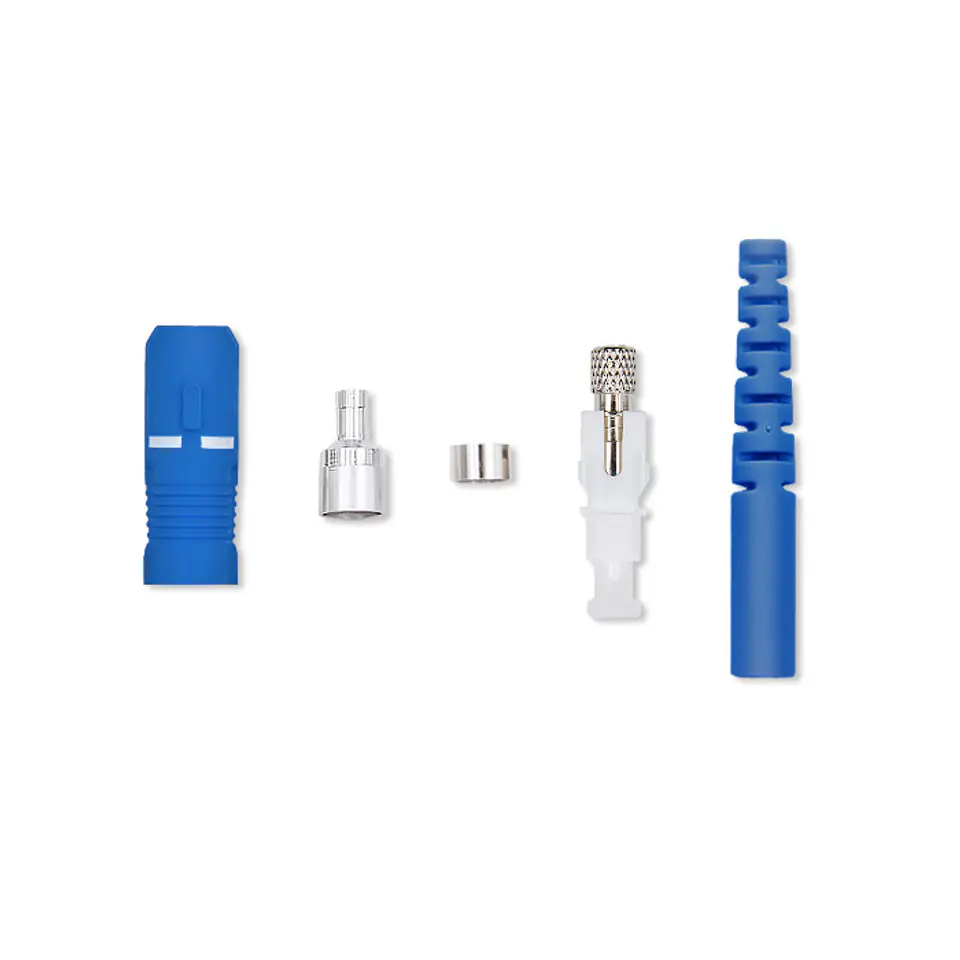

Qoltec Fiber Optic Connectors SC/PC | Singlemode | 2.0mm | Mounting kit | 200pcs. (0NC)

The fiber optic connector is designed to connect fiber optics. They enable switching and combining optical lines. Thanks to the highest quality optical connectors, the lowest possible attenuation is ensured. Each connector differs from each other, depending on the type of optical fiber and the size and method of polishing the ferrule. Ferrula is a tube that is made of sintered ceramic and acts as a shield and guide for the optical fiber in the connector.
S.C./PC – SC TYPE FIBER OPTIC CONNECTORS ARE DESIGNED FOR TERMINATING CABLES AND OPTICAL FIBERS. Currently, one of the most popular fiber optic plugs. They are characterized by a "push-pull" latch mechanism that guarantees fast connection and a permanent connection, and the correct placement of the SC type fiber optic plug in the adapter is signaled by a characteristic clicking sound. Used for single-mode and multimode transmission. Today, the reflexed PC-contact contact technique of the front surfaces of the fibers allows for the lowest possible loss at the optical junction, while maintaining a high level of backreflection. In connectors of this type, the back attenuation is not less than 40 dB. Maintaining such parameters requires high precision of the fiber face, its polishing and maintaining the appropriate curvature surrounding the ferulic fiber.
Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each set of fiber optic connectors offered by us is covered by a 24-month warranty valid from the date of purchase.
Qoltec
200 x 300 mm
SC/PC
Single-mode
Telecommunications, industry, urban wide area and local networks, passive fiber optic networks, cable TV.
2.0 mm
Polybag

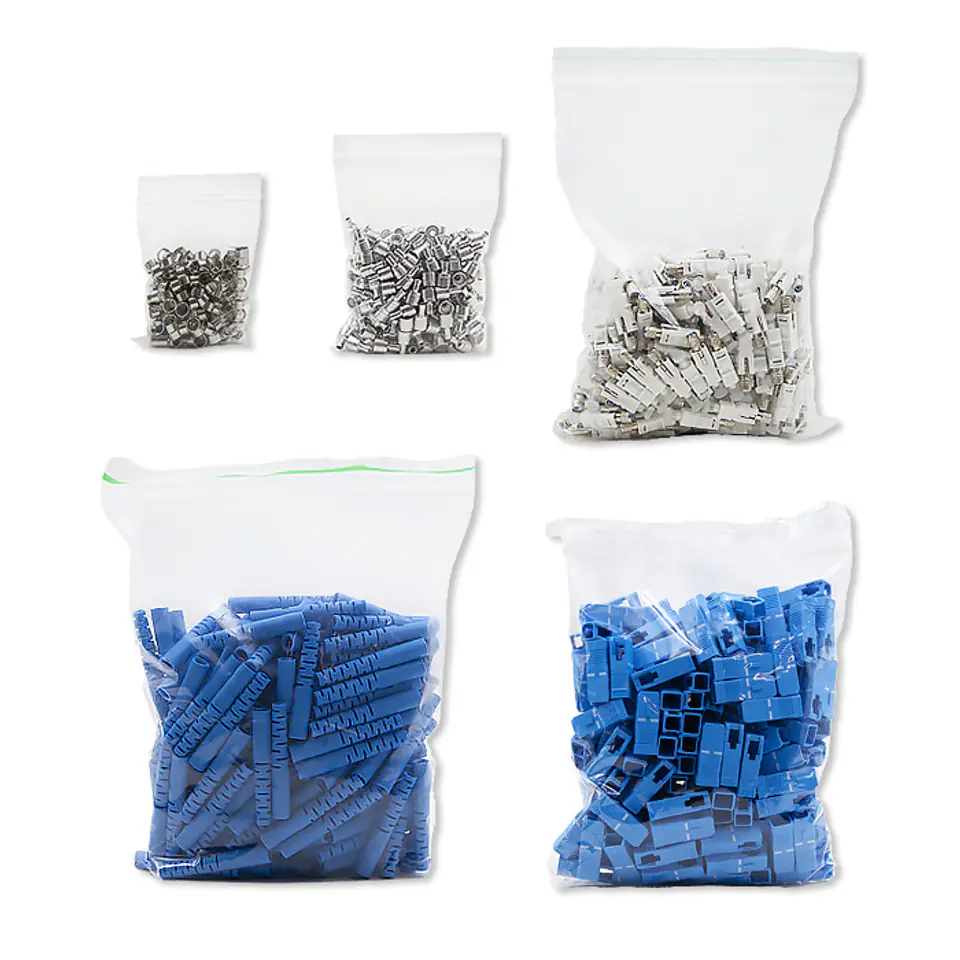

Complete SC/PC connector mounting kit 200pcs
20
100
160
0.5850 kg
0.5860 kg
24 months
