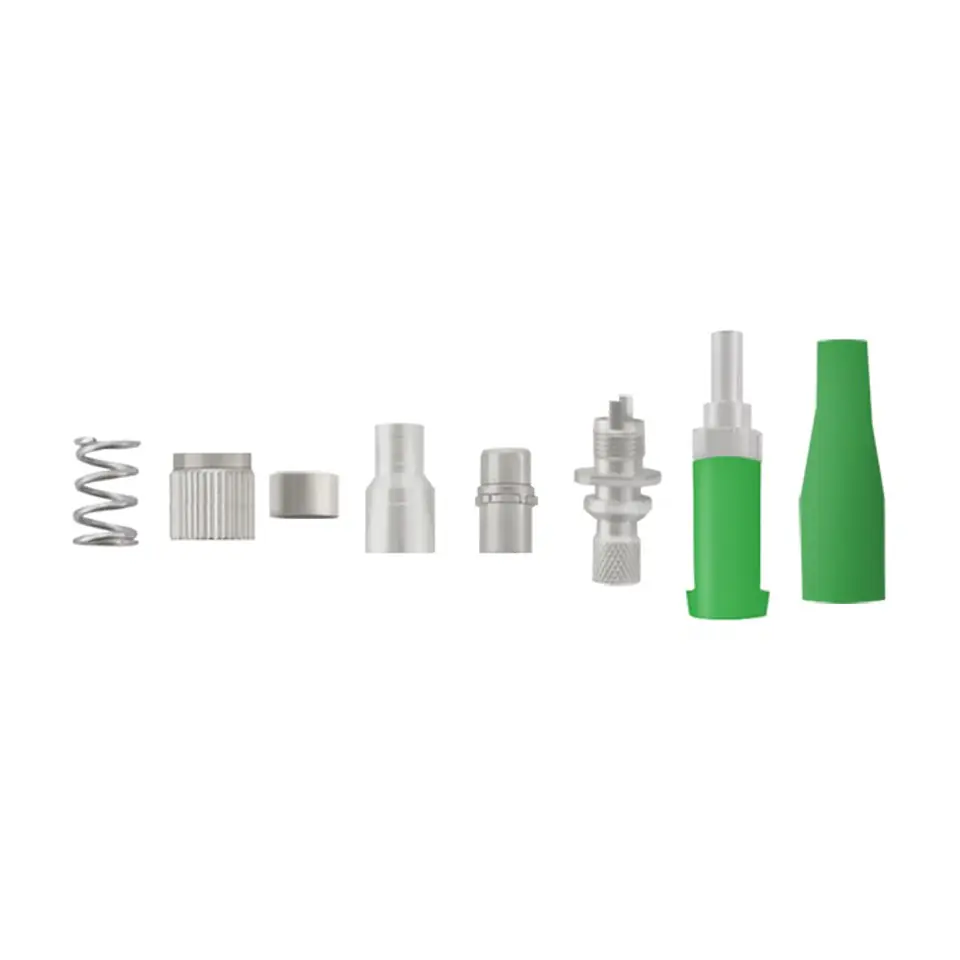

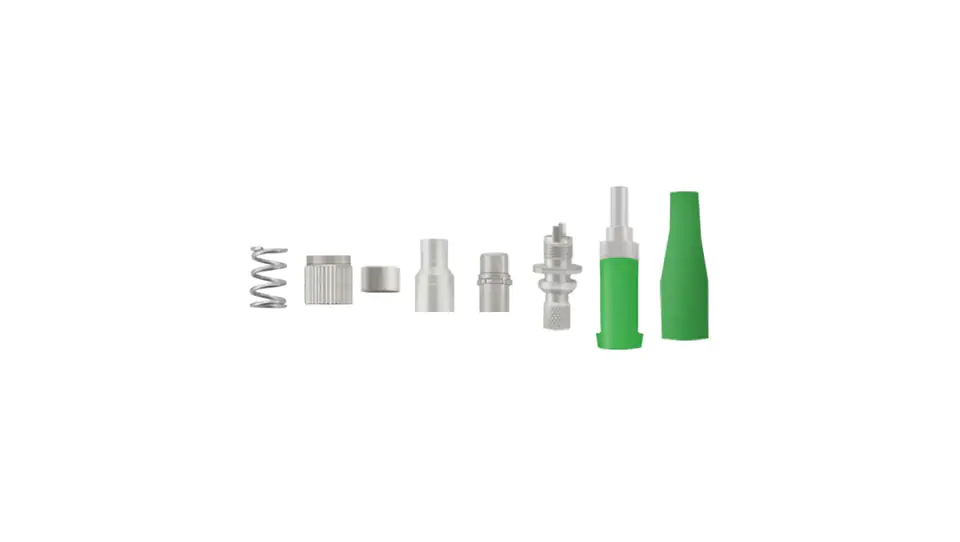

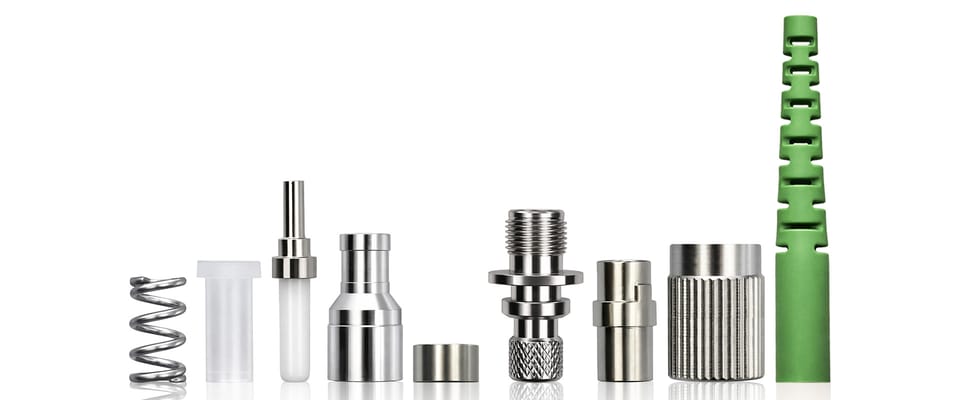

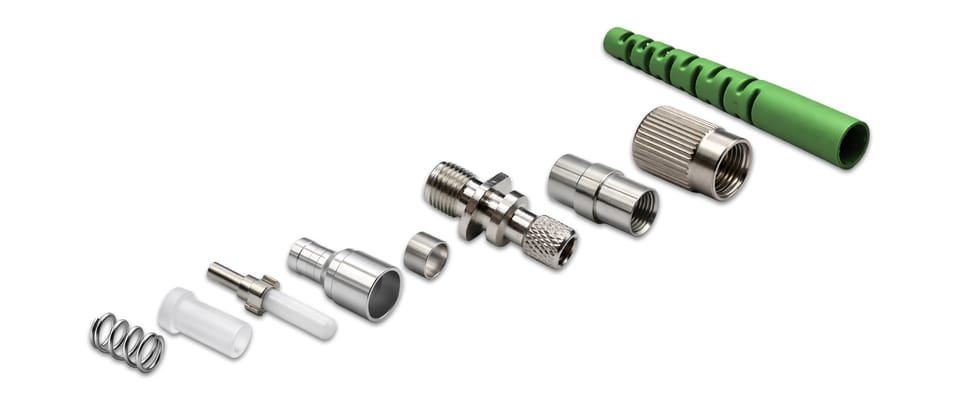

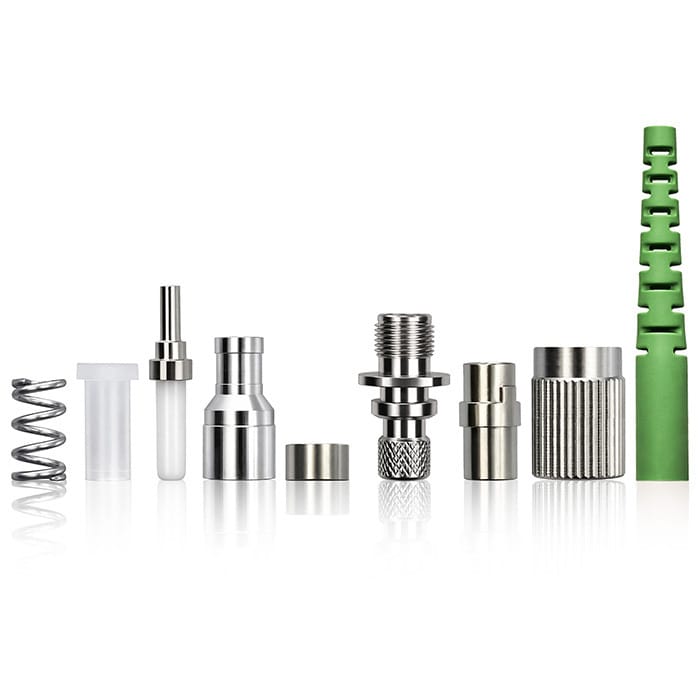

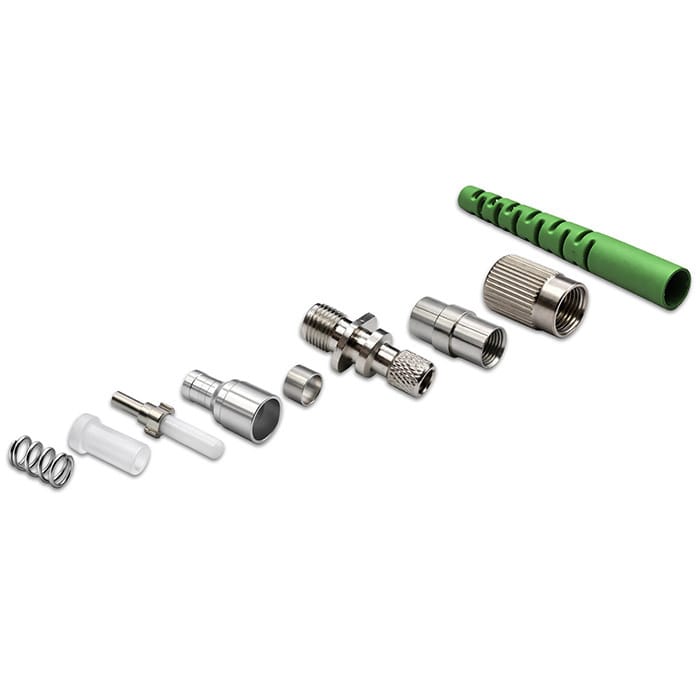

The fiber optic connector is designed to connect fiber optics. They enable switching and combining optical lines. Thanks to the highest quality optical connectors, the lowest possible attenuation is ensured. Each connector differs from each other, depending on the type of optical fiber and the size and method of polishing the ferrule. Ferrula is a tube that is made of sintered ceramic and acts as a shield and guide for the optical fiber in the connector. FC connectors are small in size and the link housing is made of stainless steel with brass elements. The connectors provide reliability during switching by fixing the joint with a steel thread and are resistant to connection defects. They are used in telecommunications, LAN and WAN networks, on railways, in CATV networks and in measurement technology and sensor systems. The APC connector has a polished ferruli face at an angle of 8 degrees, thanks to which the phenomenon of reflection occurring when light passes through the boundary of the media, has a much smaller effect on the attenuation of the connector. Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each connector offered by us has a 24-month warranty valid from the date of purchase
Qoltec FC/APC single-mode For indoor cables. Tap cable. 3.0 mm 125 μm (657A, 657A2) 250 μm approx. 100s (uncut fiber) ≤ 0.3 dB (1310nm, 1550nm) > 5 N > 10 N > 50 N -40°C ~ +75°C ΔIL ≤ 0.5 dB ΔRL ≤ 5 dBIL - insertion lossRL - Reflectivity ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB Polybag 15 50 90 0.0030 kg 0.0040 kg 24 months
Qoltec FC/APC single-mode For indoor cables. Tap cable. 3.0 mm 125 μm (657A, 657A2) 250 μm approx. 100s (uncut fiber) ≤ 0.3 dB (1310nm, 1550nm) > 5 N > 10 N > 50 N -40°C ~ +75°C ΔIL ≤ 0.5 dB ΔRL ≤ 5 dBIL - insertion lossRL - Reflectivity ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB Polybag 15 50 90 0.0030 kg 0.0040 kg 24 months
