Qoltec Fiber Optic Connector FC/PC | Singlemode | 2.0mm | Mounting kit | 200pcs. (0NC)

The fiber optic connector is designed to connect fiber optics. They enable switching and combining optical lines. Thanks to the highest quality optical connectors, the lowest possible attenuation is ensured. Each connector differs from each other, depending on the type of optical fiber and the size and method of polishing the ferrule. Ferrula is a tube that is made of sintered ceramic and acts as a shield and guide for the optical fiber in the connector.
They have been designed for telecommunications applications where an even connection is required, this is possible thanks to the use of a threaded body. The screw-in connection of two FC plugs gives a very stable connection, which does not lose its parameters when touched or moved. Used for single-mode and multimode transmission. Today, the reflexed PC-contact contact technique of the front surfaces of the fibers allows for the lowest possible loss at the optical junction, while maintaining a high level of backreflection. In connectors of this type, the back attenuation is not less than 40 dB. Maintaining such parameters requires high precision of the fiber face, its polishing and maintaining the appropriate curvature surrounding the ferulic fiber.
Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each set of fiber optic connectors offered by us is covered by a 24-month warranty valid from the date of purchase.
Qoltec
215 x 210 mm
FC/PC
Single-mode
Telecommunications, industry, urban wide area and local networks, passive fiber optic networks, cable TV.
2.0 mm
Polybag

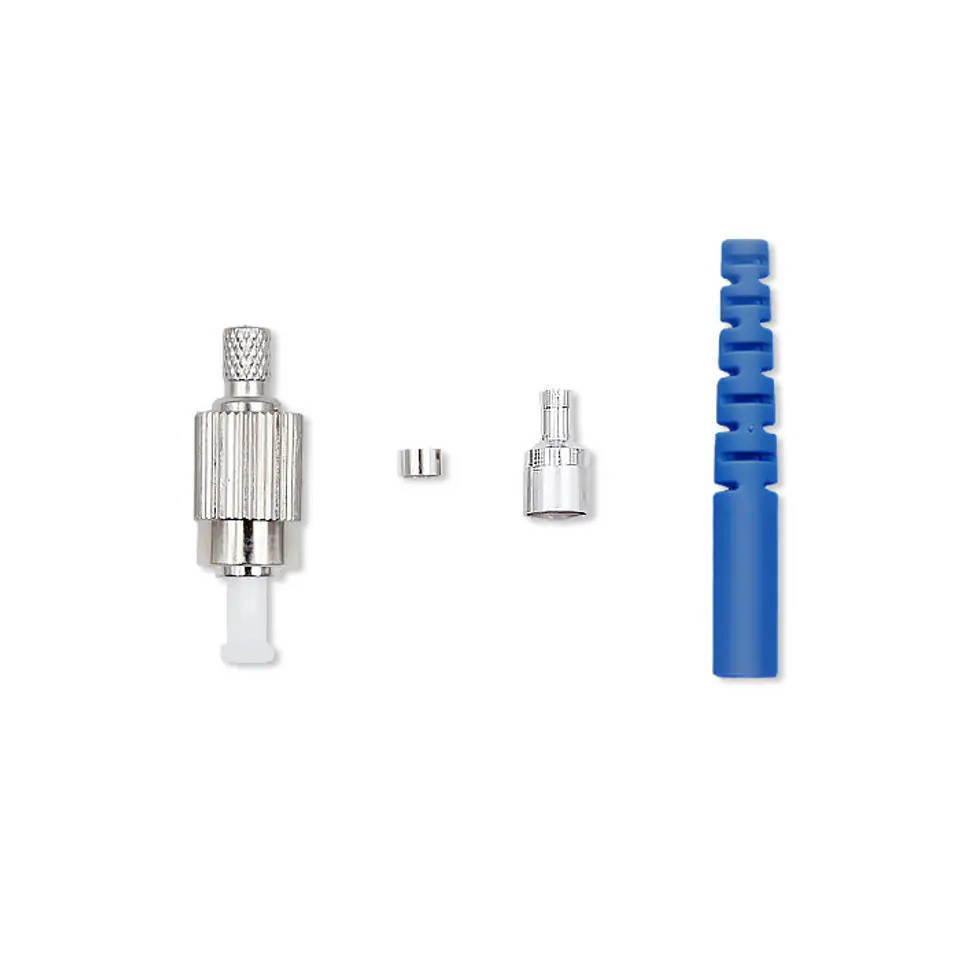

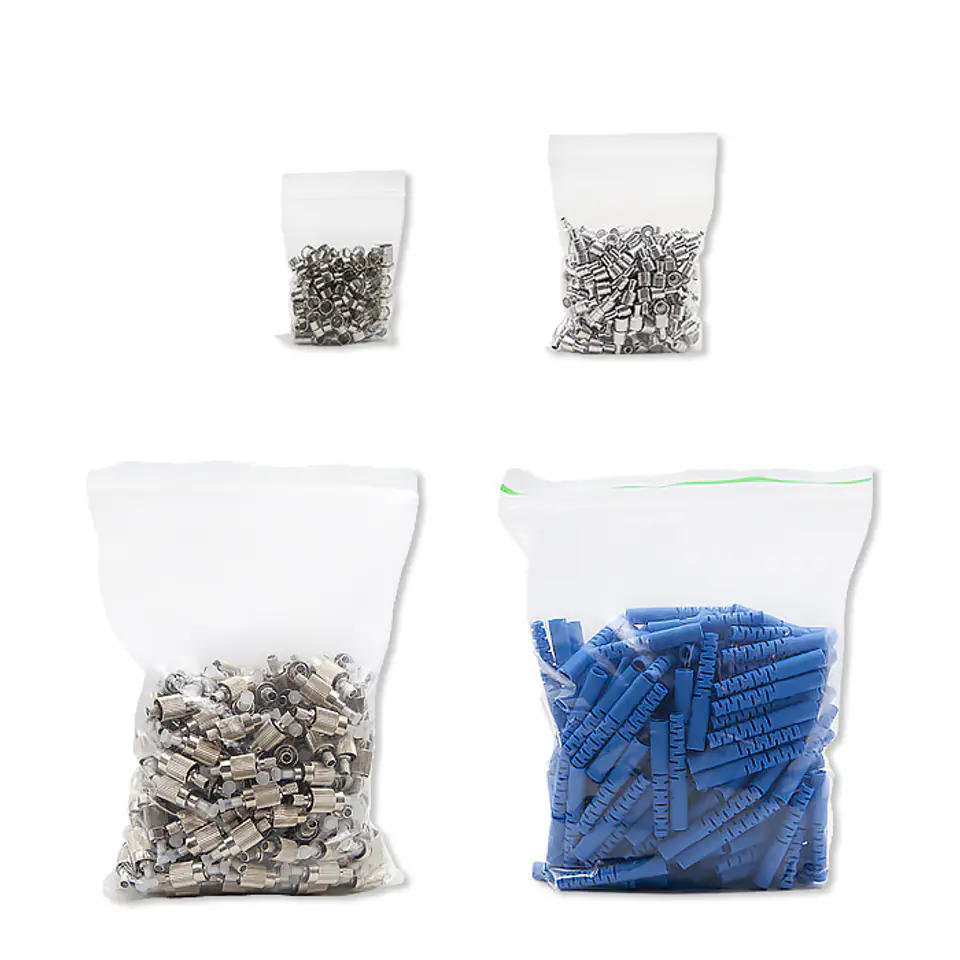

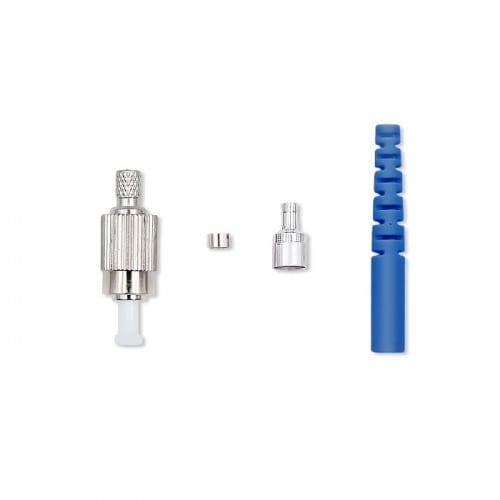

Complete FC/PC connector mounting kit - 200pcs
1.0760 kg
1.0770 kg
24 months
