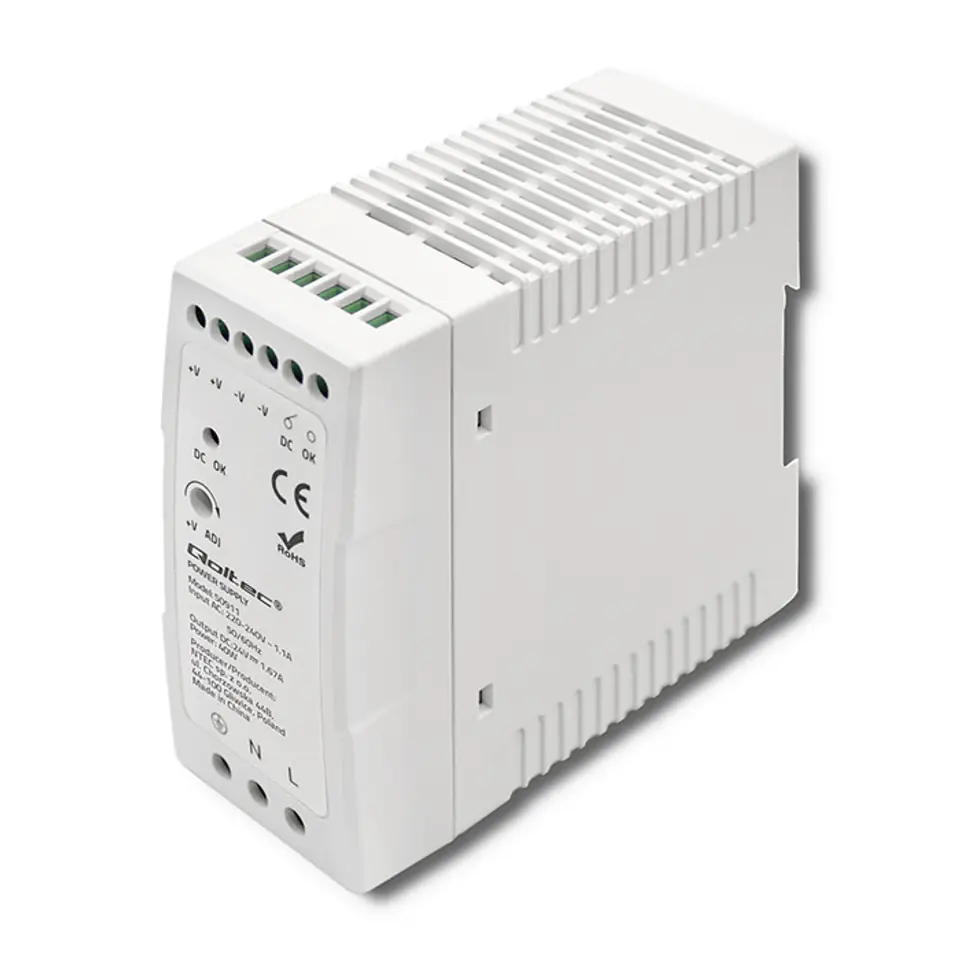

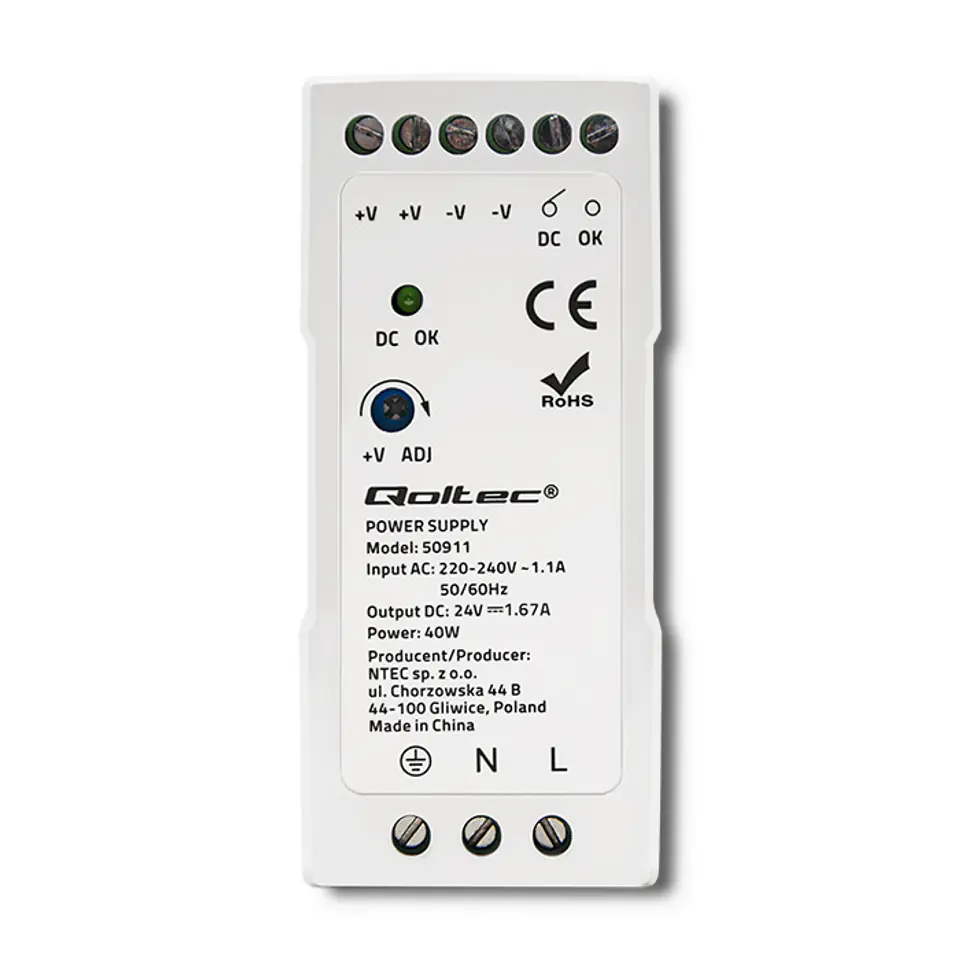

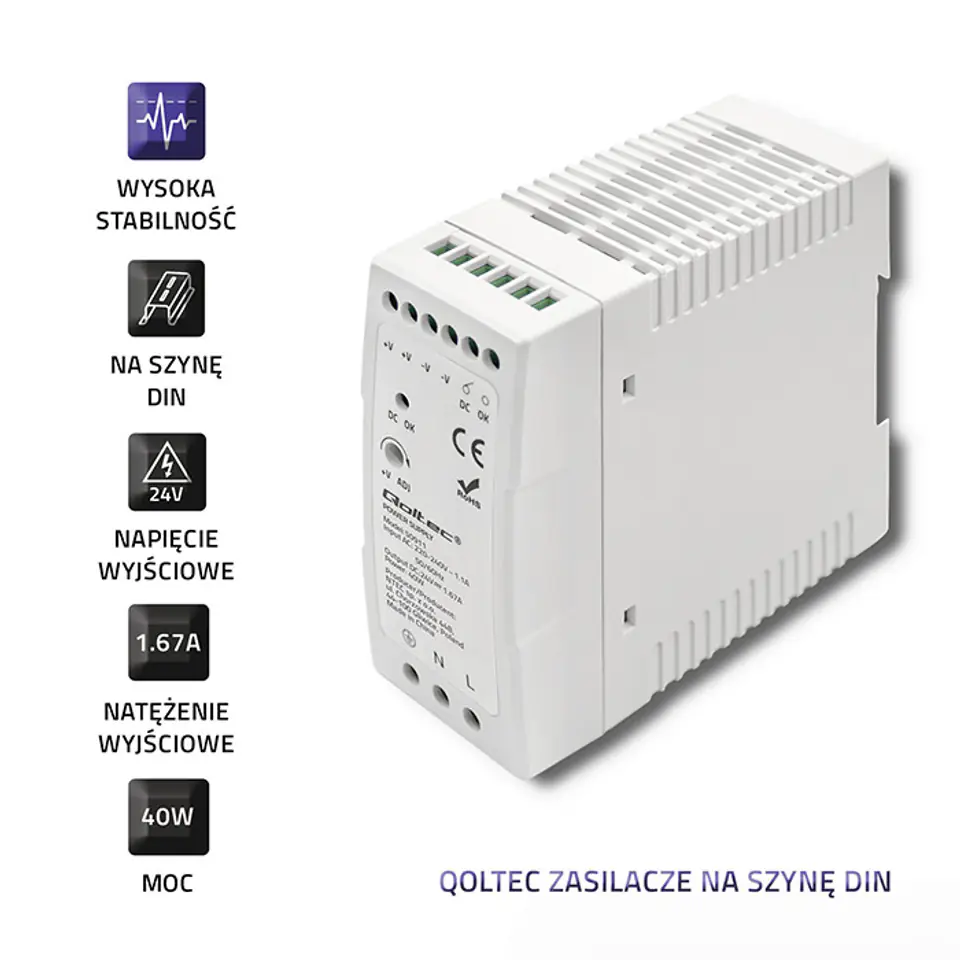

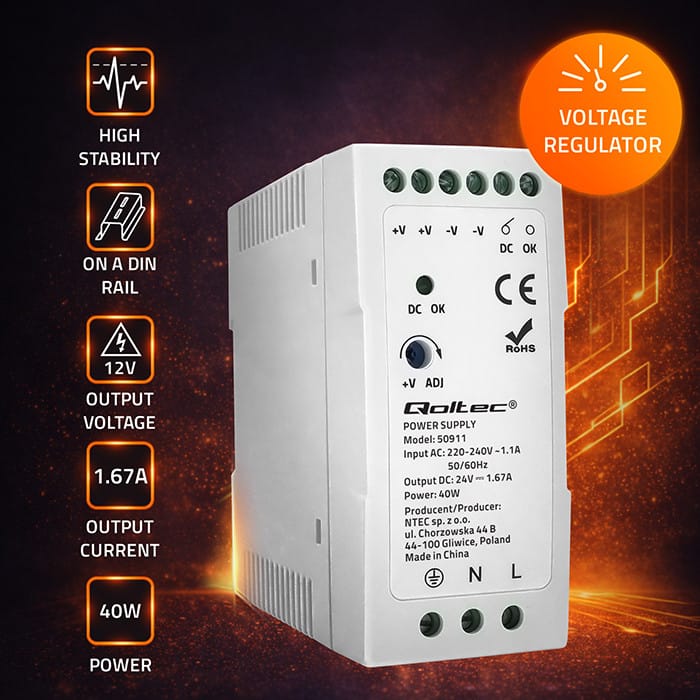

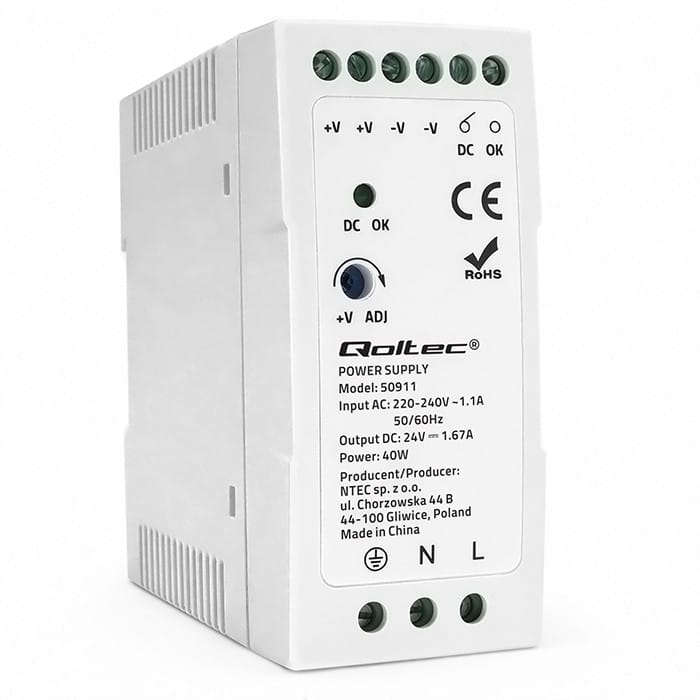

Qoltec DIN rail power supply | 40W | 24V | 1.67A | White | Slim (0NC)

Qoltec DIN rail power supplies are a useful element of automation, machine control, lighting technology and industrial electronics systems, in which the size of power supply devices and their adaptation to limited space are important.

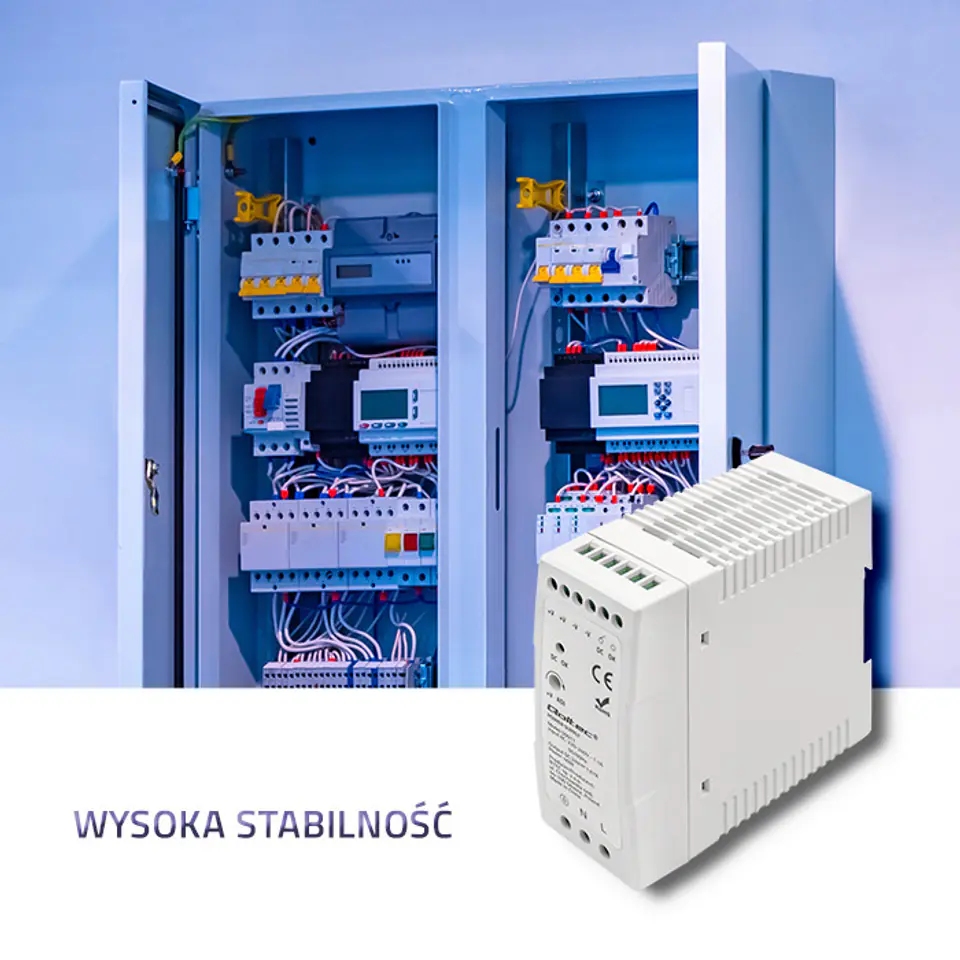

The SLIM version makes it easier to organize the space for mounting the power supply - its small size will allow for trouble-free installation, and the ergonomic shape will easily adapt to the selected electrical cabinet.
You do not know which power supply to choose? It's simple:
It is necessary to calculate the power consumption of all devices supported by it. The sum will determine the minimum power that will ensure the operation of all components in the system powered from a specific DIN power supply. It is worth remembering that when choosing a power supply, provide a reserve of approx. 10-15% of power for the safe functioning of the equipment connected to it.
DIN rail power supplies are made of the highest quality materials to provide you with reliable power supply in every situation. In addition, it has protection against:
- overvoltage is protection against too low or too high input voltage,
- overloads are protection against overload of each of the power lines,
- short circuit protection is a short circuit protection in the power supply circuit

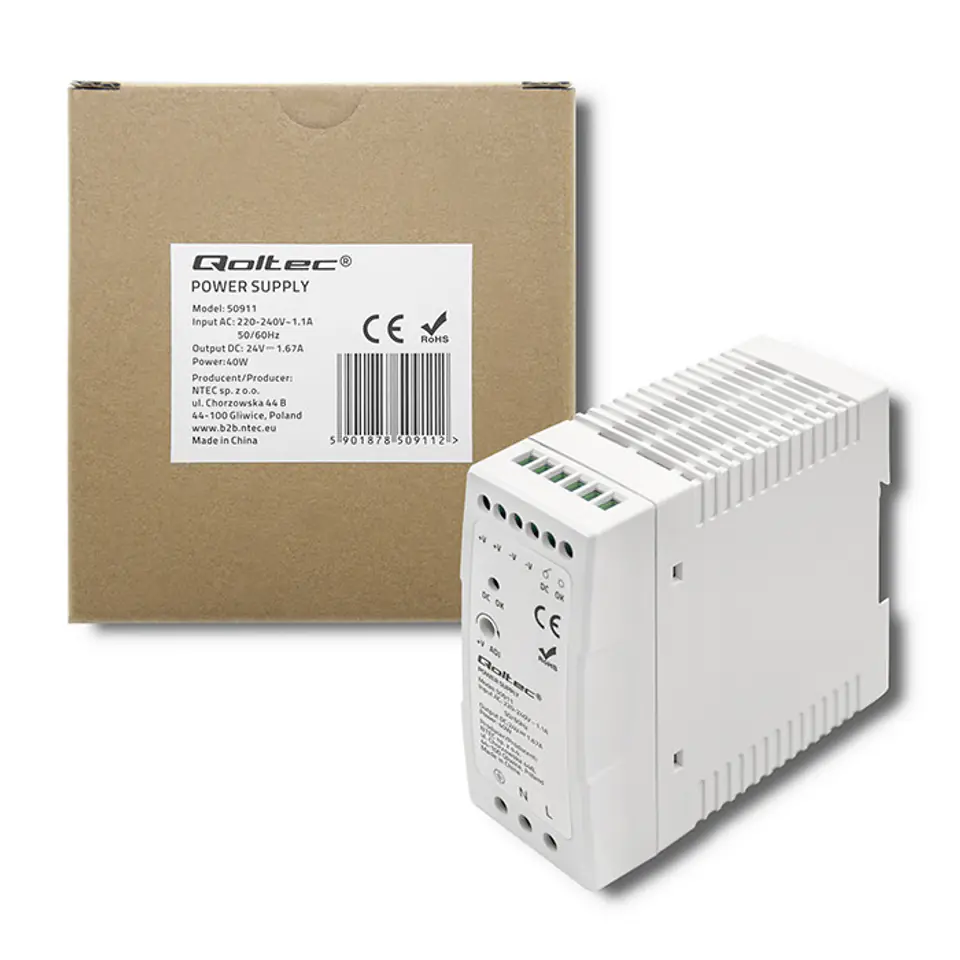

Our company makes every effort to protect the environment as best as possible, thus the presented model is packed in a biodegradable box.
Do you care about the high quality of the product you buy? Our proposals will meet your expectations. Each of the DIN power supplies we offer is covered by a 24-month warranty valid from the date of purchase.
Qoltec
40 watts (Printing)
220 - 240 volts
50 - 60 Hz
24 volts
1.67 amps
23.5 - 29 volts DC
86%
For use only with a device with compatible parameters indicated in the specification of this device.
- anti-overvoltage-short-circuit-overload
IP 20
-30°C ~ +70°C

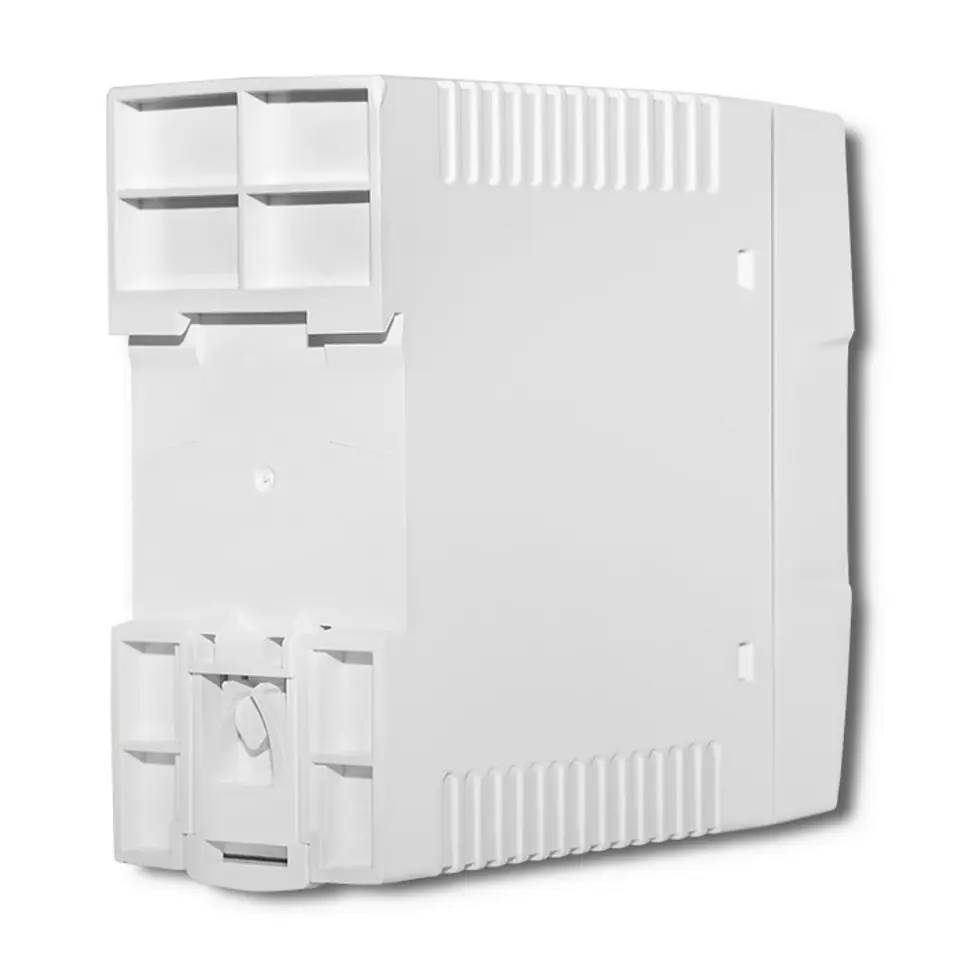

Mounting on DIN rail TS35 / 7.5 or 15Adjustable output voltageBuilt-in active DC signal OK
White
CE
100 x 40 x 90 mm
DIN rail power supply
104 mm
43 mm
110 mm
0.2560 kg
0.2750 kg
24 months
