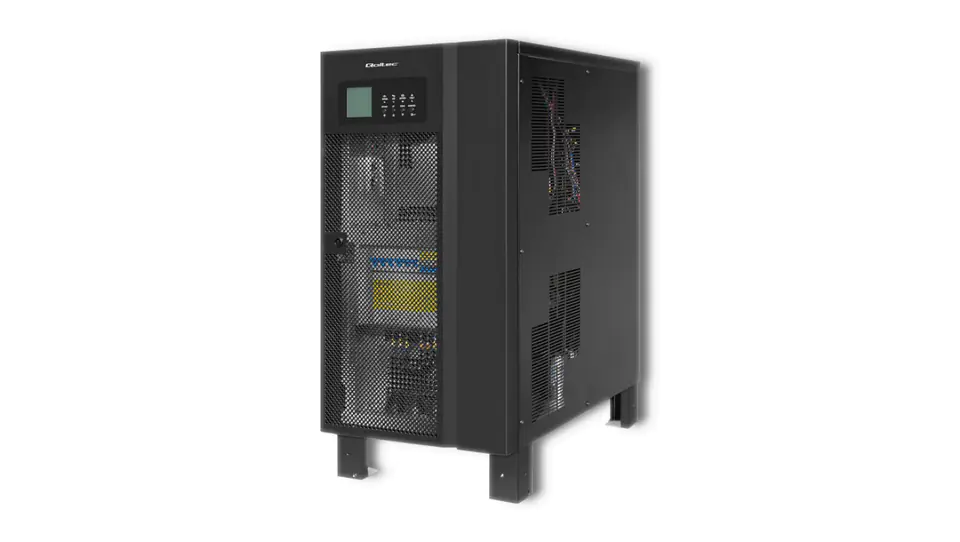

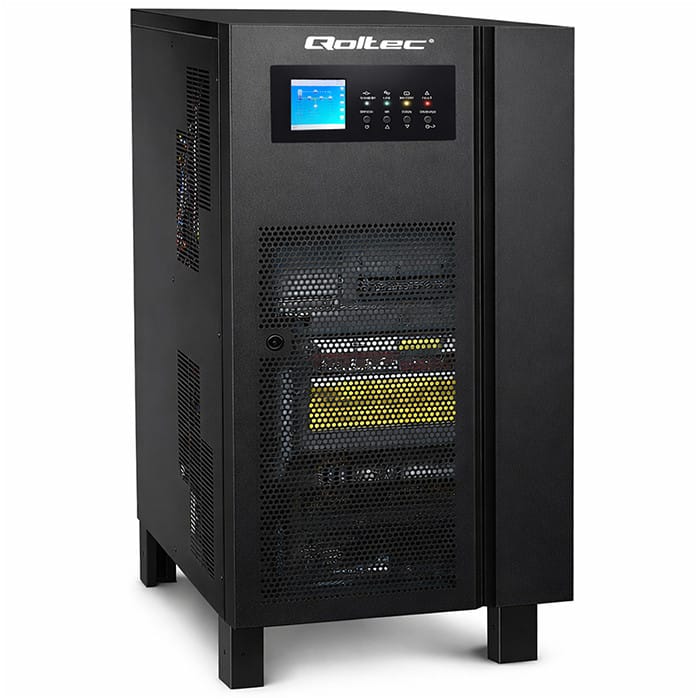

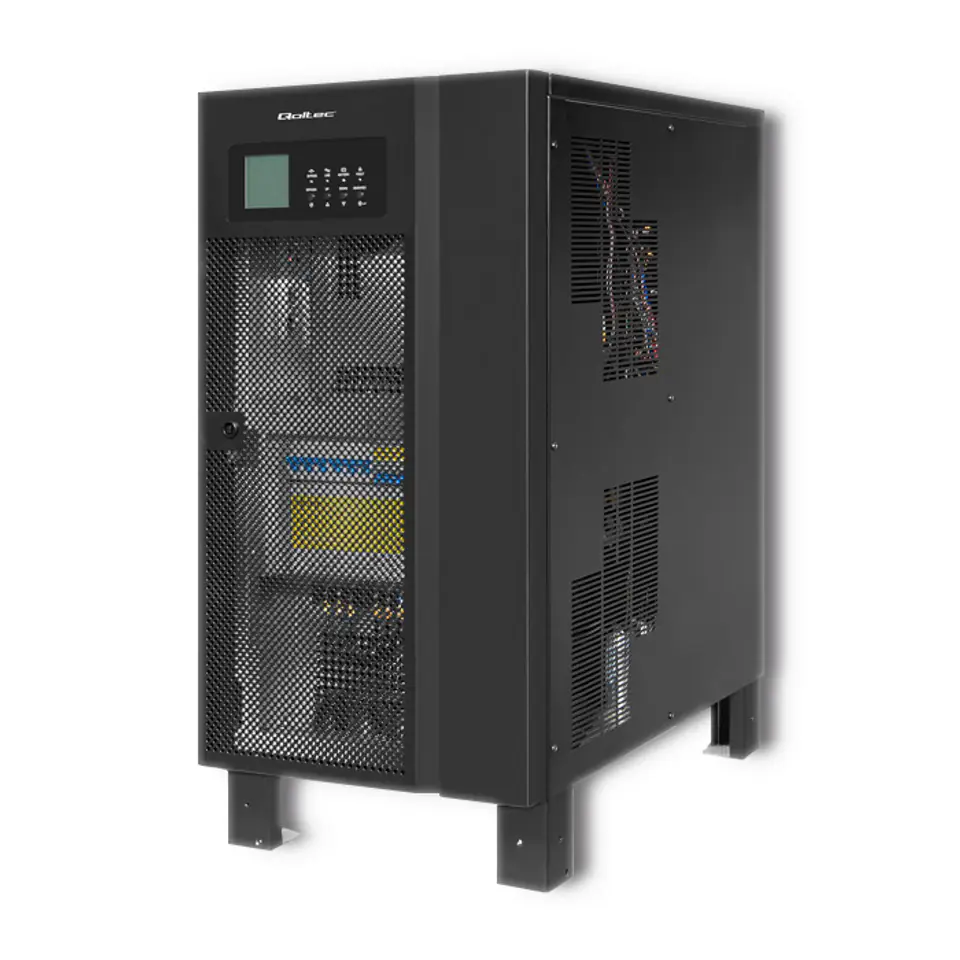

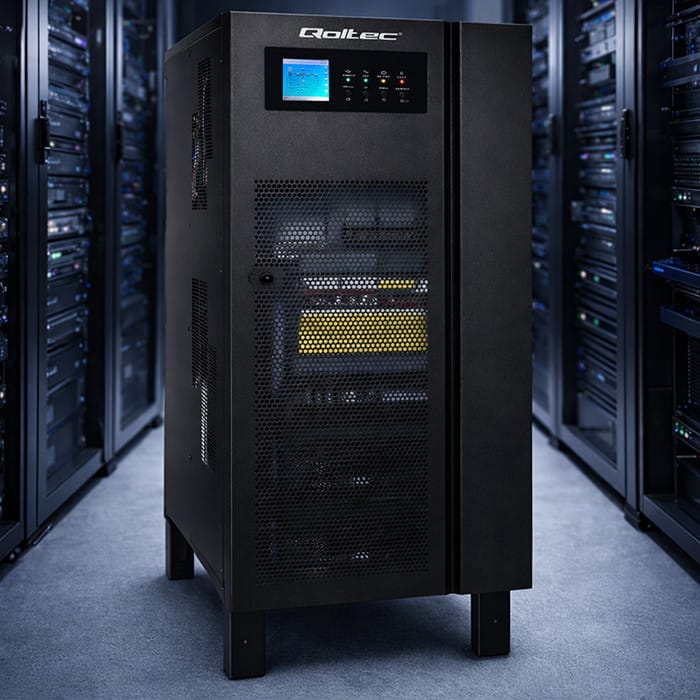

The presented UPS model is equipped with a three-level inverter topology, thus ensuring high efficiency in linear mode and in ECO mode. An advanced industrial UPS provides clean electricity with a sinusoidal shape and guarantees the safety of all connected devices.
Three-phase online UPSs are designed for electrical devices (industrial machines, motor machines) usually requiring high power and three-phase power supply from the electrical network - in addition, with their help, you can also protect three separate power lines (3 phases) if each of these phases will be subjected to a similar load.
The device has been designed for professional applications , especially used where the highest operational reliability is required , e.g. in the electronics industry, medical centers, server rooms, military technicians, offices, but also perfect for the household to power fans or lights. Thanks to this, you do not have to worry about a power failure that can cause serious damage to devices or rooms where a constant supply of energy must be provided without interruption.
The presented model is equipped with an EPO (Emergency Power Off) module for emergency deactivation of the UPS in the event of fire-threatening events. The device enables remote reception of a signal triggering a blockade in the power transfer to the connected electrical equipment installation. The use of the Emergency Power Off module increases the operability of the system, separates the installation and guarantees the safety of users in crisis situations.
Our solution additionally offers:

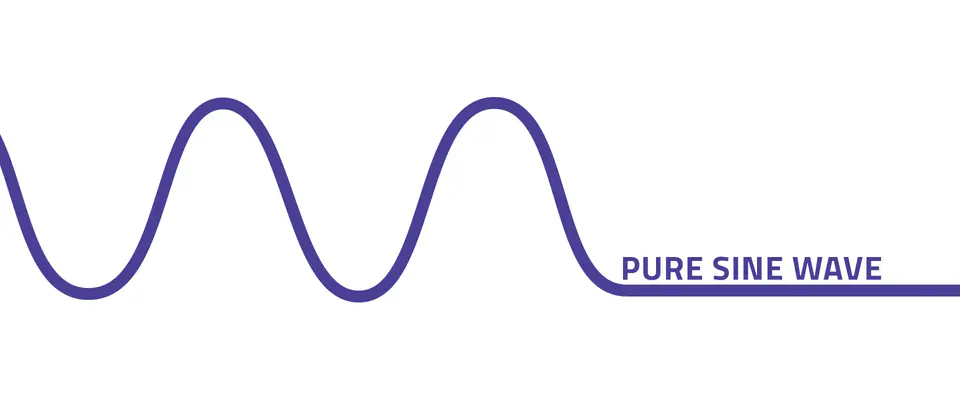

- Pure sine wave - the basis of safety and guarantee of compatibility with any type of power supply,
- Protection against overload, short circuit and high temperature,
- Double conversion - it is a certainty that your computer or server is supplied with power with stable parameters,
- Cold start - a very useful function - in the absence of electricity, you are able to turn on, for example, the computer by connecting to the UPS itself. Thanks to this, you can quickly copy important files to a USB stick or send an important e-mail at any time.

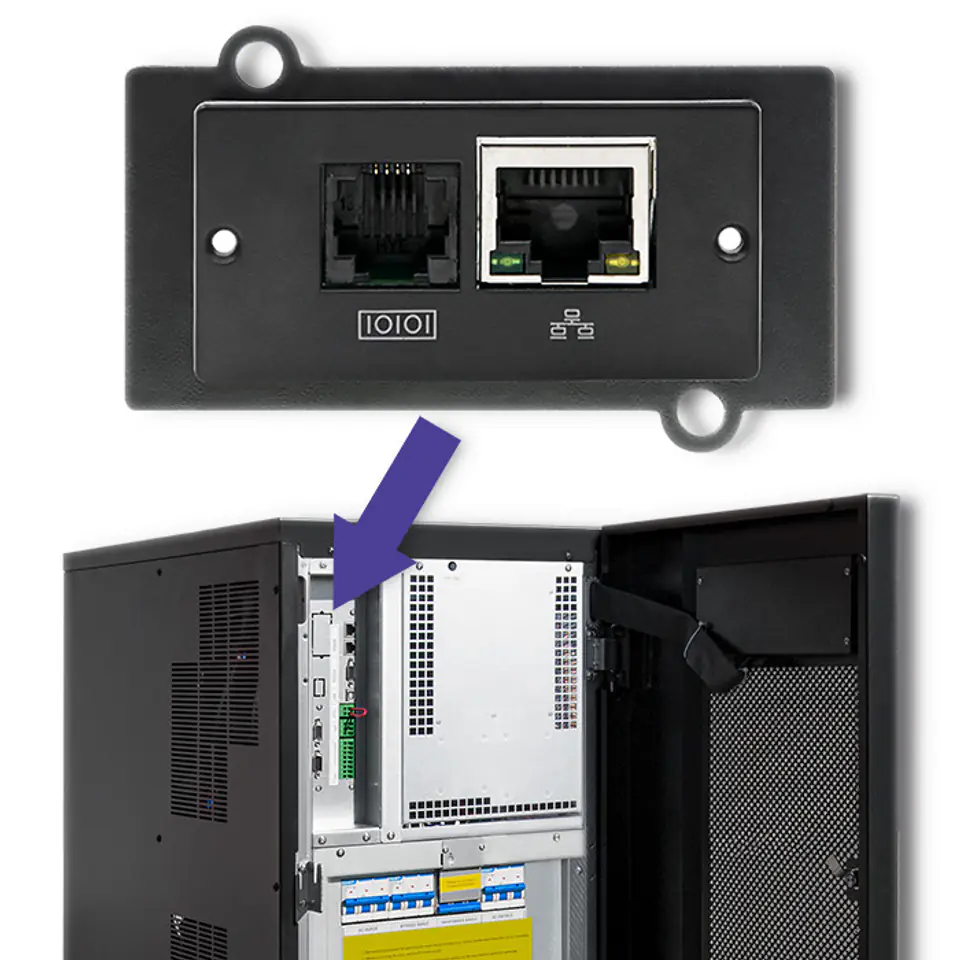

- Possibility of mounting an SNMP card or connecting an SNMP adapter - this is a network management standard, thanks to which you can quickly and easily collect information about connected devices or configure their parameters,
- Voltage backup in ONLINE mode - in the event of a power failure, the UPS will switch to battery backup within 0ms,

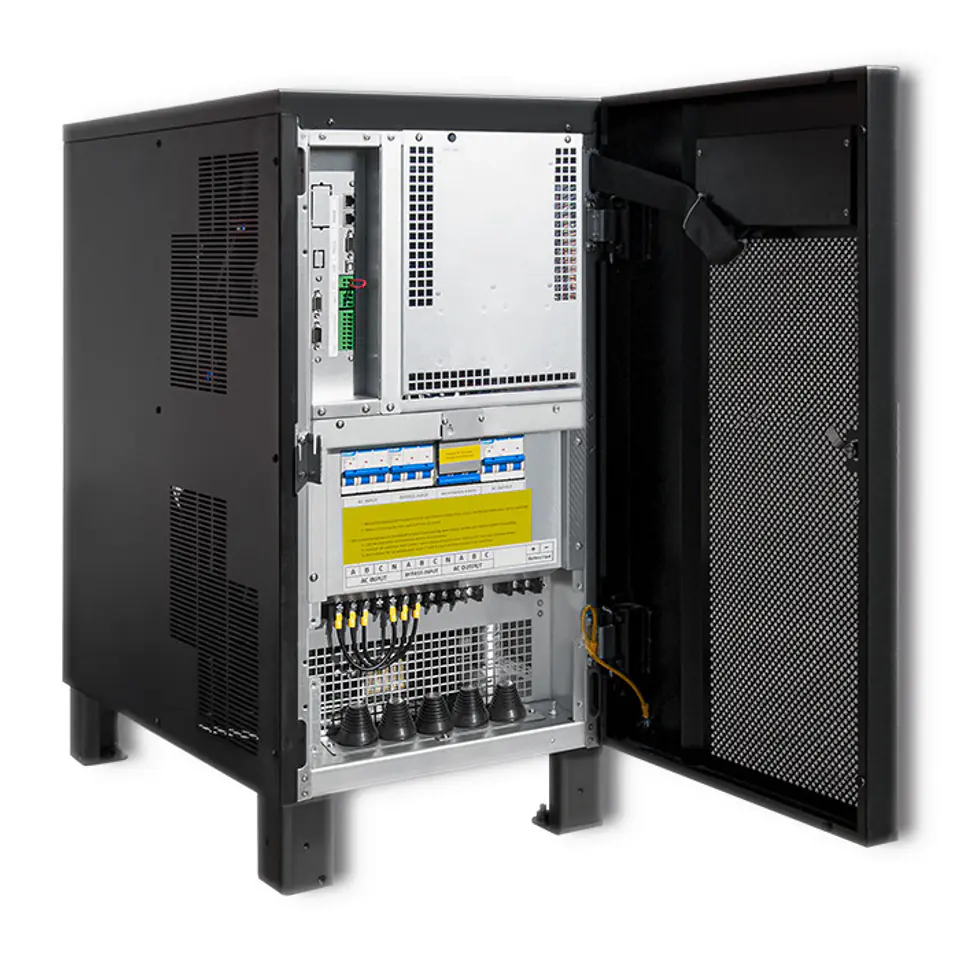

- Built-in service bypass - for trouble-free maintenance of the device,
- USB port - thanks to the power supply management software, you monitor its operation on an ongoing basis and adapt it to your needs,
- RS-485 port - used to transfer data between multiple devices, and also allows you to create networks connecting multiple devices,
- RS-232 port - is a communication bus designed for serial data transmission,
- EPO port - allows emergency power off,

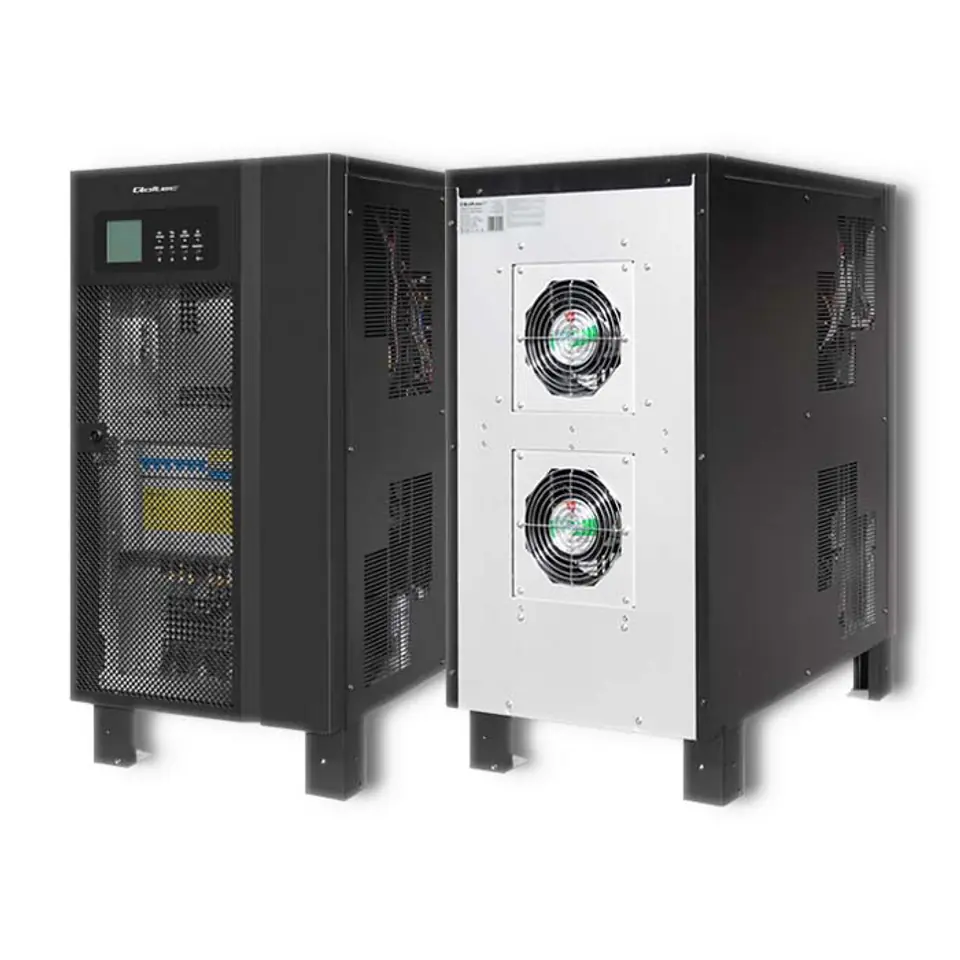

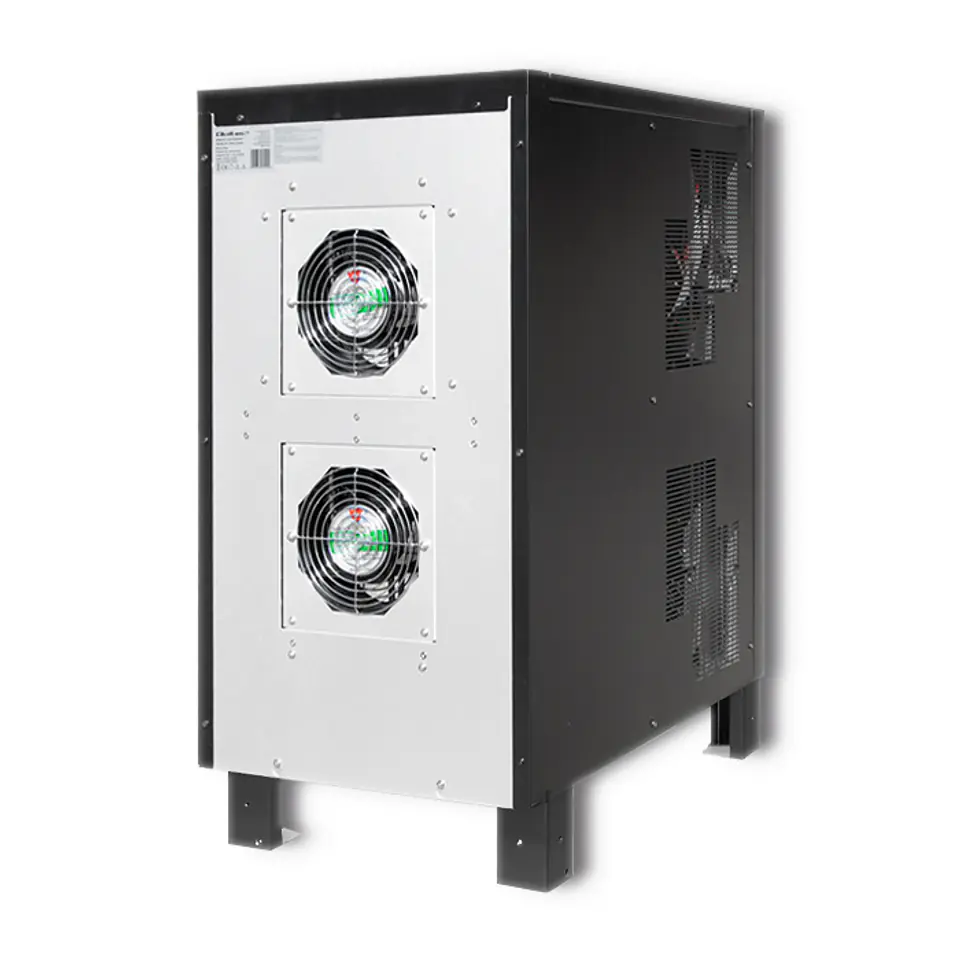

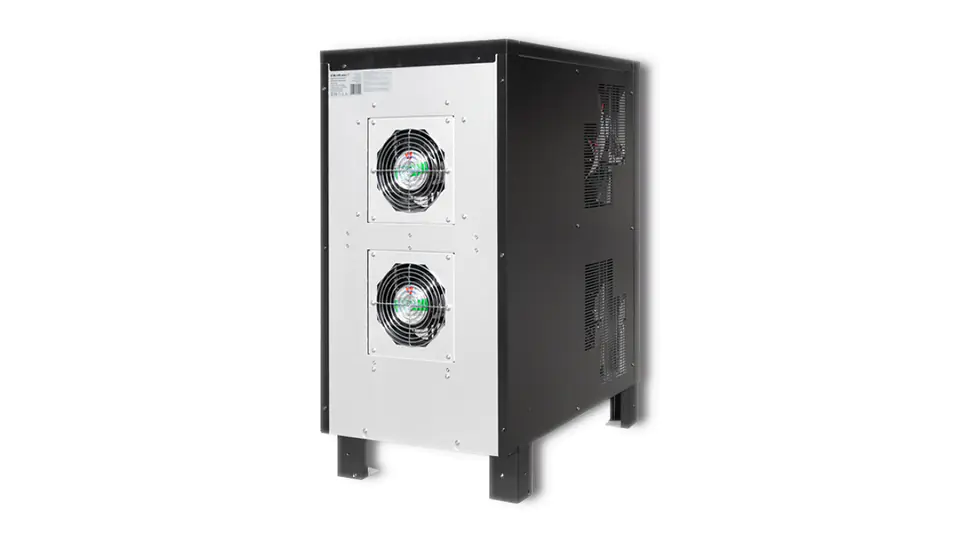

- Dual fans - provide intensive cooling of the device during continuous operation.

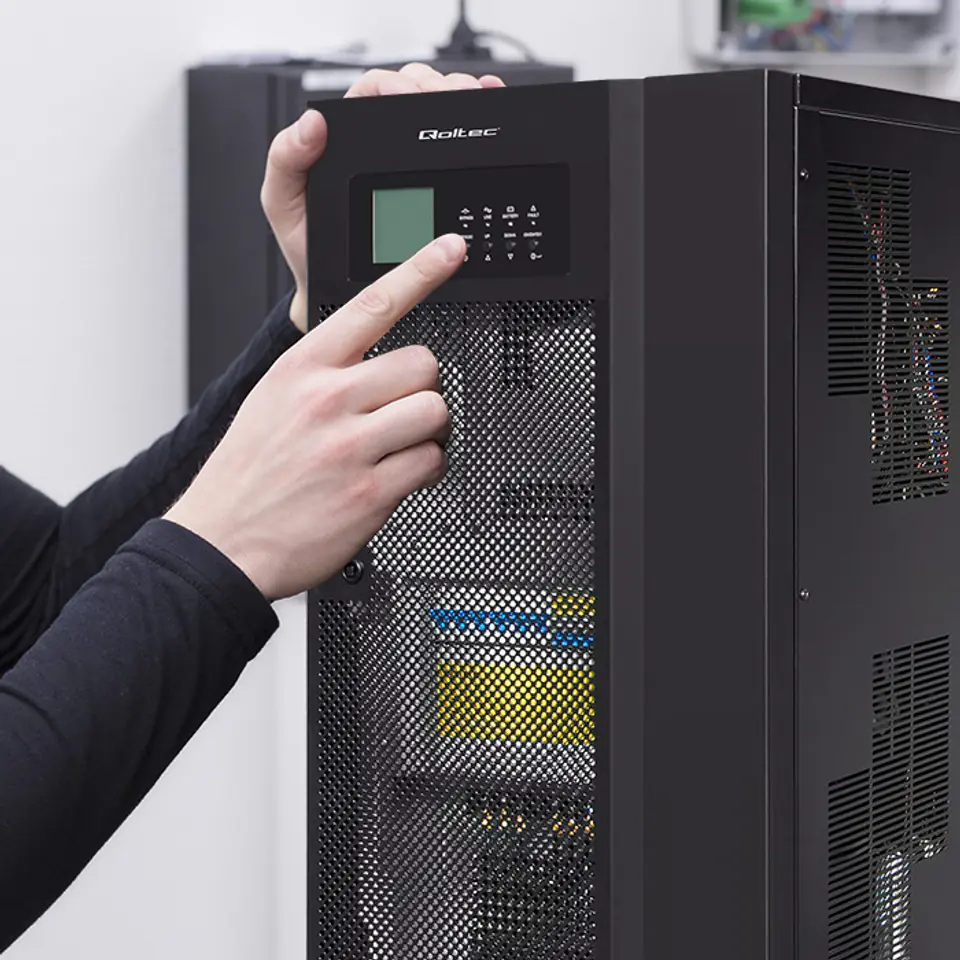

The built-in LCD display gives you the freedom to manage the operation of the device. You receive up-to-date information about the status and parameters, thanks to which working with the power supply is easy, fast, reliable and interference-free.
Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each of our 3-phase uninterruptible power supplies is covered by a 24-month warranty valid from the date of purchase.
980
540
790
Qoltec
CE, ROHS

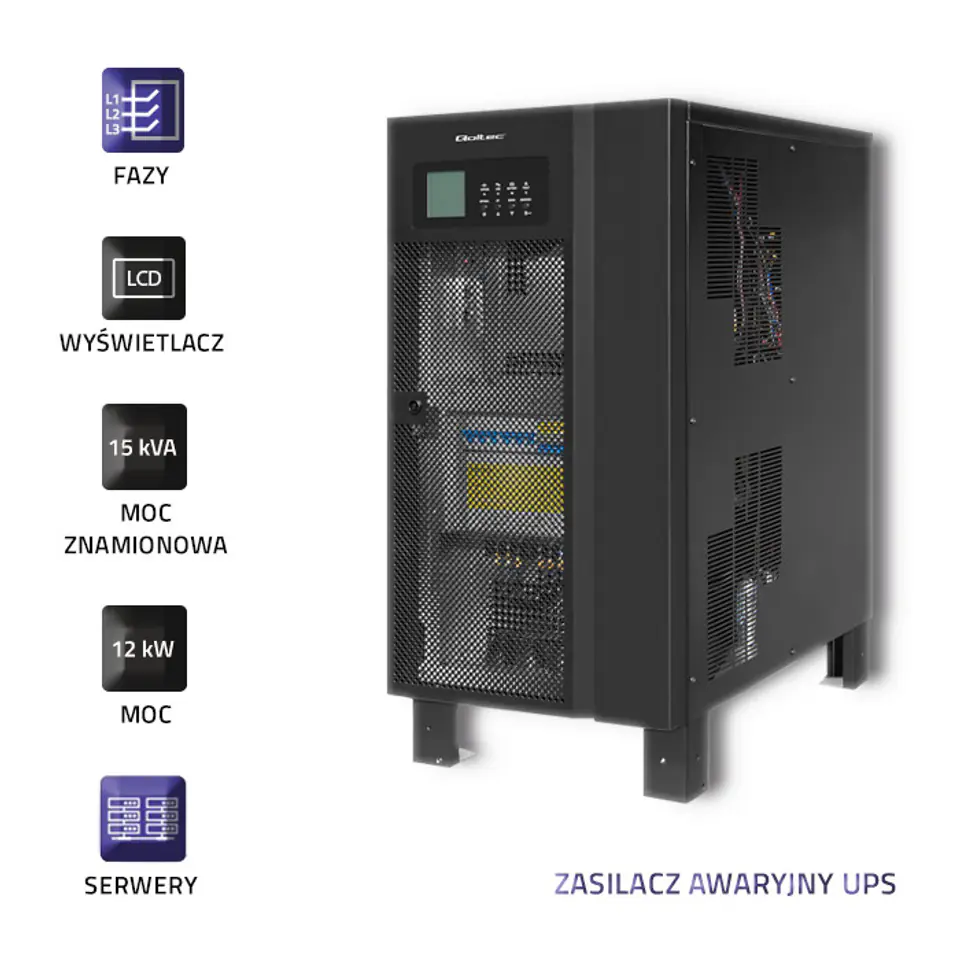

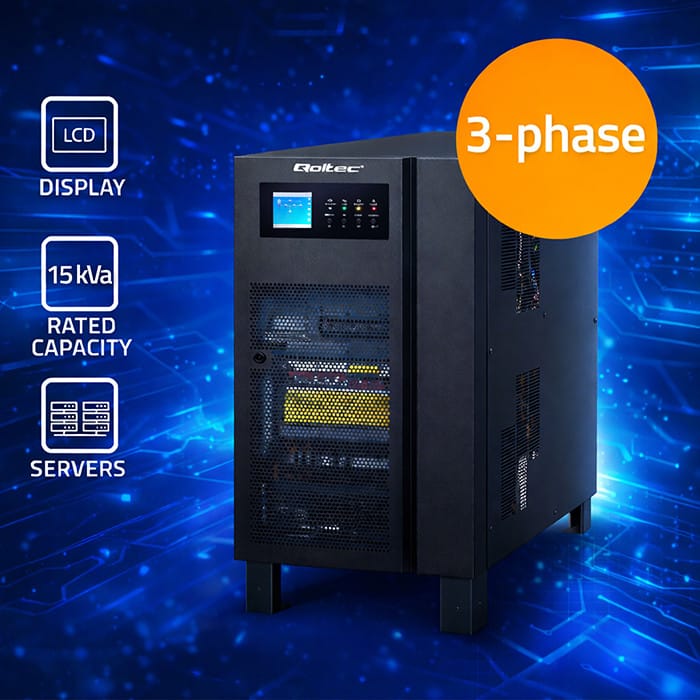

15 kVA
12 kW
0.8
3:1
Pure sine wave
0 ms (normal←→battery mode)
125% : 1 minute, 150% : 1 second
Input phase: Three phases + N + G Input voltage: 380VAC ± 25% Input frequency: 50Hz ± 10%, Soft start: 0 - 100%, 5 seconds Output phase: Three phases + N + G Output voltage: 380 VAC ± 1% (steady state load); 380 VAC ± 5% (under load) Output frequency: 50Hz ± 0.05%, 60Hz ± 0.05% (battery powered)Dynamic voltage transients: < ± 5% Instant recovery time: < 10ms Load voltage balancing: < ± 1%; < ± 5% (load voltage offload)
Service and engine machines
384 VDC (32pcs x 12V) THE DEVICE DOES NOT INCLUDE BATTERIES IN THE SET
Anti-OverloadShort-circuit protectionBefore high temperature

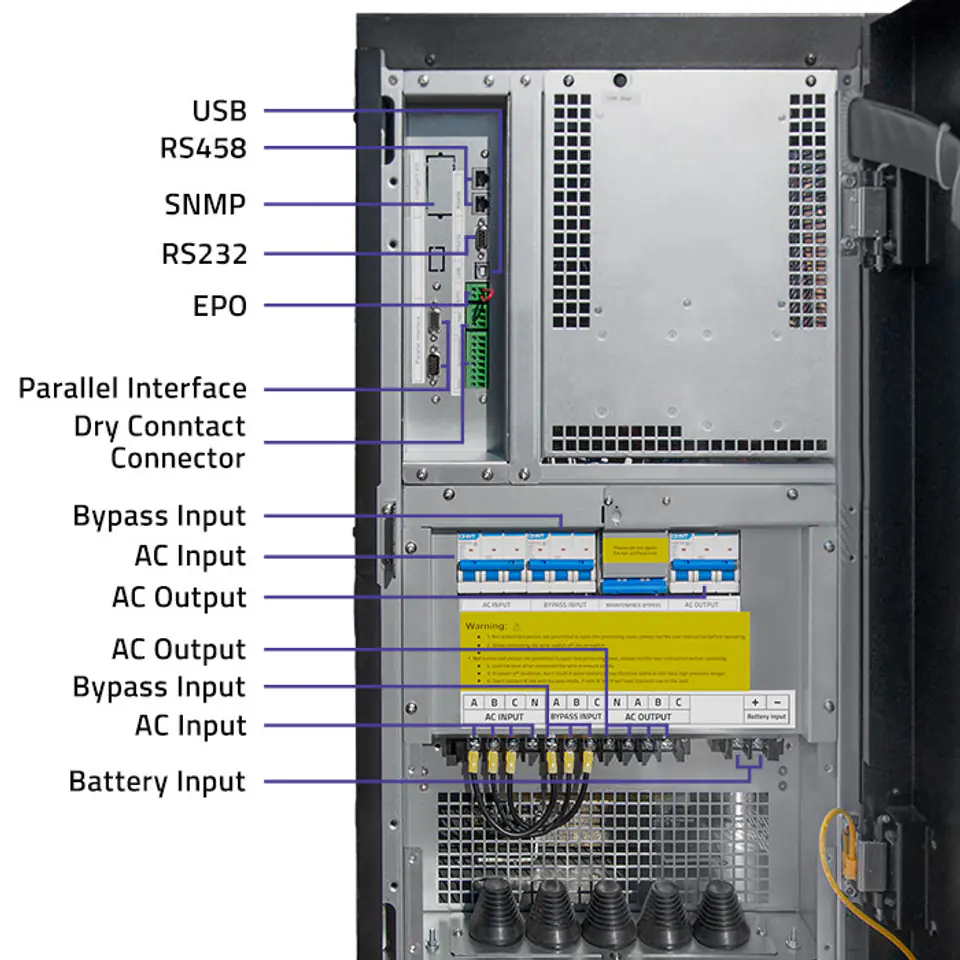

RS 458RS 232USB EPO
40-50 dB
1 A - 40 A
LCD
0 - 40°C
30-90%
Uninterruptible network power supplies for telecommunications equipment and for automatic data processing equipment, the so-called 3-phase uninterruptible UPS. In the event of a power failure, it provides a "reserve" of energy, thus protecting against data loss.
The efficiency of the drive > 91%. The UPS has a built-in AVR stabilizer.
Black
UPS RS-232 cableCD for opening the front panelUser manual

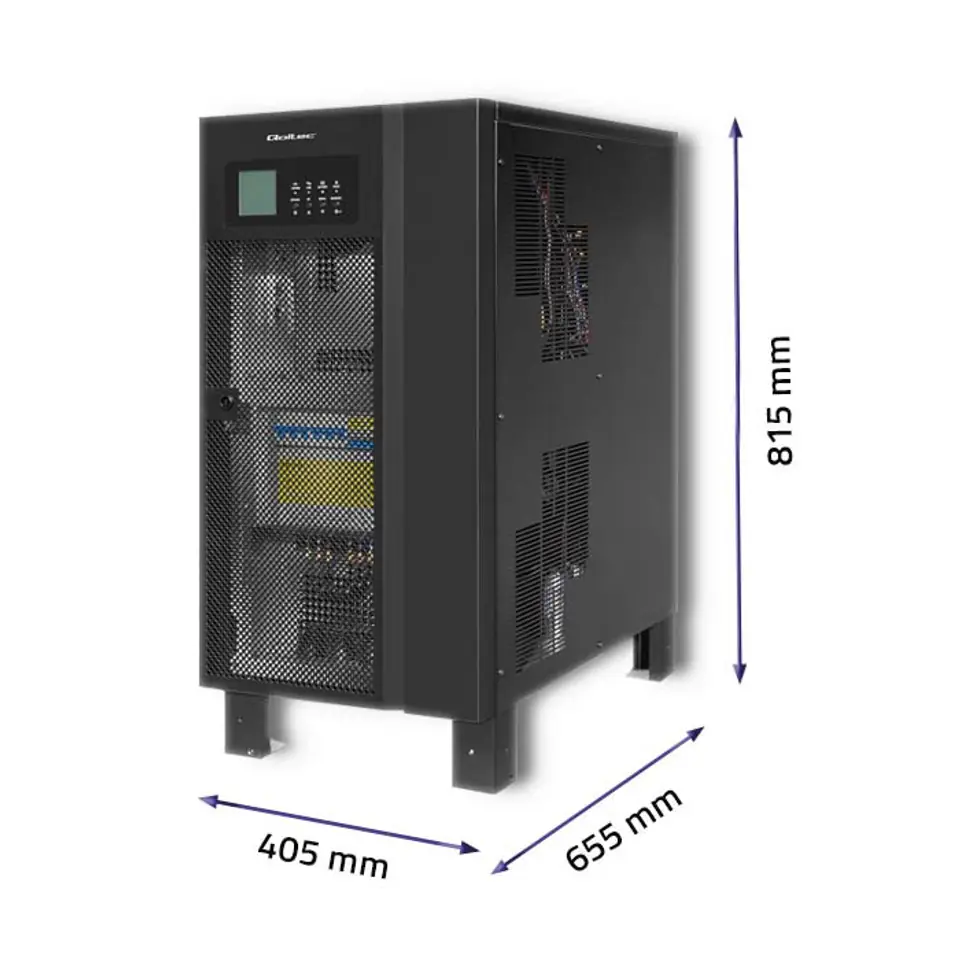

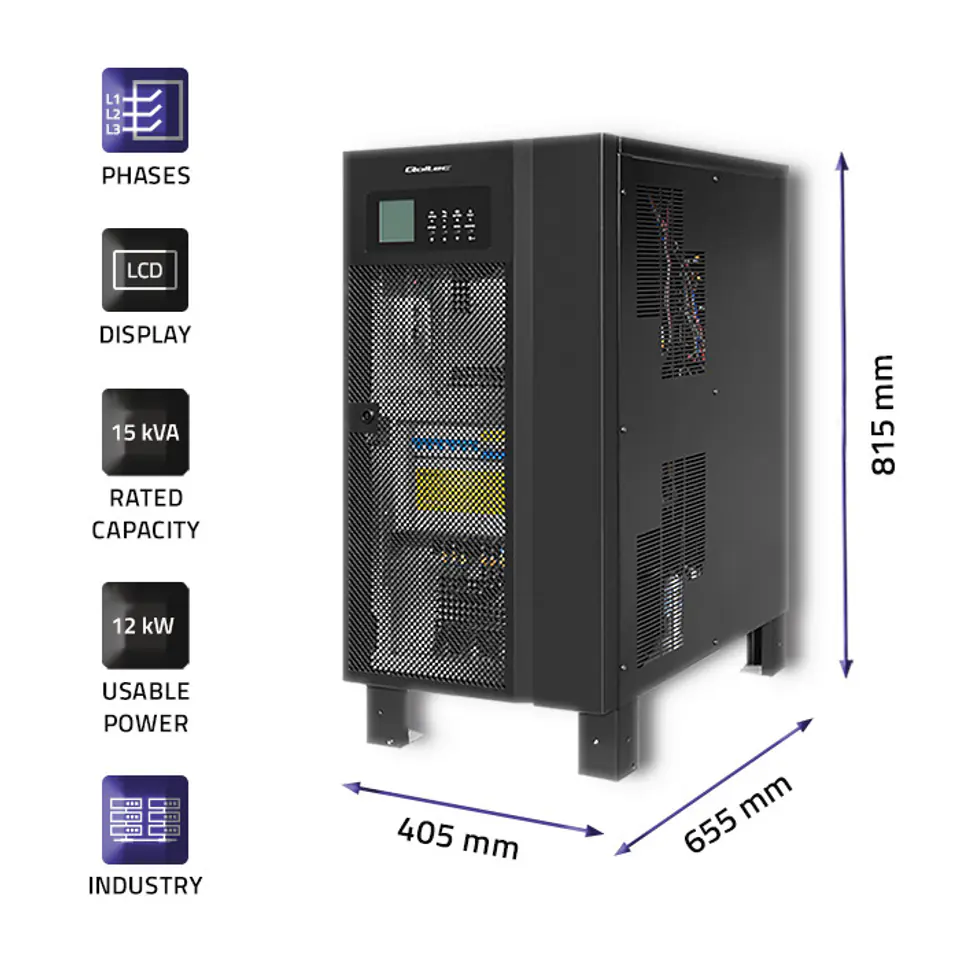

405 x 815 x 655 mm
145 kg
146 kg
24 months
