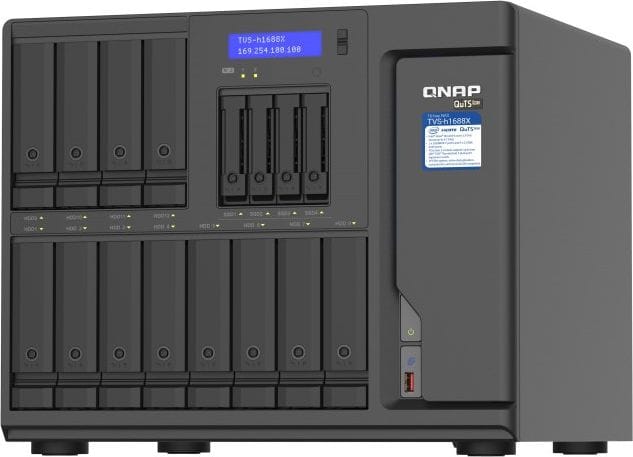

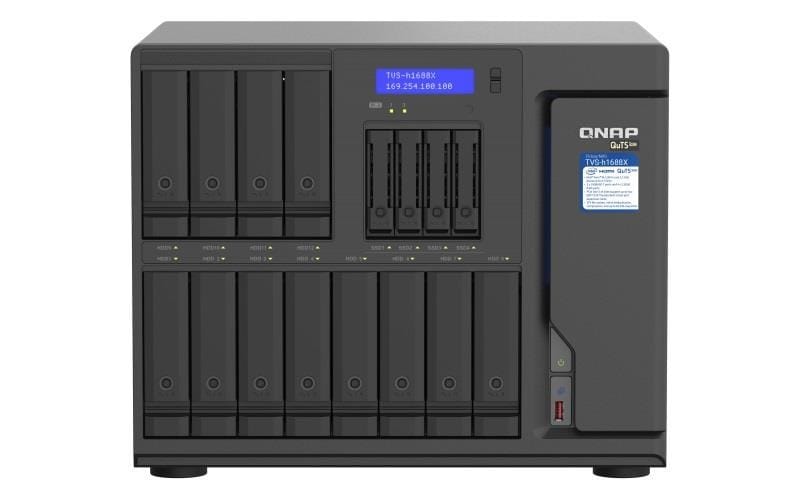

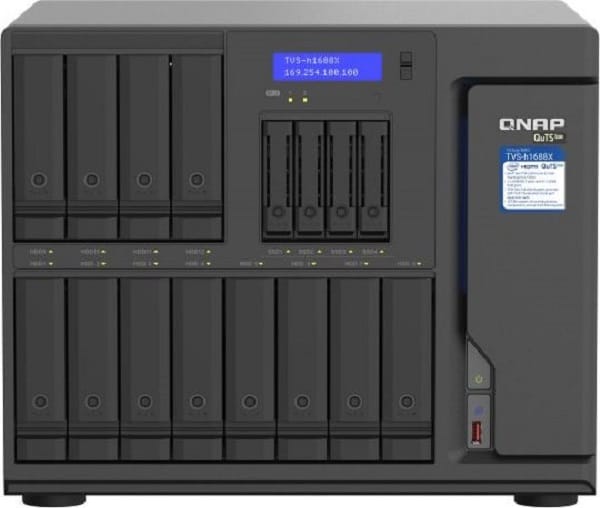

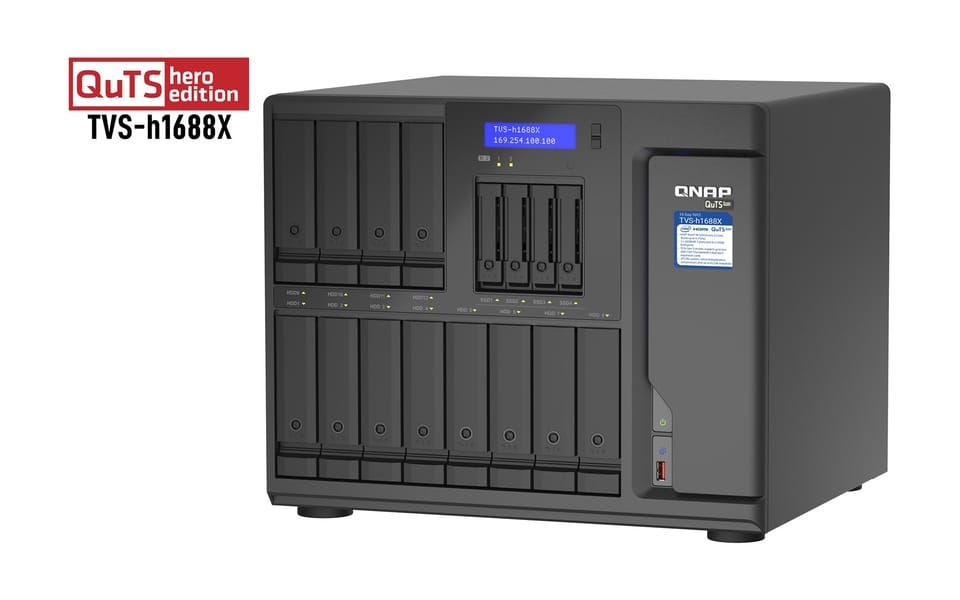

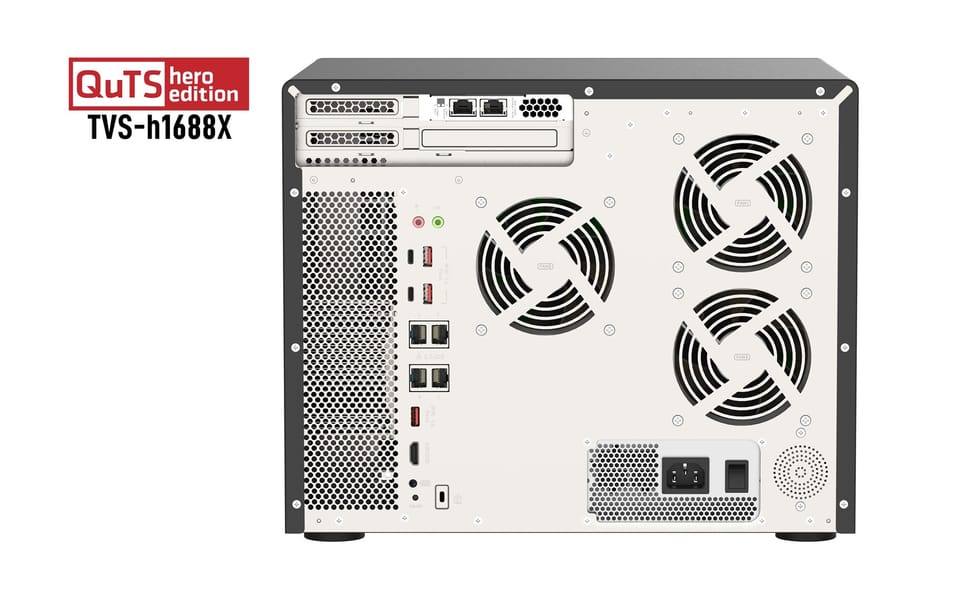

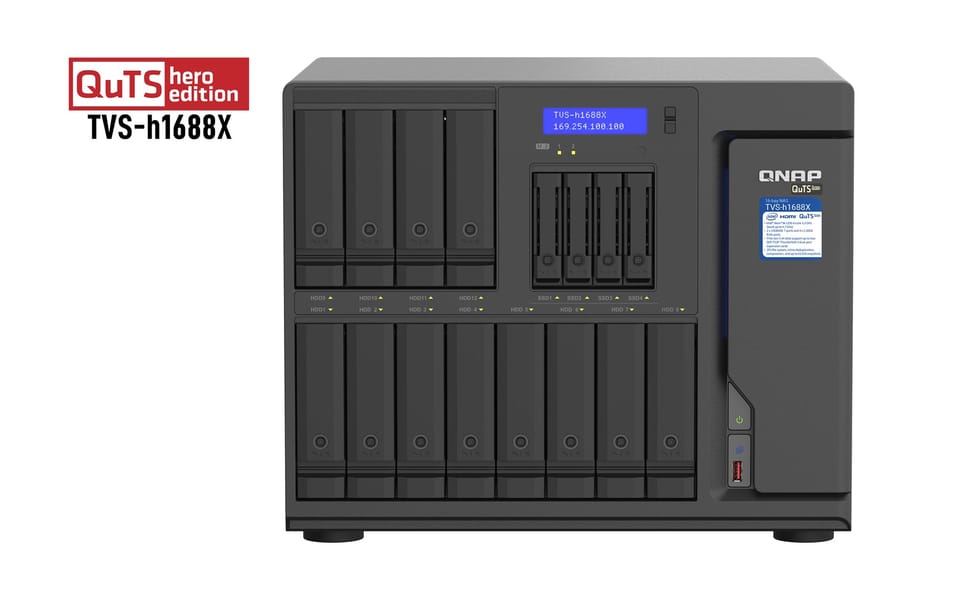

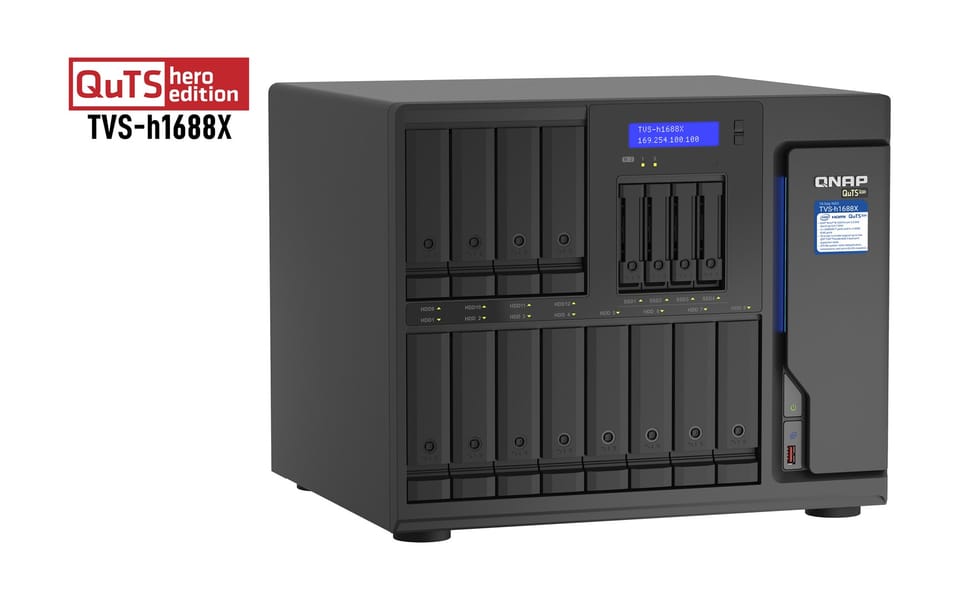

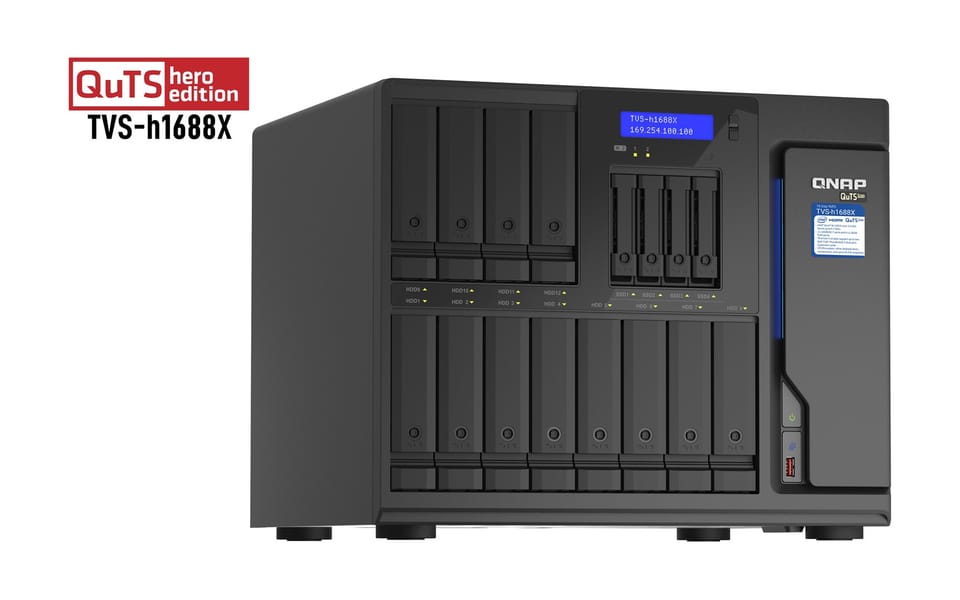

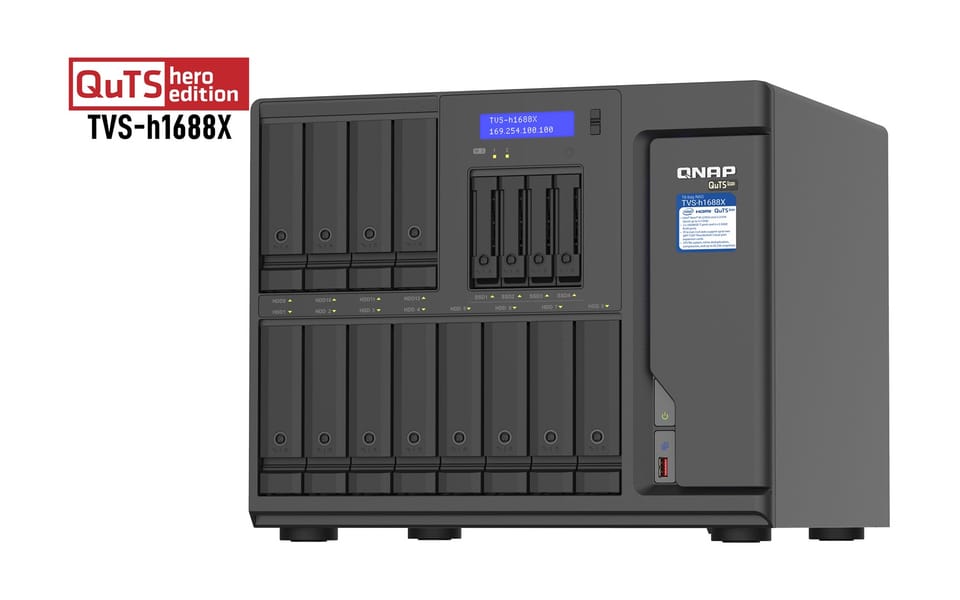

QNAP TVS-h1688X NAS Tower Ethernet LAN Black W-1250
€4,893.17
Shipping from warehouse: A3
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- QNAP
- Product code:
- TVS-h1688X-W1250-32G / 4713213518403
Share this product:
Specification
| Ac input voltage: | 100 - 240 V |
|---|---|
| Access control list (acl): | Yes |
| Backup function: | Yes |
| Browser supported: | Apple Safari, Google Chrome, Internet Explorer, Mozilla Firefox |
| Built-in display: | Yes |
| Built-in ftp server: | Yes |
| Buzzer: | Yes |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Cables included: | AC, LAN (RJ-45) |
| Chassis type: | Tower |
| Concurrent connections: | 10000 |
| Cooling type: | Active |
| Copper ethernet cabling technology: | 10GBASE-T |
| Cpu configuration (max): | 1 |
| Depth: | 319.8 mm |
| Device class: | Small & Medium Business |
| Dhcp client: | Yes |
| Dhcp server: | Yes |
| Disk roaming: | Yes |
| Display type: | LCD |
| Drive tray key included: | Yes |
| Dynamic dns (ddns): | Yes |
| Ecc: | Yes |
| Embedded options available: | No |
| Enhanced intel speedstep technology: | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 6 |
| Ethernet lan data rate supported (max): | 10000 Mbit/s |
| Ethernet lan data rates: | 2500 Mbit/s, 100 Mbit/s, 1000, 10000 Mbit/s |
| Execute disable bit: | Yes |
| Fan diameter: | 8 cm |
| Fan diameter 2: | 9.7 cm |
| Fan voltage: | 12 V |
| Flash memory: | 5000 MB |
| Harmonized system (hs) code: | 84714100 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4b |
| Height: | 303.8 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Idle states: | Yes |
| Installed storage drive type: | No |
| Intel 64: | Yes |
| Intel clear video technology: | Yes |
| Intel trusted execution technology: | Yes |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Internal memory: | 32 GB |
| Internal memory type: | DDR4 |
| Iscsi support: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | USB, HDD, System, LAN, SSD |
| Link aggregation: | Yes |
| Linux operating systems supported: | Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, SuSE Linux 12.3, Ubuntu 14.04, Ubuntu 16.10, SuSE Linux 12.0, Ubuntu 17.10, Ubuntu 16.04, CentOS 7.0, Ubuntu 20.04 LTS, Ubuntu 18.04 LTS, SuSE Linux 15 |
| Load balancing system: | Yes |
| Mac operating systems supported: | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra |
| Maximum ram supported: | 128 GB |
| Memory form factor: | UDIMM |
| Memory slots: | 4 |
| Multilingual support: | Yes |
| Noise level: | 25.8 dB |
| Number of fans: | 5 fan(s) |
| Number of m.2 (m & b) slots: | 2 |
| Number of power supply units: | 1 |
| Number of screws: | 72 |
| Number of storage drives supported: | 16 |
| On-board graphics card model: | Intel UHD Graphics P630 |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | QuTS hero |
| Operating system version: | h5.0.0 |
| Operating temperature (t-t): | 0 - 40 °C |
| Other operating systems supported: | IBM AIX 7.2, IBM AIX 7.1, Solaris 10, Solaris 11 |
| Package weight: | 16.3 kg |
| Pci express x4 (gen 3.x) slots: | 2 |
| Pci express x8 (gen 3.x) slots: | 1 |
| Power cables quantity: | 1 |
| Power consumption (sleep): | 91.26 W |
| Power consumption (typical): | 108.67 W |
| Power supply location: | Built-in |
| Power supply unit (psu) capacity: | 550 W |
| Processor boost frequency: | 4.7 GHz |
| Processor cache: | 12 MB |
| Processor cores: | 6 |
| Processor family: | Intel® Xeon® |
| Processor frequency: | 3.3 GHz |
| Processor manufacturer: | Intel |
| Processor model: | W-1250 |
| Processor threads: | 12 |
| Product colour: | Black |
| Quick installation guide: | Yes |
| Raid levels: | 60, 5, 10, 0, JBOD, 50, 1, 6 |
| Raid rebuild: | Yes |
| Raid support: | Yes |
| Reset button: | Yes |
| S.m.a.r.t. support: | Yes |
| Security algorithms: | SSL/TLS, SSH, HTTPS, FIPS 140-2, 256-bit AES |
| Server operating systems supported: | Windows Server 2012, Windows Server 2019, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Snapshot: | Yes |
| Storage drive sizes supported: | 2.5, 3.5", M.2 |
| Storage drives installed: | No |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported file systems: | ext3, NTFS, ZFS, exFAT, ext4, HFS+, FAT32 |
| Supported network protocols: | IPv4, IPv6 |
| Supported storage drive interfaces: | Serial ATA II, Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| System log: | Yes |
| Third-party support: | Yes |
| Type: | NAS |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 2 |
| Usb copy function: | Yes |
| Usb port: | Yes |
| Wake-on-lan ready: | Yes |
| Weight: | 13.4 kg |
| Width: | 369.9 mm |
| Windows operating systems supported: | Windows 8 Pro x64, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 7 Home Premium x64, Windows 10 Education x64, Windows 10 Home x64, Windows 8, Windows 7 Ultimate x64, Windows 7 x64, Windows 10, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows 7 Professional, Windows 10 Pro x64, Windows 8 Enterprise, Windows 8 x64, Windows 10 Education, Windows 7 Professional x64, Windows 10 Home, Windows 7 Starter x64, Windows 11 x64, Windows 7 Enterprise x64, Windows 11, Windows 10 Enterprise x64, Windows 7, Windows 10 x64 |
