Powered by AMD Ryzen 7000 series processors based on AMD's cutting-edge socket AM5 platform, the TS-h1277AXU-RP's ZFS-based storage and backup solution delivers excellent performance and enterprise-level capabilities. With a revolutionary multi-core CPU, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-high bandwidth, and reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.

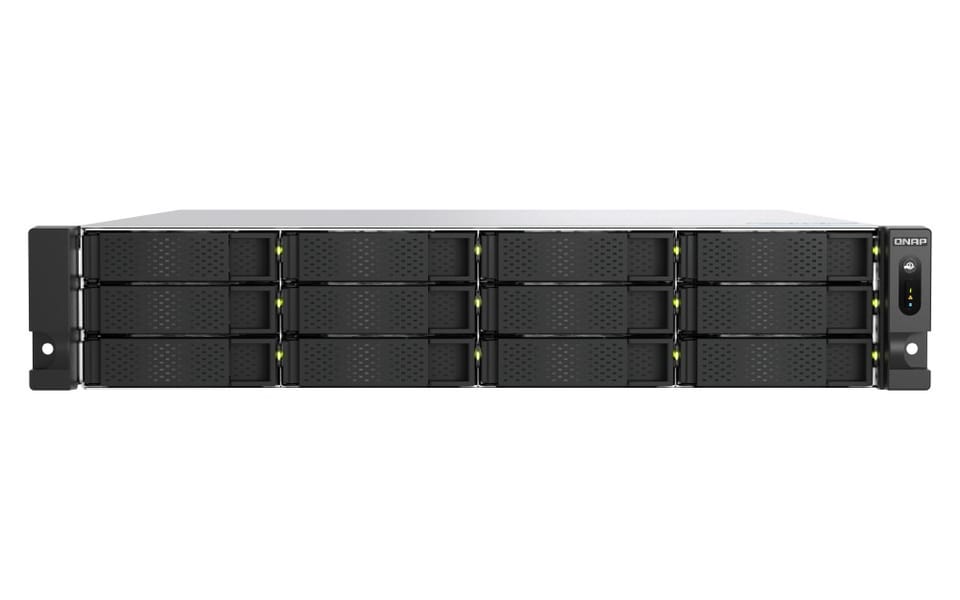

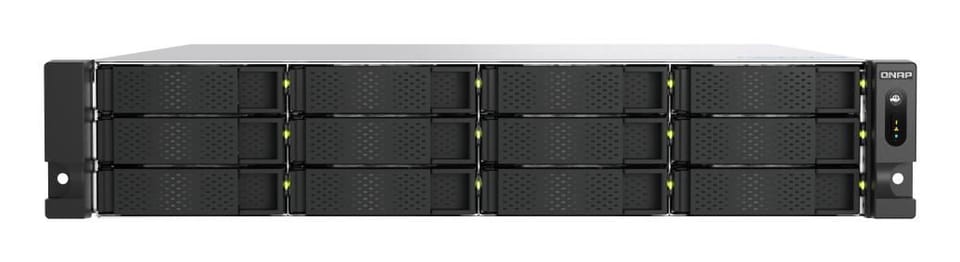

QNAP TS-H1277AXU-RP NAS Rack 2U) Intel Xeon E E-2136 32 GB DDR4 168 TB HDD QuTS hero Blac
€5,712.31
Shipping from warehouse: A1
Estimated shipping: Mon, Mar 31 - Thu, Apr 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- QNAP
- Product code:
- TS-h1277AXU-RP-R7-32G / 4711103084670
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Backup features: | Cloud, iSCSI LUN |
| Backup function: | Yes |
| Browser supported: | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Built-in ftp server: | Yes |
| Bus type: | DMI3 |
| Buzzer: | Yes |
| Cables included: | LAN (RJ-45), AC |
| Chassis type: | Rack (2U) |
| Cooling type: | Active |
| Cpu configuration (max): | 1 |
| Depth: | 562 mm |
| Device class: | Large Enterprise Business |
| Dhcp client: | Yes |
| Dhcp server: | Yes |
| Disk roaming: | Yes |
| Disk scan: | Yes |
| Dynamic dns (ddns): | Yes |
| Ecc: | Yes |
| Embedded options available: | No |
| Enhanced intel speedstep technology: | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 6 |
| Ethernet lan data rate supported (max): | 10000 Mbit/s |
| Ethernet lan data rates: | 10000 Mbit/s, 1000 Mbit/s |
| Execute disable bit: | Yes |
| Fan diameter: | 6 cm |
| Fan voltage: | 12 V |
| Fiber optic connector: | SFP+ |
| Fiber ports quantity: | 2 |
| Flash memory: | 5000 MB |
| Harmonized system (hs) code: | 84714100 |
| Height: | 88.3 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Idle states: | Yes |
| Installed storage drive type: | HDD |
| Intel 64: | Yes |
| Intel enhanced halt state: | Yes |
| Intel secure key technology version: | 1.00 |
| Intel trusted execution technology: | Yes |
| Intel tsx-ni: | Yes |
| Intel tsx-ni version: | 1.00 |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Internal memory: | 32 GB |
| Internal memory type: | DDR4 |
| Iscsi support: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | Status, LAN, HDD |
| Linux operating systems supported: | Yes |
| Mac operating systems supported: | Yes |
| Maximum ram supported: | 32 GB |
| Memory form factor: | UDIMM |
| Memory slots: | 4 |
| Multilingual support: | Yes |
| Number of fans: | 2 fan(s) |
| Number of power supply units: | 2 |
| Number of screws: | 84 |
| Number of storage drives installed: | 12 |
| Number of storage drives supported: | 12 |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | QuTS hero |
| Operating system version: | h5.0.0 |
| Operating temperature (t-t): | 0 - 40 °C |
| Pci express x4 (gen 3.x) slots: | 2 |
| Pci express x8 (gen 3.x) slots: | 1 |
| Power cables quantity: | 2 |
| Power consumption (typical): | 105.12 W |
| Power supply location: | Built-in |
| Power supply unit (psu) capacity: | 500 W |
| Processor boost frequency: | 4.5 GHz |
| Processor cache: | 12 MB |
| Processor cores: | 6 |
| Processor family: | Intel Xeon E |
| Processor frequency: | 3.3 GHz |
| Processor manufacturer: | Intel |
| Processor model: | E-2136 |
| Processor threads: | 12 |
| Product colour: | Black |
| Raid levels: | 60, 6, 10, 1, 5, JBOD, 0, 50 |
| Raid rebuild: | Yes |
| Raid support: | Yes |
| Redundant power supply (rps) support: | Yes |
| Reset button: | Yes |
| S.m.a.r.t. support: | Yes |
| Security algorithms: | FIPS 140-2, 256-bit AES, TLS |
| Server operating systems supported: | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2012, Windows Server 2019 |
| Share folder: | CIFS/SMB |
| Snapshot: | Yes |
| Storage drive capacity: | 14 TB |
| Storage drive interface: | Serial ATA II, Serial ATA III |
| Storage drive sizes supported: | 2.5, 3.5" |
| Storage drives installed: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported file systems: | ZFS, ext4, exFAT, FAT32, HFS+, ext3, NTFS |
| Supported storage drive interfaces: | Serial ATA II, Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| System log: | Yes |
| Total installed storage capacity: | 168 TB |
| Type: | NAS |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 2 |
| Usb port: | Yes |
| Wake-on-lan ready: | Yes |
| Web-based management: | Yes |
| Width: | 482 mm |
| Windows operating systems supported: | Windows 8, Windows 7, Windows 10 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
