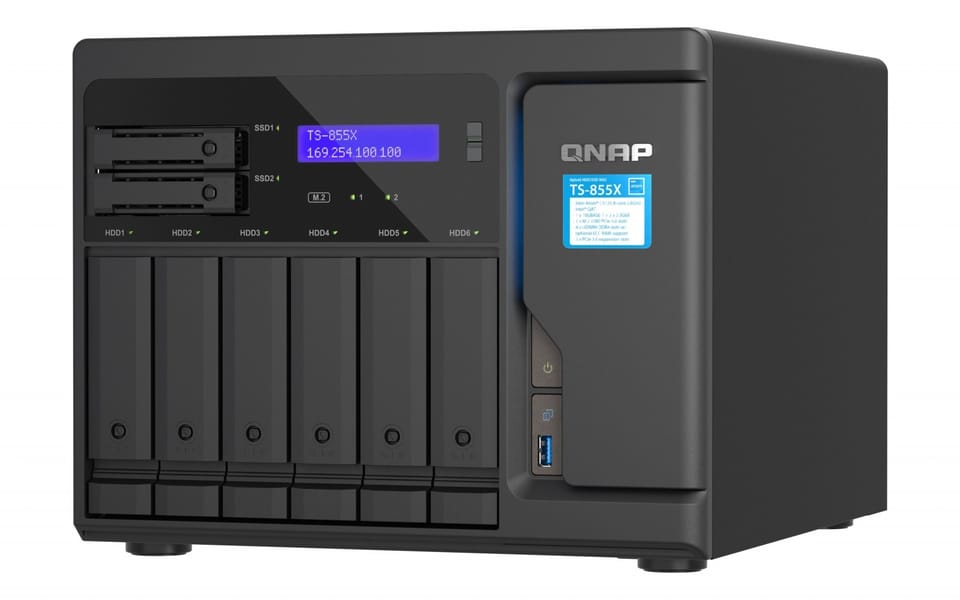

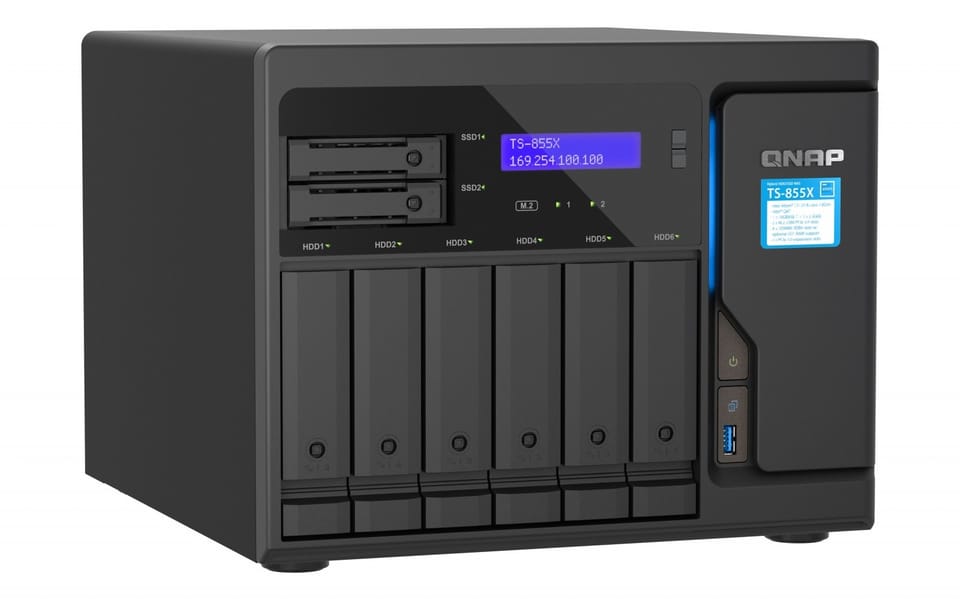

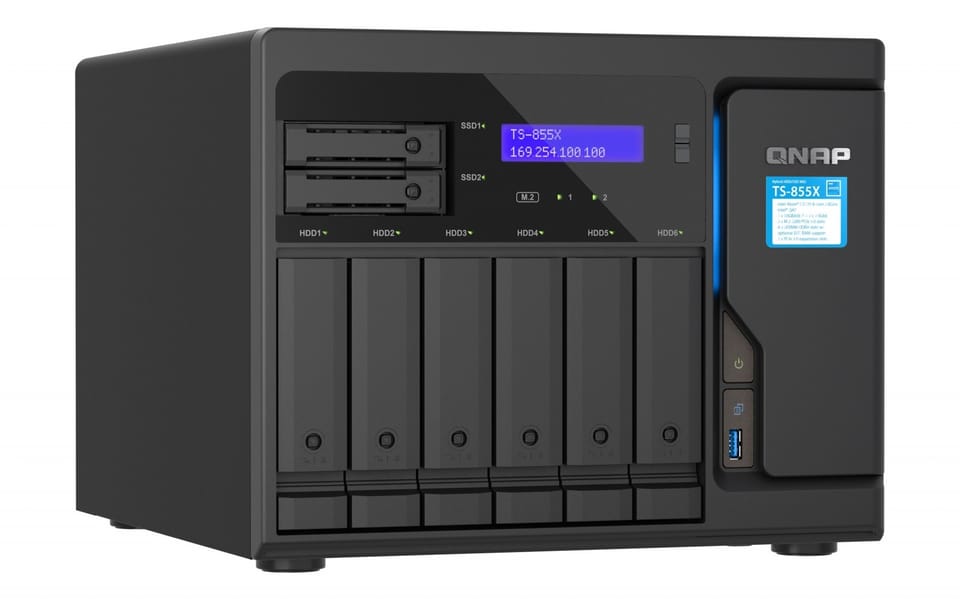

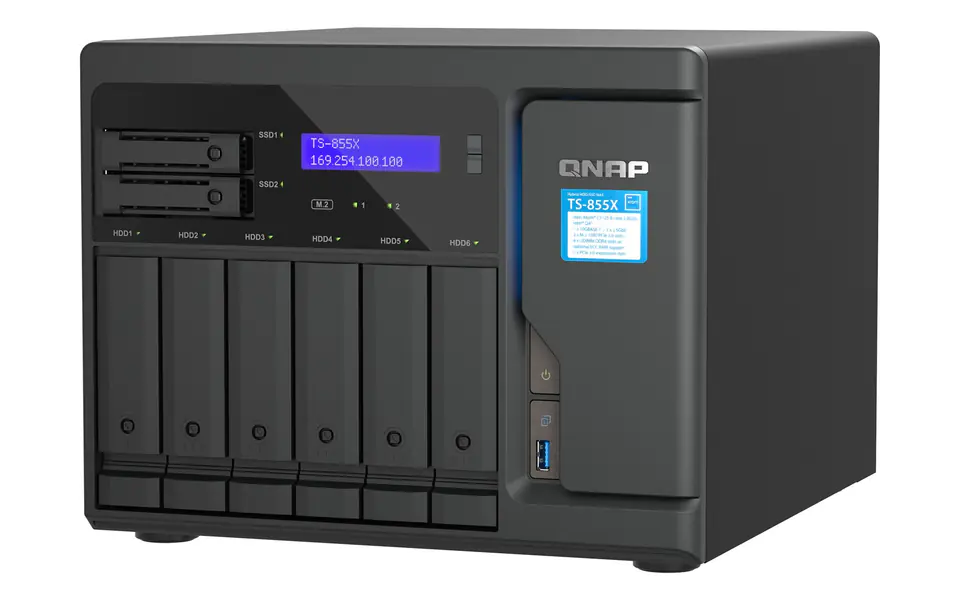

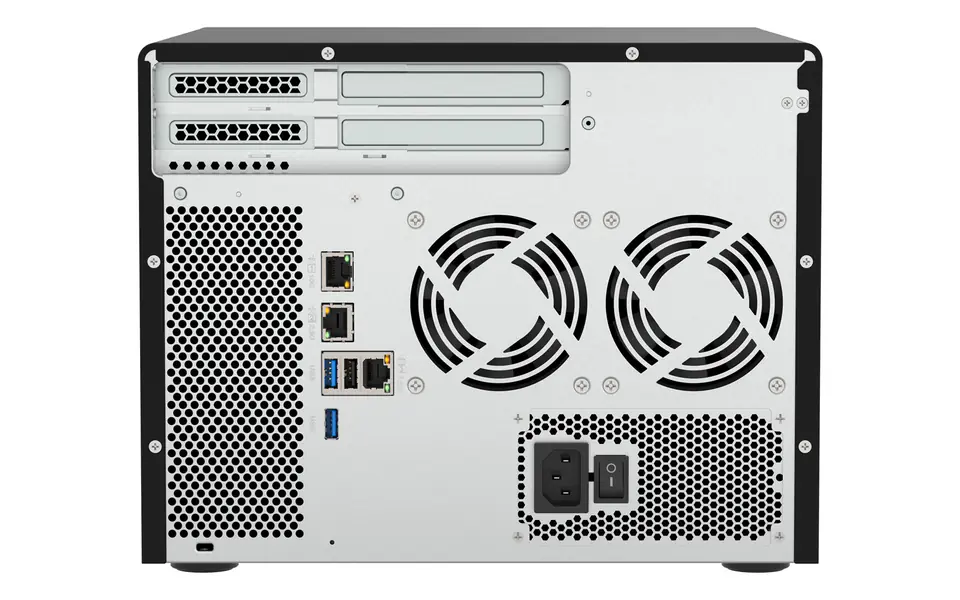

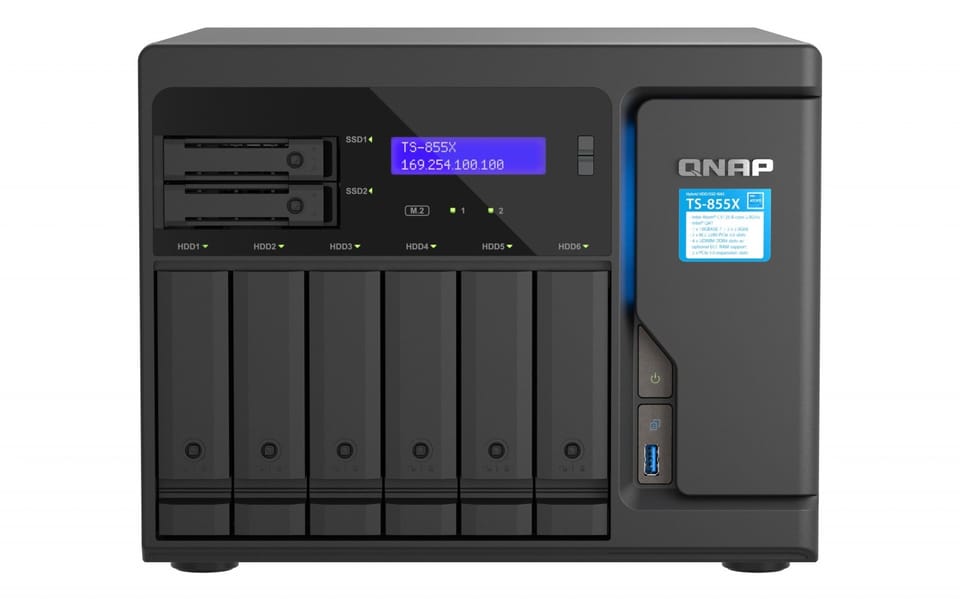

QNAP TS-855X SAN Tower Ethernet LAN Black C5125

€2,014.02
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
running out
Brand:
QNAP
Product code:
TS-855X-8G / 4711103084007

Specification

Ac input voltage:100 - 240 V
Access control list (acl):Yes
Backup features:iSCSI LUN, USB drive
Backup function:Yes
Browser supported:Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Built-in ftp server:Yes
Buzzer:Yes
Cable lock slot:Yes
Cable lock slot type:Kensington
Cables included:LAN (RJ-45), AC
Chassis type:Tower
Concurrent connections:700
Cooling type:Active
Depth:319.8 mm
Device class:Home & Home Office
Dhcp server:Yes
Disk roaming:Yes
Dynamic dns (ddns):Yes
Ecc:Yes
Ethernet lan:Yes
Ethernet lan (rj-45) ports:3
Ethernet lan data rate supported (max):10000 Mbit/s
Ethernet lan data rates:1000 Mbit/s, 100, 10, 10000 Mbit/s, 2500 Mbit/s
Fan diameter:8 cm
Fan diameter 2:9 cm
Fibre channel:Yes
Flash memory:5000 MB
Height:231.9 mm
Hot spare:Yes
Hot-swap drive bays:Yes
Installed storage drive type:No
Internal memory:8 GB
Internal memory type:DDR4
Iscsi support:Yes
Jumbo frames support:Yes
Led indicators:LAN, HDD, USB, Power, Status, SSD
Linux operating systems supported:SuSE Linux 12.3, SuSE Linux 15, CentOS 7.0, SuSE Linux 12.0, Ubuntu 14.04
Mac operating systems supported:Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur
Management protocols:SNMP V2, V3
Maximum ram supported:128 GB
Memory form factor:UDIMM
Memory slots:4
Multilingual support:Yes
Number of fans:3 fan(s)
Number of m.2 (m & b) slots:2
Number of power supply units:1
Number of screws:56
Number of storage drives supported:8
On/off switch:Yes
Online raid expansion:Yes
Online raid migration:Yes
Operating relative humidity (h-h):5 - 95%
Operating system installed:QNAP QTS
Operating system version:5.0.1
Operating temperature (t-t):0 - 40 °C
Other operating systems supported:IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11
Package weight:10.1 kg
Pci express x4 (gen 3.x) slots:2
Power cables quantity:2
Power consumption (typical):75.79 W
Power supply location:Built-in
Power supply unit (psu) capacity:250 W
Processor cores:8
Processor family:Intel Atom®
Processor frequency:2.8 GHz
Processor manufacturer:Intel
Processor model:C5125
Product colour:Black
Quick installation guide:Yes
Raid levels:10, 60, 5, 50, 1, JBOD, 6, 0
Raid rebuild:Yes
Raid support:Yes
Reset button:Yes
S.m.a.r.t. support:Yes
Security algorithms:HTTPS, FIPS 140-2, SSH, 256-bit AES
Server operating systems supported:Windows Server 2012 R2, Windows Server 2016, Windows Server 2012, Windows Server 2019, Windows Server 2008 R2
Share folder:CIFS/SMB
Snapshot:Yes
Storage drive capacity:0 GB
Storage drive sizes supported:2.5, 3.5"
Storage drives installed:No
Storage temperature (t-t):-20 - 70 °C
Supported file systems:exFAT, FAT32, ext4, HFS+, ext3, NTFS
Supported network protocols:IPv4, IPv6
Supported storage drive interfaces:Serial ATA II, Serial ATA III
Supported storage drive types:HDD & SSD
System log:Yes
Total installed storage capacity:0 TB
Type:SAN
Usb 2.0 ports quantity:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:3
Usb copy function:Yes
Usb port:Yes
Wake-on-lan ready:Yes
Weight:8.5 kg
Width:292.9 mm
Windows operating systems supported:Windows 10 Pro x64, Windows 7 Professional, Windows 10, Windows 10 IOT Core, Windows 10 Home, Windows 8 Pro x64, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Home Basic, Windows 10 Home x64, Windows 7 Home Premium x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 10 Enterprise x64, Windows 10 Education x64, Windows 8 Enterprise, Windows 8 x64, Windows 10 Education, Windows 11 x64, Windows 8, Windows 11 Home, Windows 7, Windows 10 x64, Windows 7 Starter x64, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 11, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 7 Professional x64, Windows 11 Enterprise, Windows 11 Pro, Windows 7 Ultimate x64, Windows 7 x64, Windows 7 Ultimate, Windows 11 Enterprise x64

TS-855X

High-performance 8-core 10GbE NAS for hybrid infrastructure storage and high-speed virtualisation applications. The high-performance TS-855X has six 3.5-inch SATA drive bays (for HDDs), two 2.5-inch SATA drive bays (for SSDs) and an 8-core processor supporting Intel QuickAssist Technology (QAT), significantly helping businesses deploy storage and data virtualisation environments. Built-in high-speed 10GbE/2.5GbE connectivity helps realise fast data access, backup/restore, file server and virtualisation applications. The TS-855X, which comes standard with the QTS operating system, can be switched to use the ZFS-based QuTS hero operating system depending on user requirements. The TS-855X will be available and supported by QNAP for an extended period of time (until 2027), ideal for businesses requiring the deployment of matched NAS models in long-term projects.

2.5GbE/10GbE connectivity

Connectivity via two 2.5GbE ports and one 10GbE port. The two 2.5GbE ports also support SMB Multichannel speeds of up to 5Gb/s!

Flexible storage expansion

Connect the TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855X to provide additional capacity equal to 48 drives to meet growing business demands.

Flexible PCIe Gen3 expansion

Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fibre Channel cards.

M.2 SSD cache

Two M.2 PCIe NVMe slots enable SSD caching, SSD memory pools or automatic Qtiering.

Virtual machines and containers

Host virtual machines and containerised applications on a single appliance to optimise resource utilisation and IT budget. SR-IOV support.

Comprehensive data backup and restoration

Reliable backup centre for PC/Mac, virtual machines, containers, cloud and SaaS data.

Superior 8-core performance with up to 128GB RAM, and Intel QuickAssist Technology

The TS-855X provides exceptional 8-core processor performance to handle multiple simultaneous tasks. AES-NI encryption and Intel QuickAssist Technology (QAT) is supported, which offloads resource-intensive compression and improves IPsec/SSL cryptography performance. The TS-855X is equipped with four DDR4 UDIMM slots (8GB pre-installed), which can be upgraded to 128GB ECC RAM for heavier workloads. Providing a combination of high performance, reliability and capacity, the TS-855X provides a versatile and affordable storage solution for a variety of applications such as file servers, high-speed storage/backup/restore and virtualisation.

You can create a high-speed 10GbE/2.5GbE network environment

Equipped with dual 2.5GbE RJ45 (2.5G/1G/100M) LAN ports and a 10GBASE-T (2.5G/1G/100M) port, the TS-855X meets the bandwidth and reliability requirements of business applications, including virtualisation, large file transfers, high-speed backup/restore and real-time applications. Combine dual 2.5GbE ports with SMB 3.0 Multichannel for up to 5Gb/s fault-tolerant connections! QNAP also offers a number of managed and unmanaged 2.5GbE/10GbE switches, providing organisations with the support to deploy high-speed, secure and scalable network environments without going over budget.

M.2 PCIe slots for SSD caching and accelerated image detection based on artificial intelligence

The TS-855X is equipped with two M.2 PCIe Gen 3 slots to accommodate M.2 2280 NVMe SSDs (including SSD brands Micron, Seagate and WD) or Edge TPUs (sold separately) to enhance NAS performance.

Direct 2.5GbE connectivity to up to ten computers/workstations

If your team needs a high-speed environment and performance boost, the TS-855X with two 2.5GbE ports may be the solution. With the installation of two 4-port PCIe network adapters (QXG-2G4T-I225), the TS-855X can directly connect to up to ten computers/workstations without the required switches for faster transfer of large files/backup, video editing, etc.
