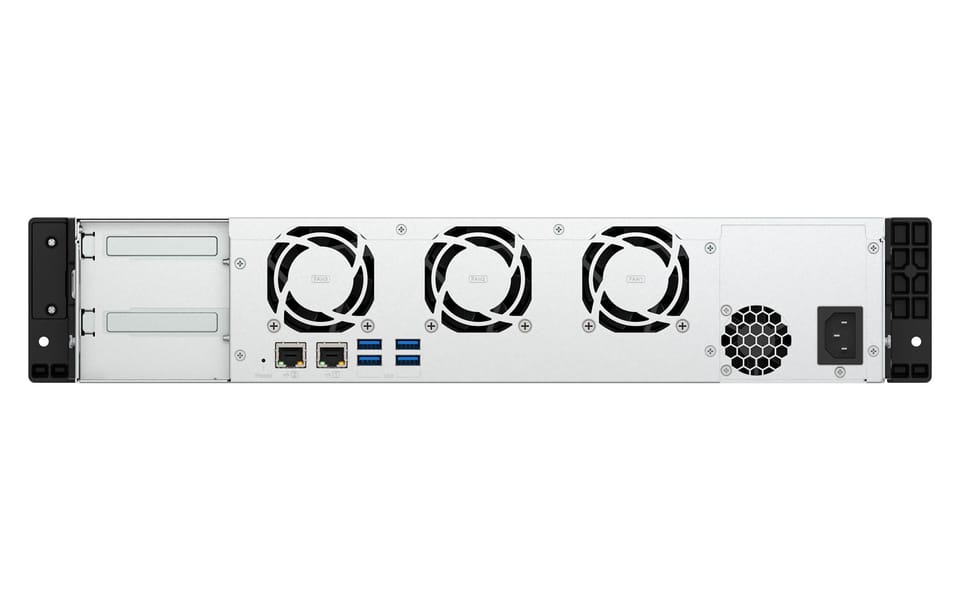

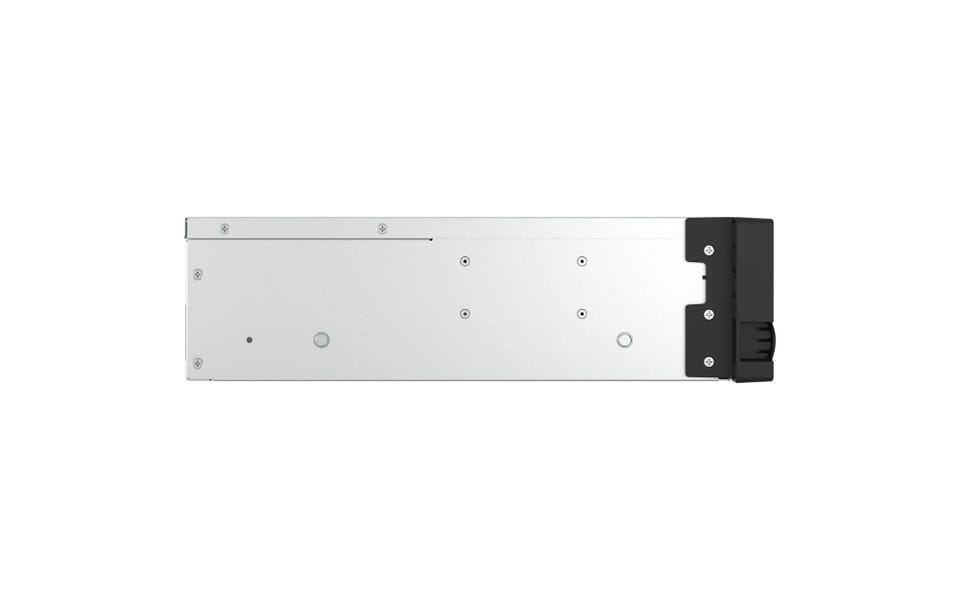

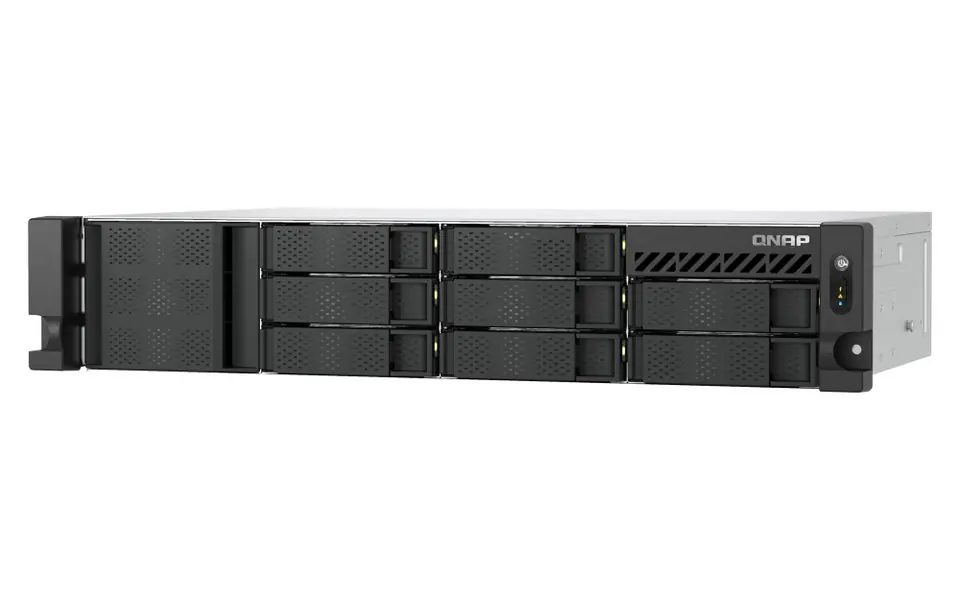

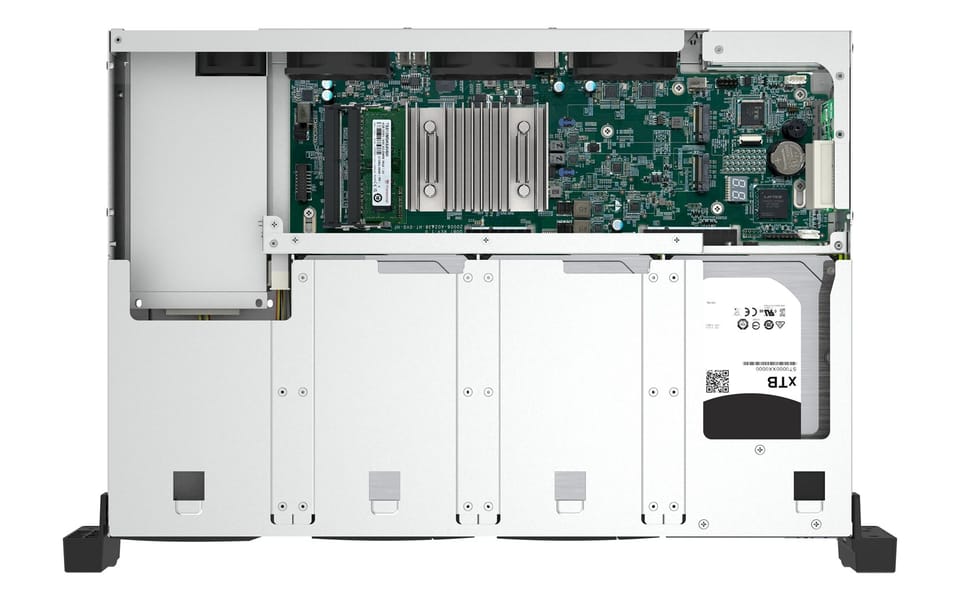

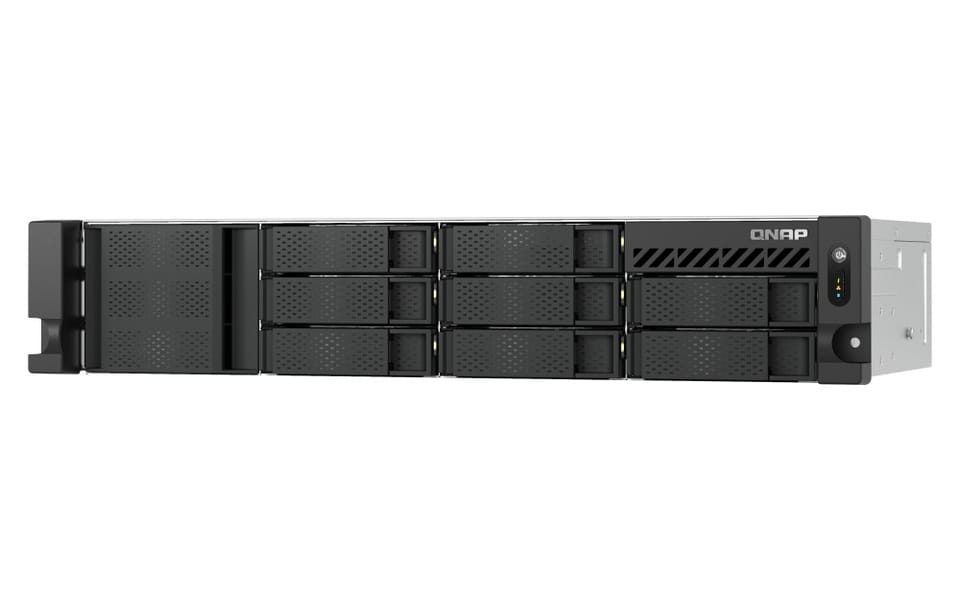

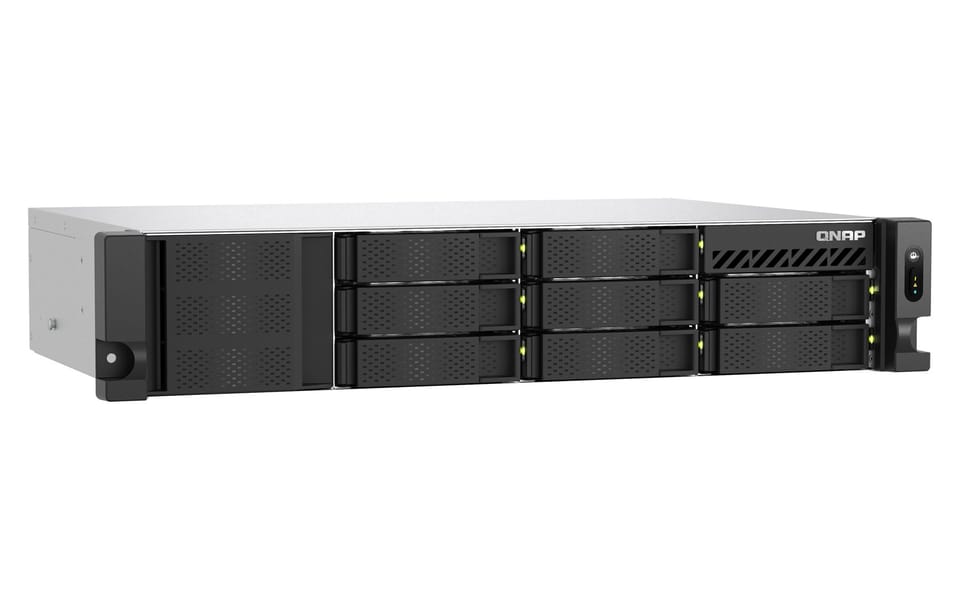

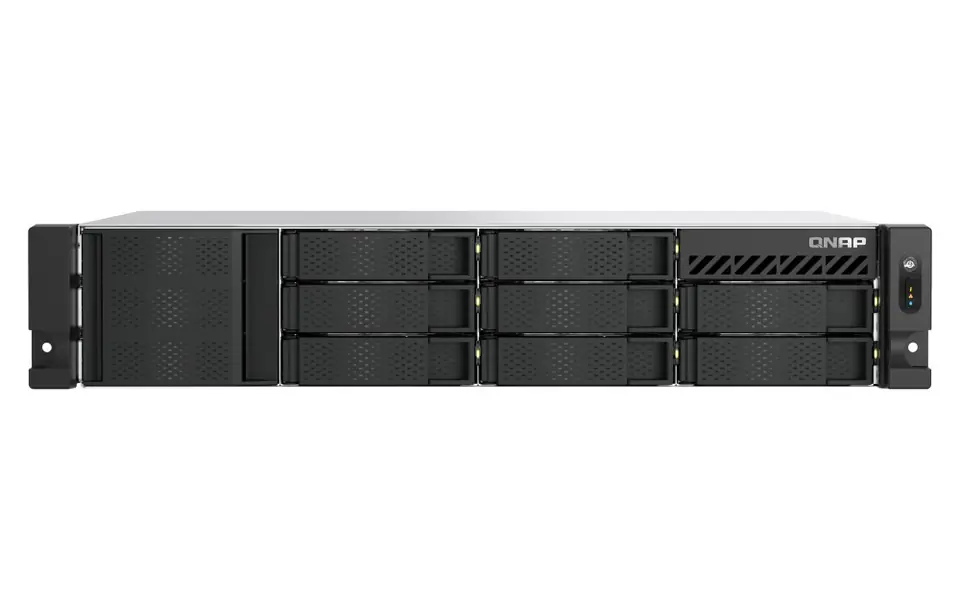

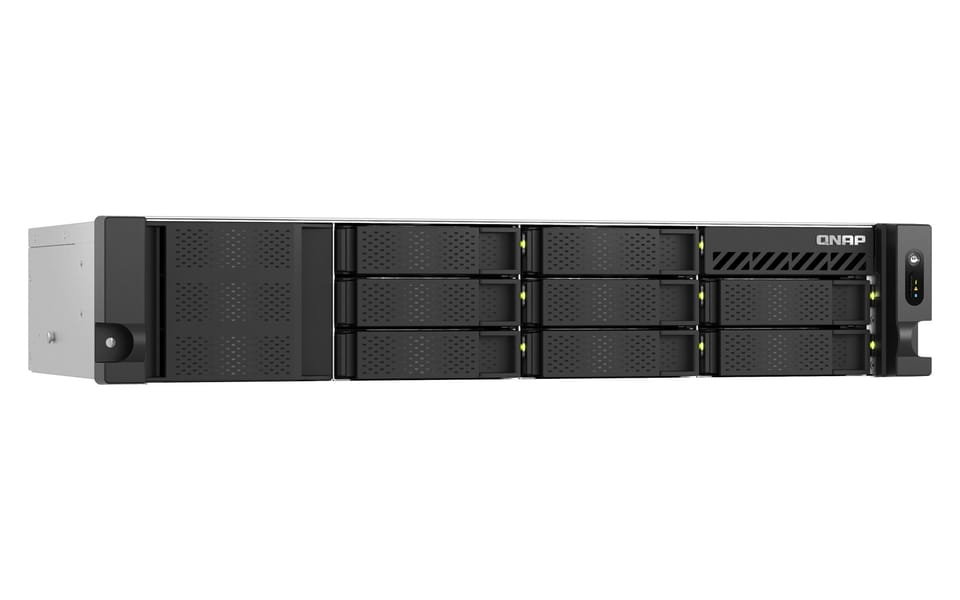

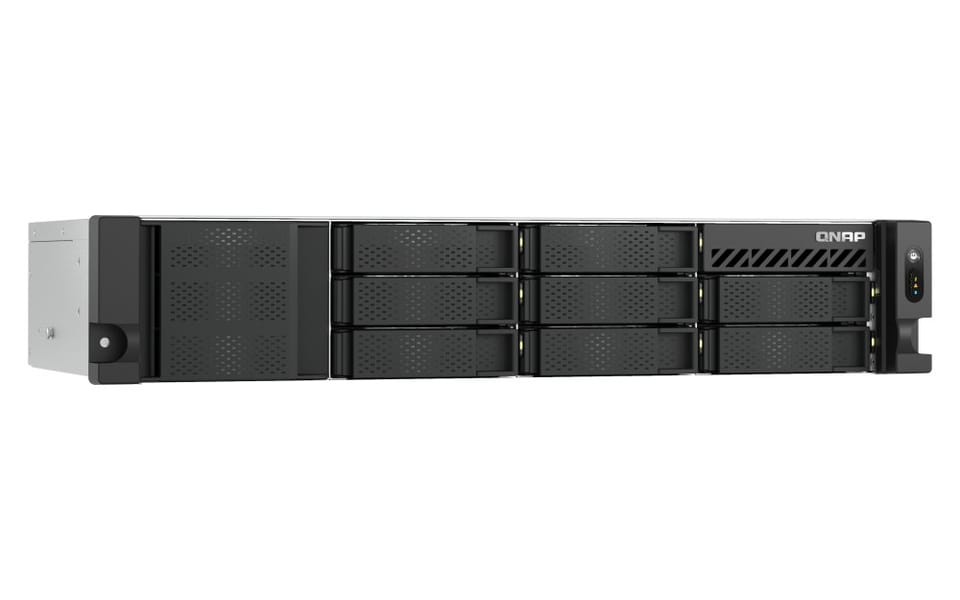

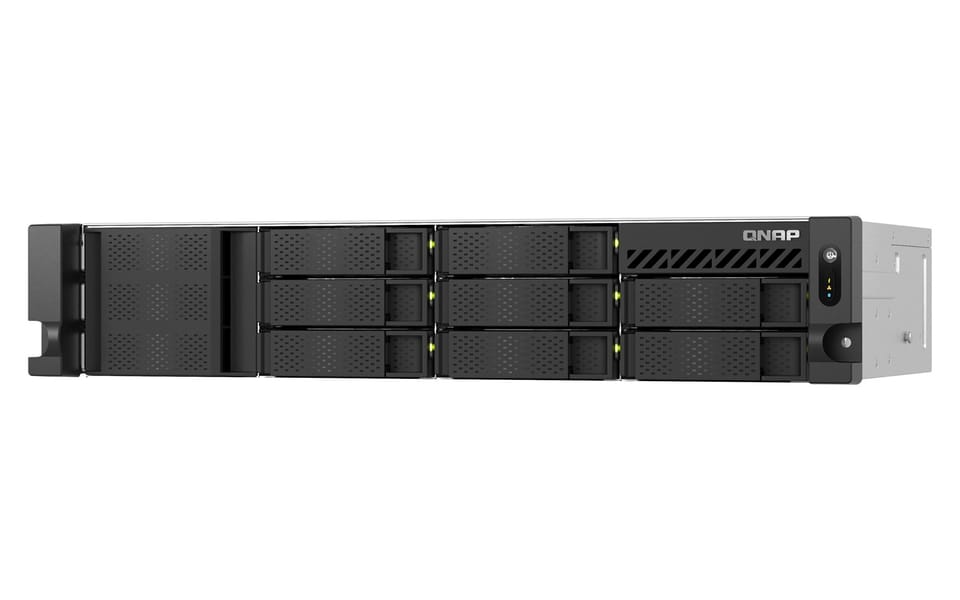

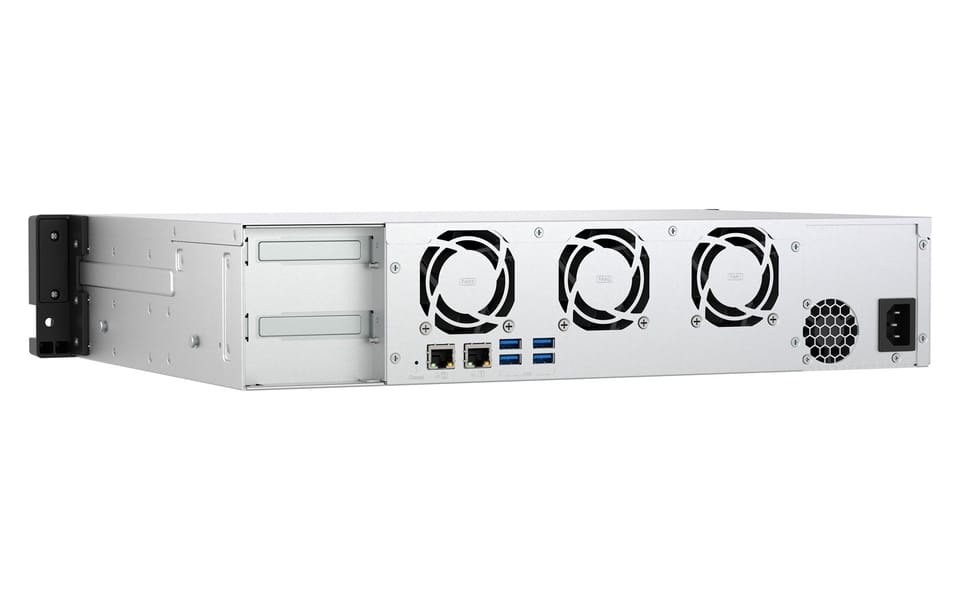

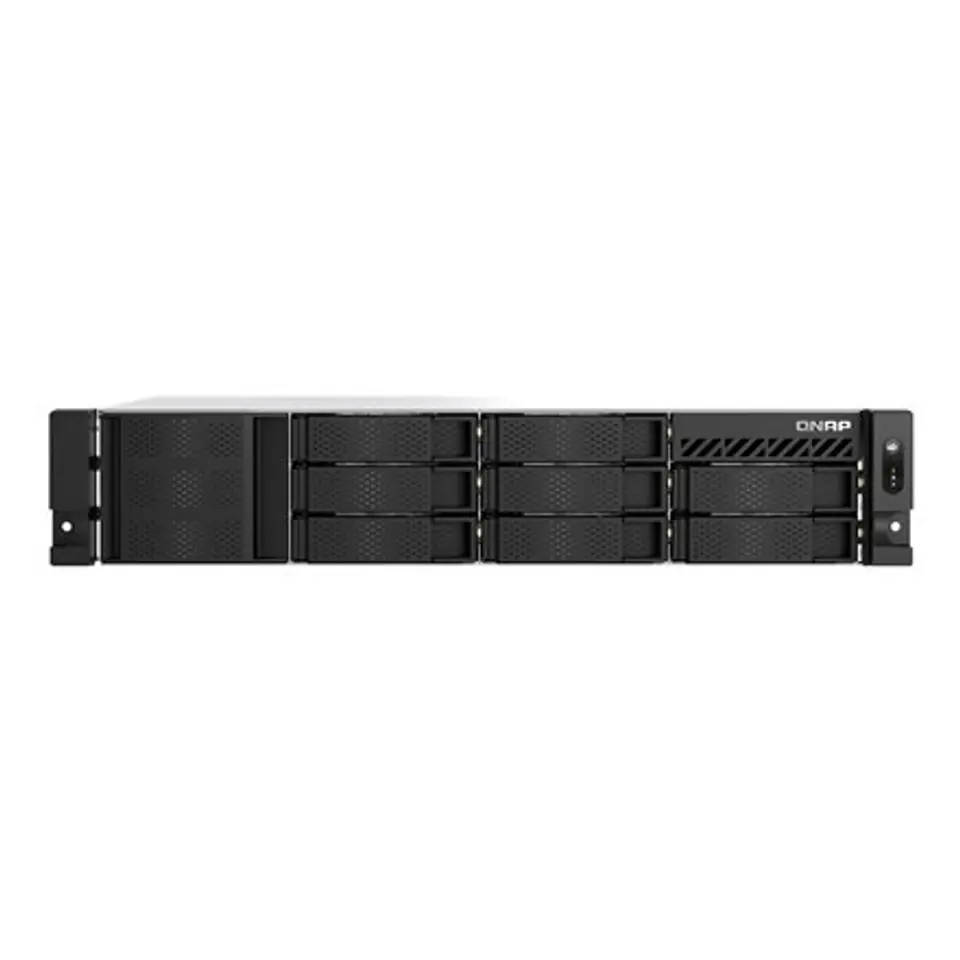

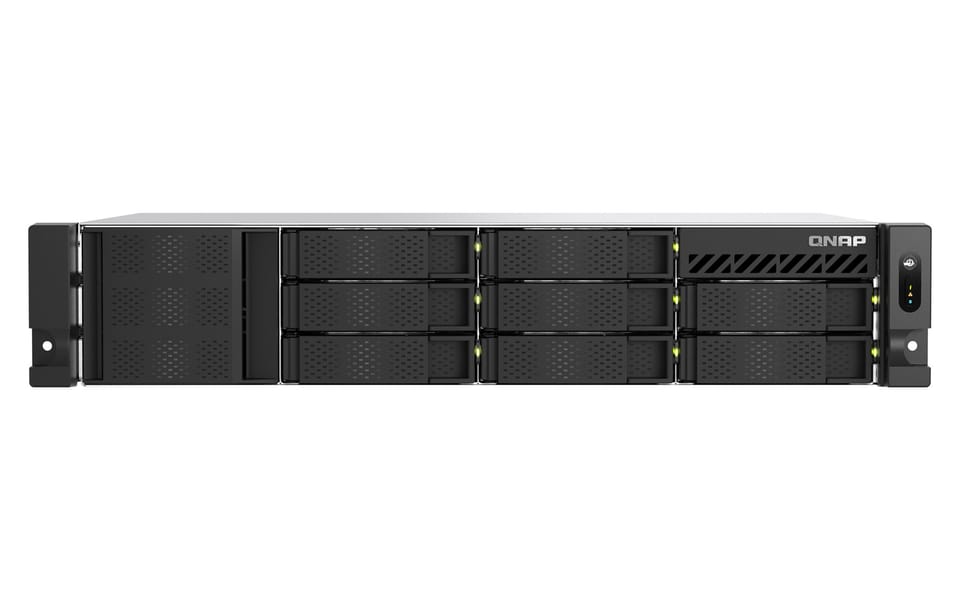

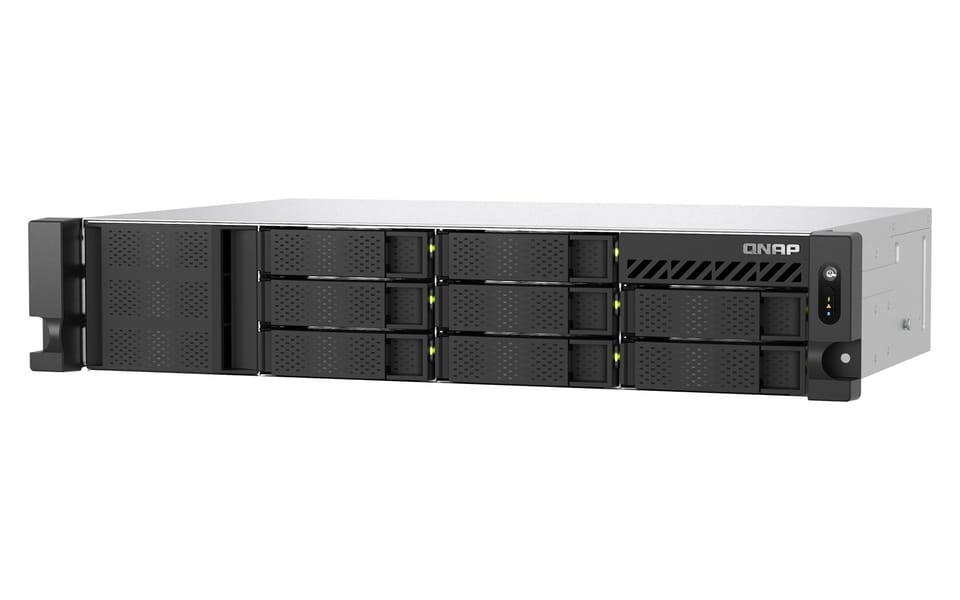

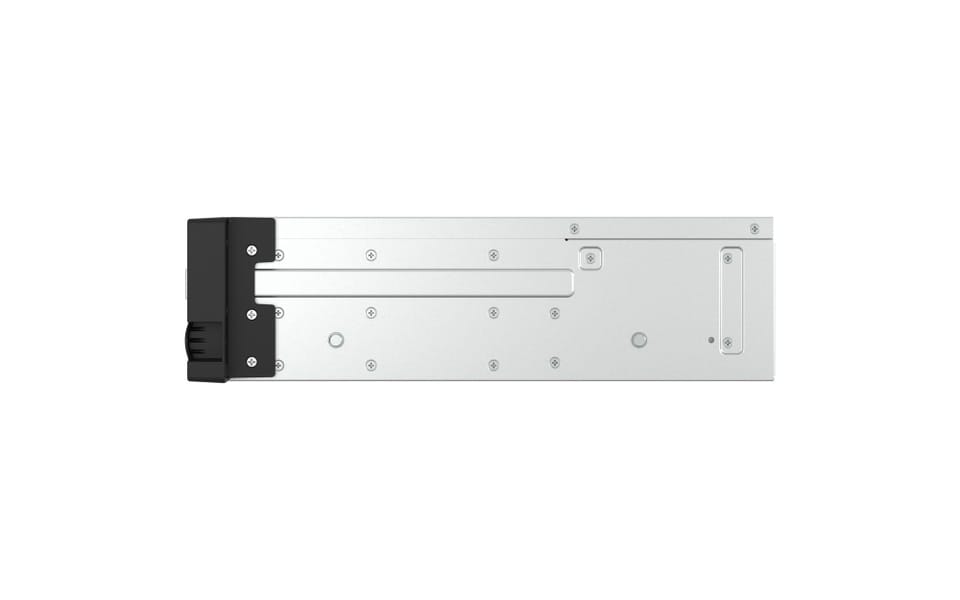

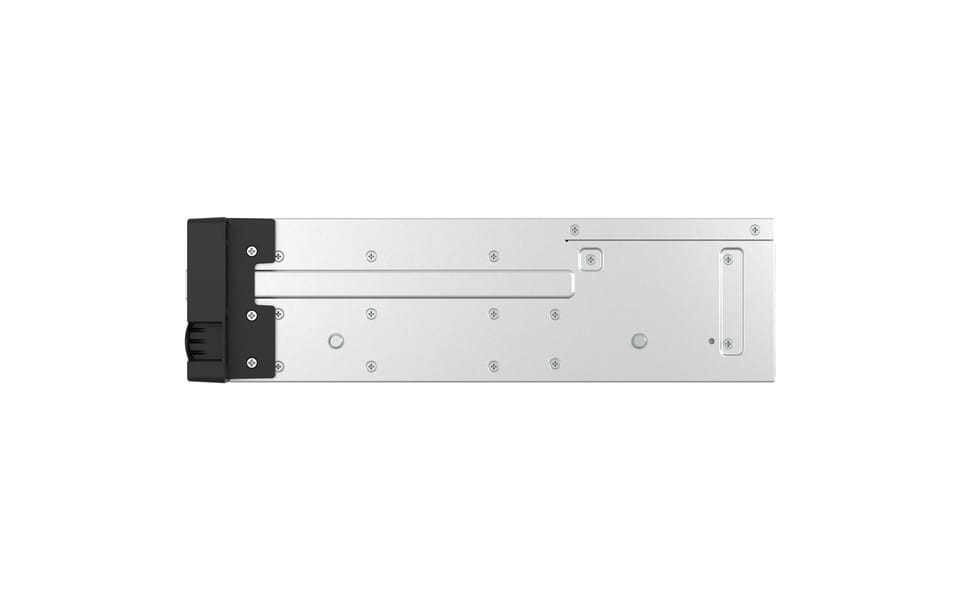

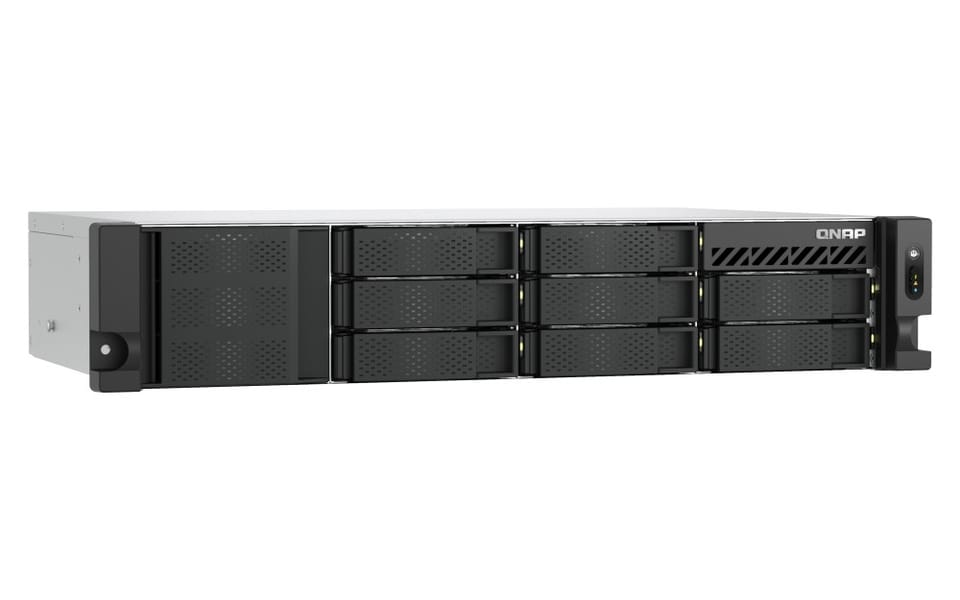

Qnap TS-855eU-8G, 2U, 8 x 2.5"/3.5" SATA, Intel Atom C5125 8C/8T, 8 GB SODIMM DDR4 (max. 64GB ), 2 x 2.5GbE, Single PSU
This product is not available
- Availability:
- expected delivery
- Brand:
- QNAP
- Product code:
- 4711103083376
Share this product:
Specification
| Ac input voltage: | 100 - 240 V |
|---|---|
| Access control list (acl): | Yes |
| Backup features: | USB drive, iSCSI LUN |
| Backup function: | Yes |
| Browser supported: | Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version) |
| Built-in ftp server: | Yes |
| Buzzer: | Yes |
| Cables included: | AC, LAN (RJ-45) |
| Chassis type: | Rack (2U) |
| Cooling type: | Active |
| Depth: | 297.4 mm |
| Device class: | Home & Home Office |
| Dhcp server: | Yes |
| Disk roaming: | Yes |
| Dynamic dns (ddns): | Yes |
| Ecc supported by processor: | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 100, 2500 Mbit/s, 10, 1000 Mbit/s |
| Fan diameter: | 6 cm |
| Fan voltage: | 12 V |
| Fiber optic connector: | MTP |
| Fibre channel: | Yes |
| Flash memory: | 5000 MB |
| Height: | 88.6 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Installed storage drive type: | No |
| Internal memory: | 8 GB |
| Internal memory type: | DDR4 |
| Iscsi support: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Linux operating systems supported: | CentOS 7.0, Ubuntu 14.04, Yes |
| Mac operating systems supported: | Mac OS X 10.10 Yosemite, Yes |
| Management protocols: | SNMP V2, V3 |
| Maximum ram supported: | 64 GB |
| Memory form factor: | SO-DIMM |
| Memory slots: | 2x SO-DIMM |
| Number of fans: | 3 fan(s) |
| Number of m.2 (m & b) slots: | 2 |
| Number of power supply units: | 1 |
| Number of processors installed: | 1 |
| Number of screws: | 56 |
| Number of storage drives supported: | 8 |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | QuTS hero |
| Operating system version: | h5.0.1 |
| Operating temperature (t-t): | 0 - 40 °C |
| Other operating systems supported: | IBM AIX 7.1, Solaris 10 |
| Pci express x4 (gen 3.x) slots: | 2 |
| Power cables quantity: | 1 |
| Power consumption (sleep): | 49.799 W |
| Power consumption (typical): | 79.113 W |
| Power supply location: | Built-in |
| Power supply unit (psu) capacity: | 250 W |
| Processor cache: | 9 MB |
| Processor cores: | 8 |
| Processor family: | Intel Atom® |
| Processor frequency: | 2.8 GHz |
| Processor manufacturer: | Intel |
| Processor model: | C5125 |
| Processor threads: | 8 |
| Product colour: | Black |
| Quick installation guide: | Yes |
| Raid levels: | 1, 5, 0, JBOD, 10, 60, 50 |
| Raid rebuild: | Yes |
| Raid support: | Yes |
| Reset button: | Yes |
| S.m.a.r.t. support: | Yes |
| Security algorithms: | AES, HTTPS, FIPS 140, SSH |
| Server operating systems supported: | Windows Server 2012, Windows Server 2019, Windows Server 2012 R2, Windows Server 2016, Windows Server 2008 R2 |
| Share folder: | CIFS/SMB |
| Snapshot: | Yes |
| Storage drive sizes supported: | 2.5, 3.5" |
| Storage drives installed: | No |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported file systems: | ext4, FAT32, ext3, NTFS, HFS+, ZFS, exFAT |
| Supported network protocols: | IPv4, IPv6 |
| Supported storage drive interfaces: | Serial ATA III, Serial ATA II |
| Supported storage drive types: | HDD & SSD |
| System log: | Yes |
| Thermal design power (tdp): | 50 W |
| Type: | SAN |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb copy function: | Yes |
| Usb port: | Yes |
| Wake-on-lan ready: | Yes |
| Weight: | 7.61 kg |
| Width: | 432 mm |
| Windows operating systems supported: | Windows 11, Windows 7, Windows 10, Windows 8 |
